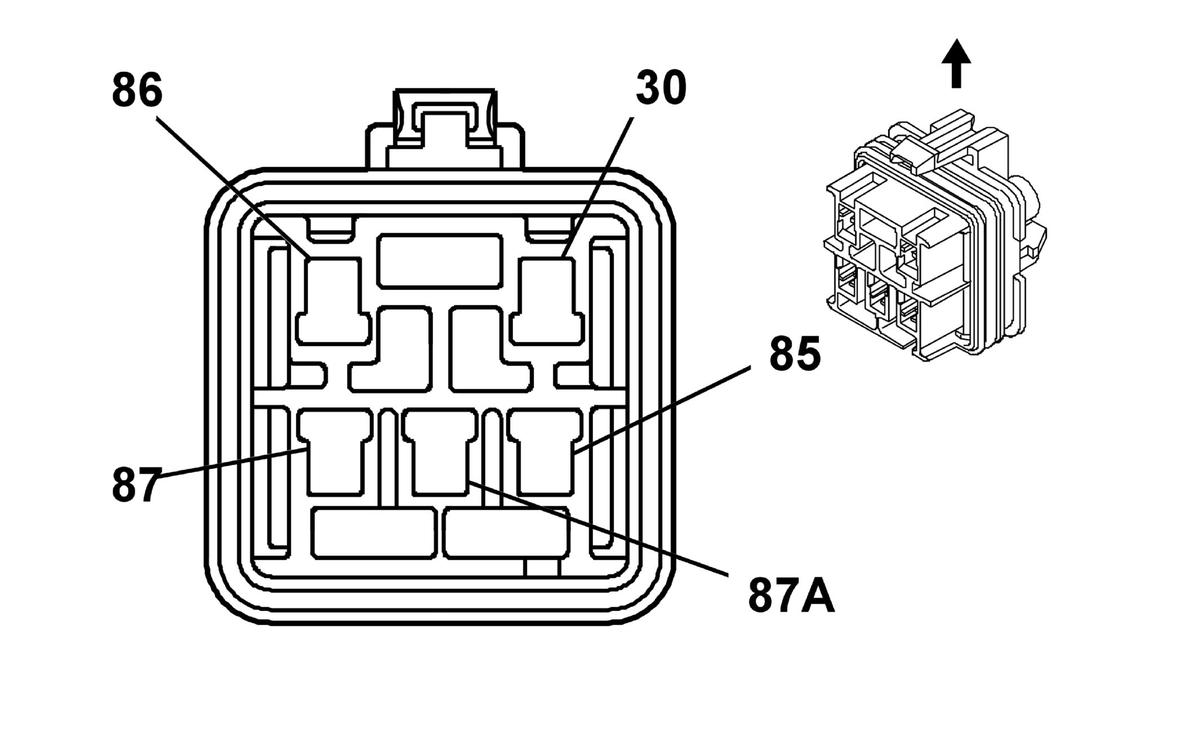

Rear Window Washer Fluid Pump Relay (Wagon) Connector End View
Courtesy of GENERAL MOTORS CORP. Rear Window Washer Fluid Pump Relay (Wagon)
| Pin |
Wire |
Circuit |
Function |
| 30 |
1 D-GN |
392 |
Rear Window Washer Pump Control |
| 85 |
0.8 D-BU |
298 |
Rear Window Washer Pump Control |
| 86 |
0.35 L-GN |
2270 |
Rear Window Washer Relay Control |
| 87 |
0.8 RD/WH |
5040 |
Battery Positive Voltage |
| 87A |
0.8 BK |
1050 |
Ground |
| 0.8 BK |
1050 |
Ground |
Connector Part Information
- Harness Type: Engine
- OEM Connector: 12110539
- Service Connector: 15306045
- Description: 5-Way F Metri-Pack 280 Series, Flexlock (BK)
|
Terminal Part Information
- Pins: 30, 87, 87A
- Terminated Lead: Pending
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12110845/4
- Core/Insulation Crimp: Not Available
- Pin: 85, 86
- Terminated Lead: Pending
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12110847/4
- Core/Insulation Crimp: E/5
|
