Shift Lock Control Wiring Schematics

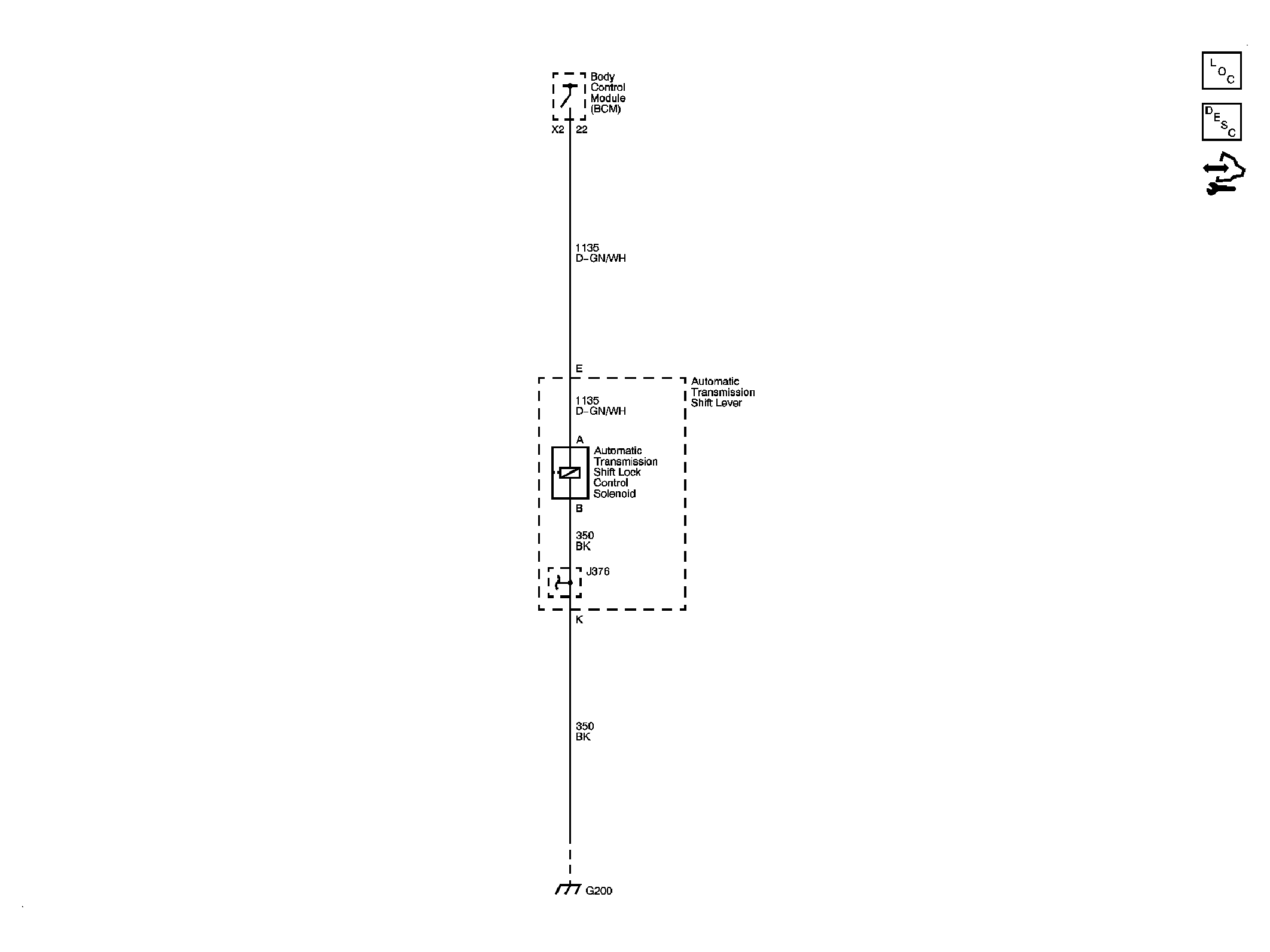

Fig 1: MYB Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
