Battery Current Sensor: Locations

Luggage Compartment/Rear of Vehicle Component Views

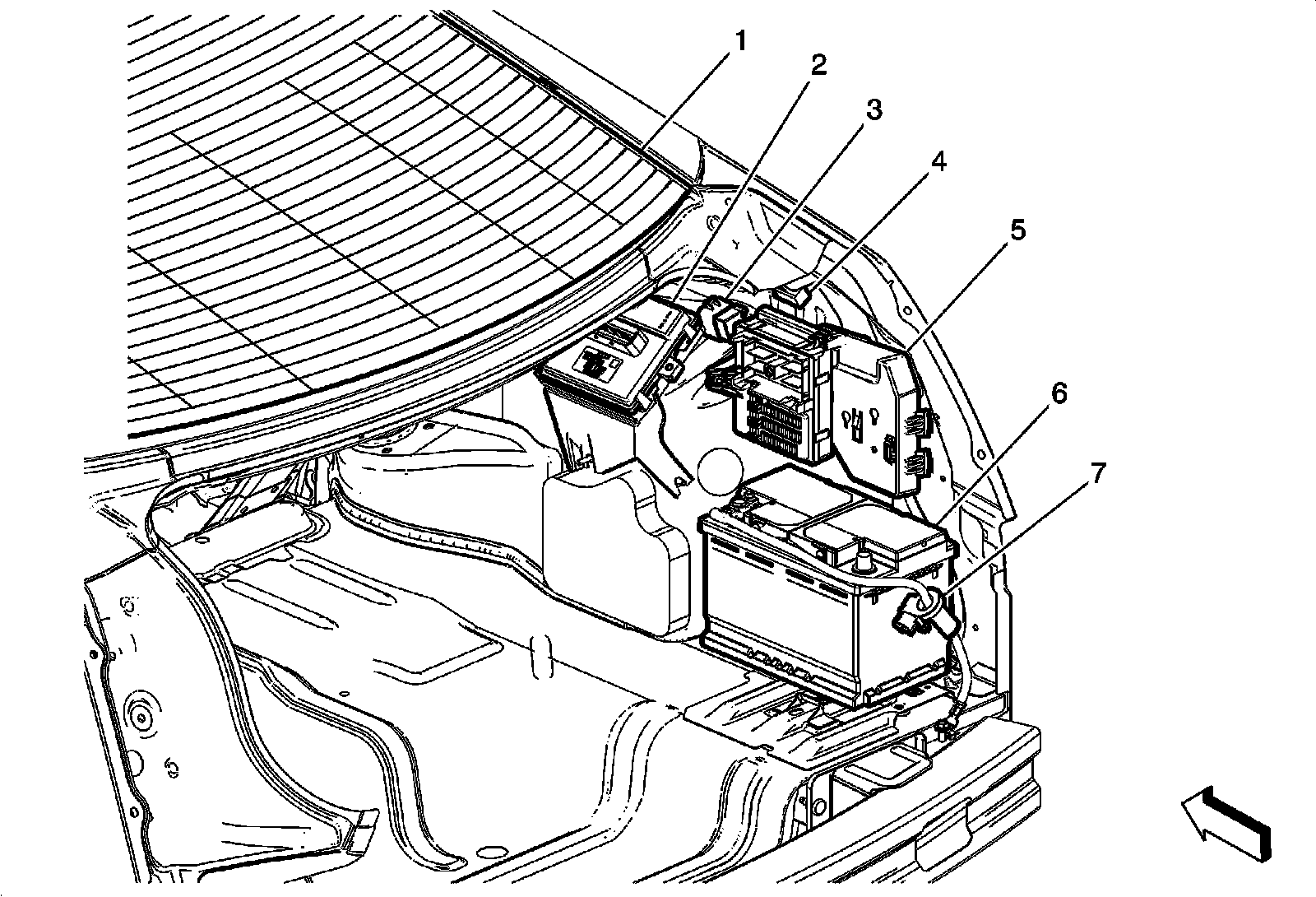

Right Side of Luggage Compartment Components (Coupe)




1 - Rear Window Defogger Grid
2 - Fuel Pump Control Module
3 - Rear Window Defogger Relay
4 - Fuse Holder
5 - Fuse Block - Rear
6 - Battery
7 - Battery Current Sensor
