Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

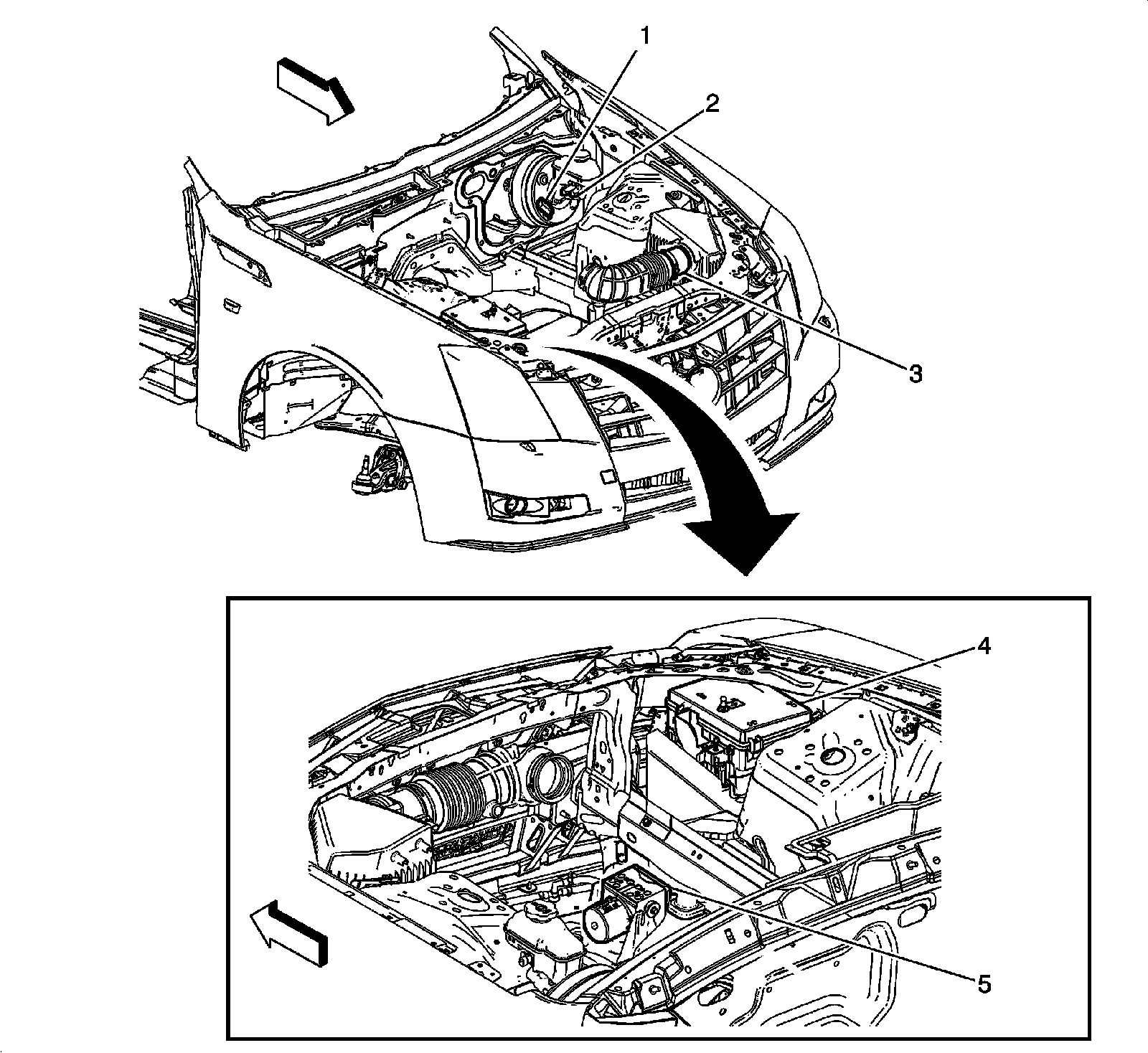

Engine Compartment Components (LF1 or LLT)




1 - Brake Booster Vacuum Sensor
2 - Brake Fluid Level Switch
3 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
4 - Fuse Block - Underhood
5 - Electronic Brake Control Module (EBCM)
