Battery Current Sensor: Locations

Luggage Compartment/Rear of Vehicle Component Views

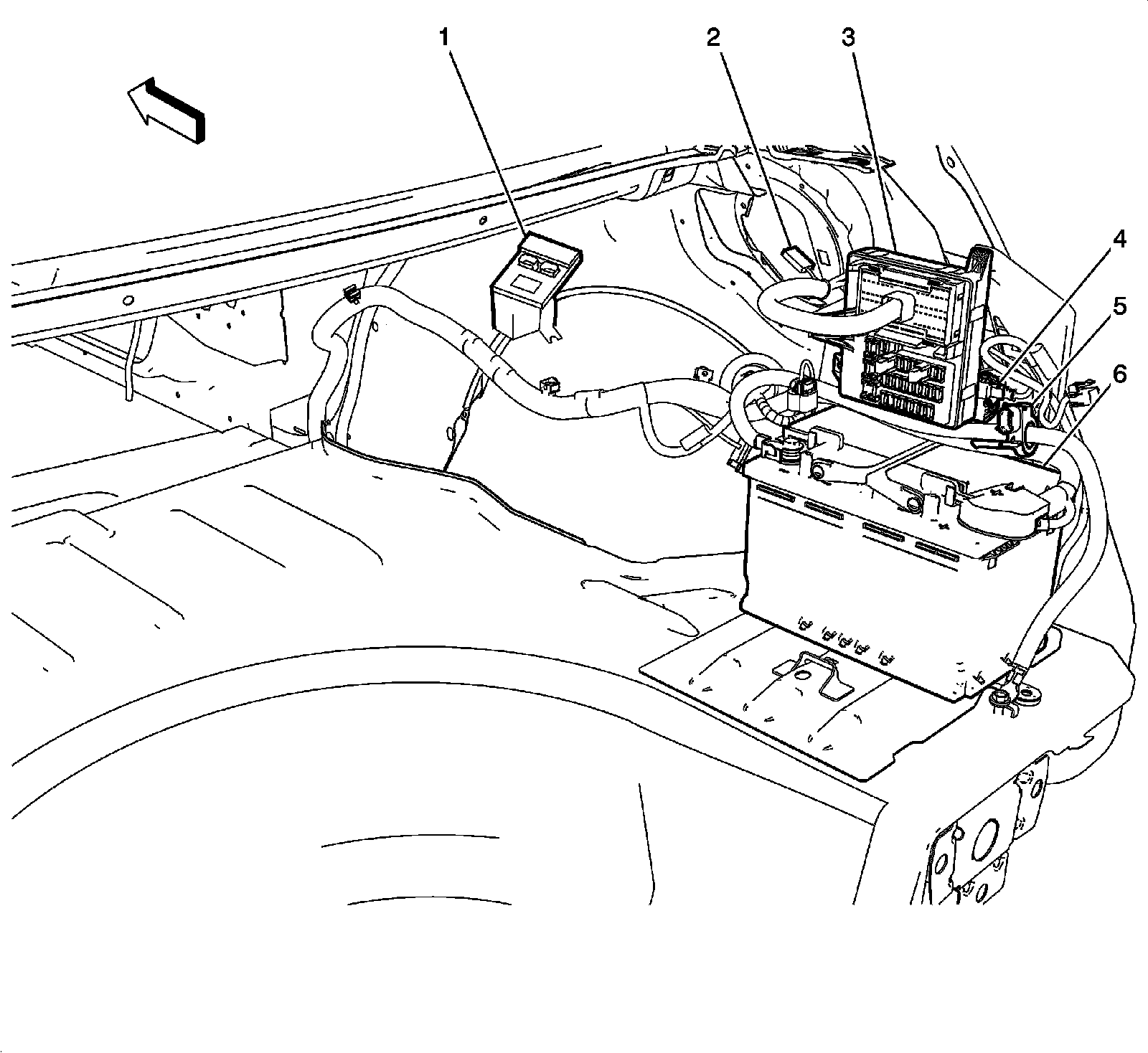

Luggage Compartment Components - Right (Sedan)




1 - Fuel Pump Flow Control Module (LSA)
2 - Data Link Resistor (LSA)
3 - Fuse Block - Rear
4 - Fuel Door Release Actuator (N08)
5 - Battery Current Sensor
6 - Battery
