Engine Components - Left Front

Powertrain Component Views

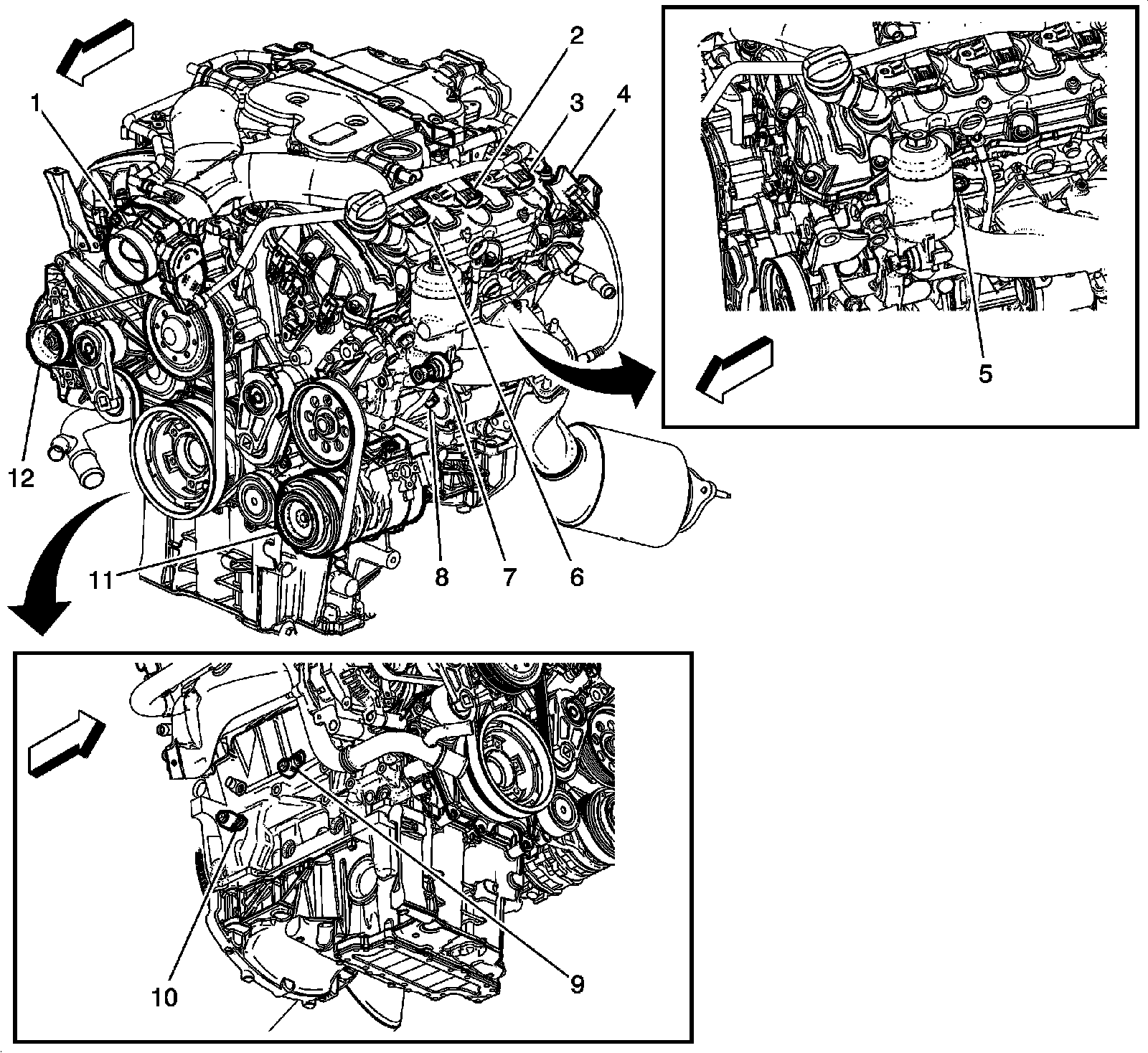

Engine Components - Left Front (LF1 or LLT)




1 - Throttle Body
2 - Ignition Coil 4
3 - Ignition Coil 6
4 - High Pressure Fuel Pump
5 - Engine Coolant Temperature (ECT) Sensor
6 - Ignition Coil 2
7 - Engine Oil Pressure (EOP) Sensor
8 - Knock Sensor (KS) 2
9 - Knock Sensor (KS) 1
10 - Crankshaft Position (CKP) Sensor
11 - A/C Compressor Clutch
12 - Generator
