Engine Compartment Components - Right Side




Front of Vehicle/Engine Compartment Component Views

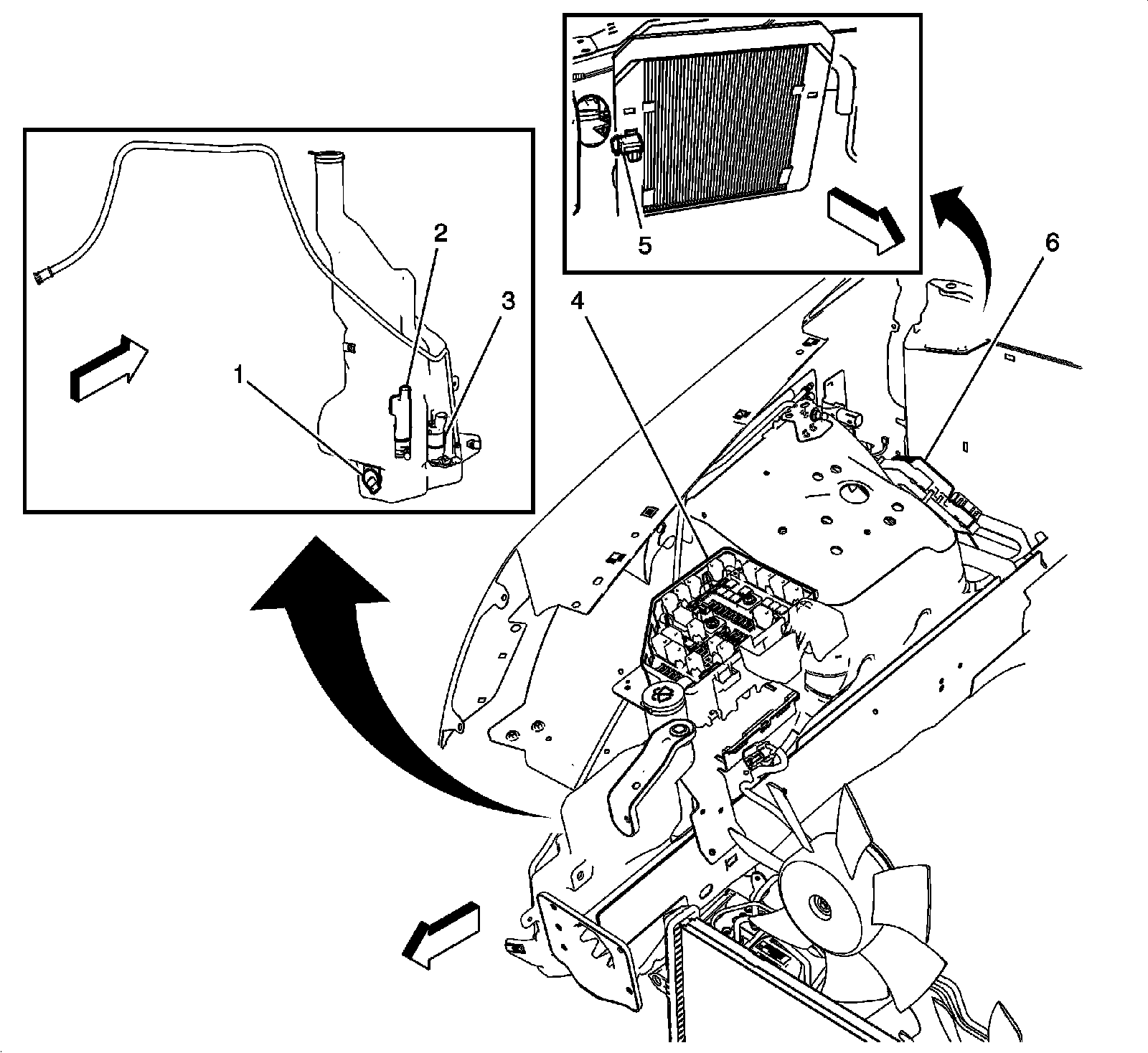

Engine Compartment Components - Right Side




1 - Windshield Washer Fluid Level Switch
2 - Headlamp Washer Fluid Pump (CE4)
3 - Windshield Washer Fluid Pump
4 - Fuse Block - Underhood
5 - Air Quality Sensor (K14)
6 - Engine Control Module (ECM) (LSA)
