Heated Steering Wheel Module (N30)

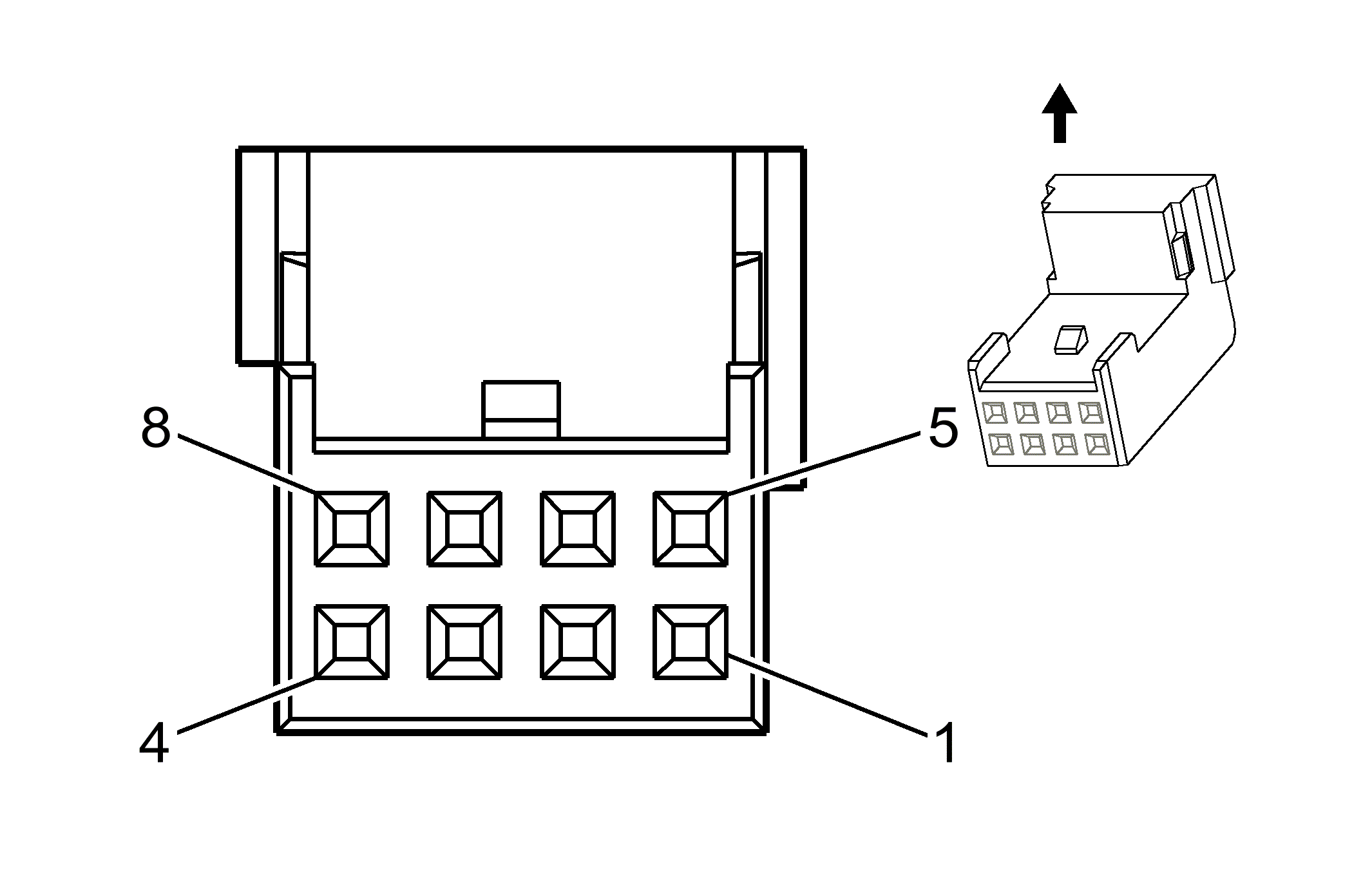

Fig 1: Heated Steering Wheel Module (N30) Connector End View
GM901282Courtesy of GENERAL MOTORS COMPANY
Heated Steering Wheel Module (N30)

Pin Wire Circuit Function
1 0.35 BK 350 Ground
2 - - Not Used
3 0.35 BK/WH 5883 Heated Steering Wheel Switch LED Control
4 1 RD 41 Ignition 3 Voltage
5 0.35 GY 5886 Heated Steering Wheel Sensor Signal
6 0.35 RD/WH 5884 Heated Steering Wheel High Control
7 0.35 YE 5888 Heated Steering Wheel Switch Signal
8 - - Not Used
Connector Part Information
  • Harness Type: Steering Wheel
  • OEM Connector: 15327190
  • Service Connector: 88988407
  • Description: 8-Way F DUCON 0.8 Series (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
