Steering Wheel Heat Control Module Replacement

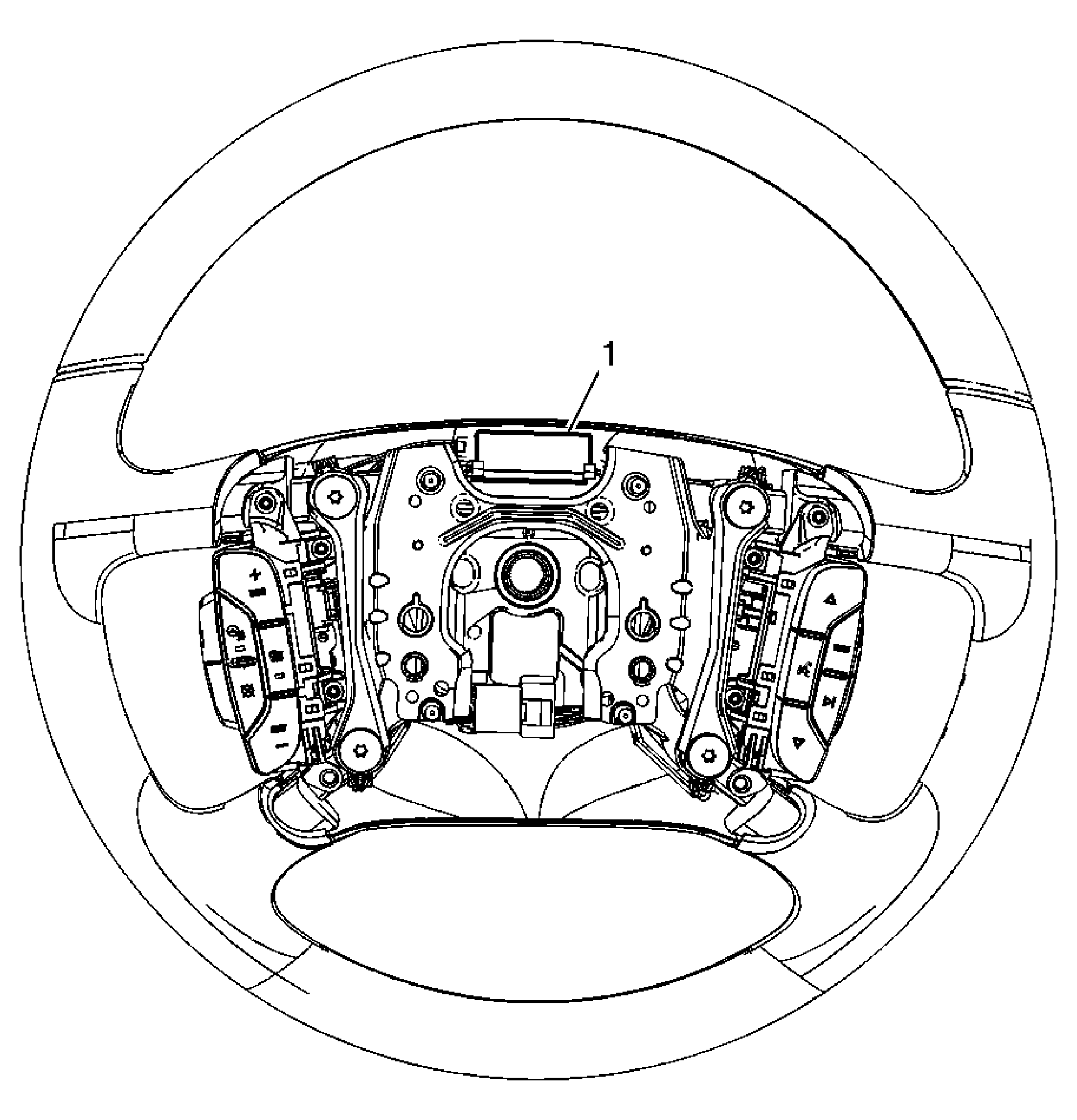

Fig 1: Steering Wheel Heat Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Heat Module Procedure Release the plastic arms retaining the steering wheel heat module and slide it forward past them. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .

Steering Wheel Heat Module

Procedure

Release the plastic arms retaining the steering wheel heat module and slide it forward past them.
Disconnect the electrical connector.
