Power Window Switch




Component Connector End Views

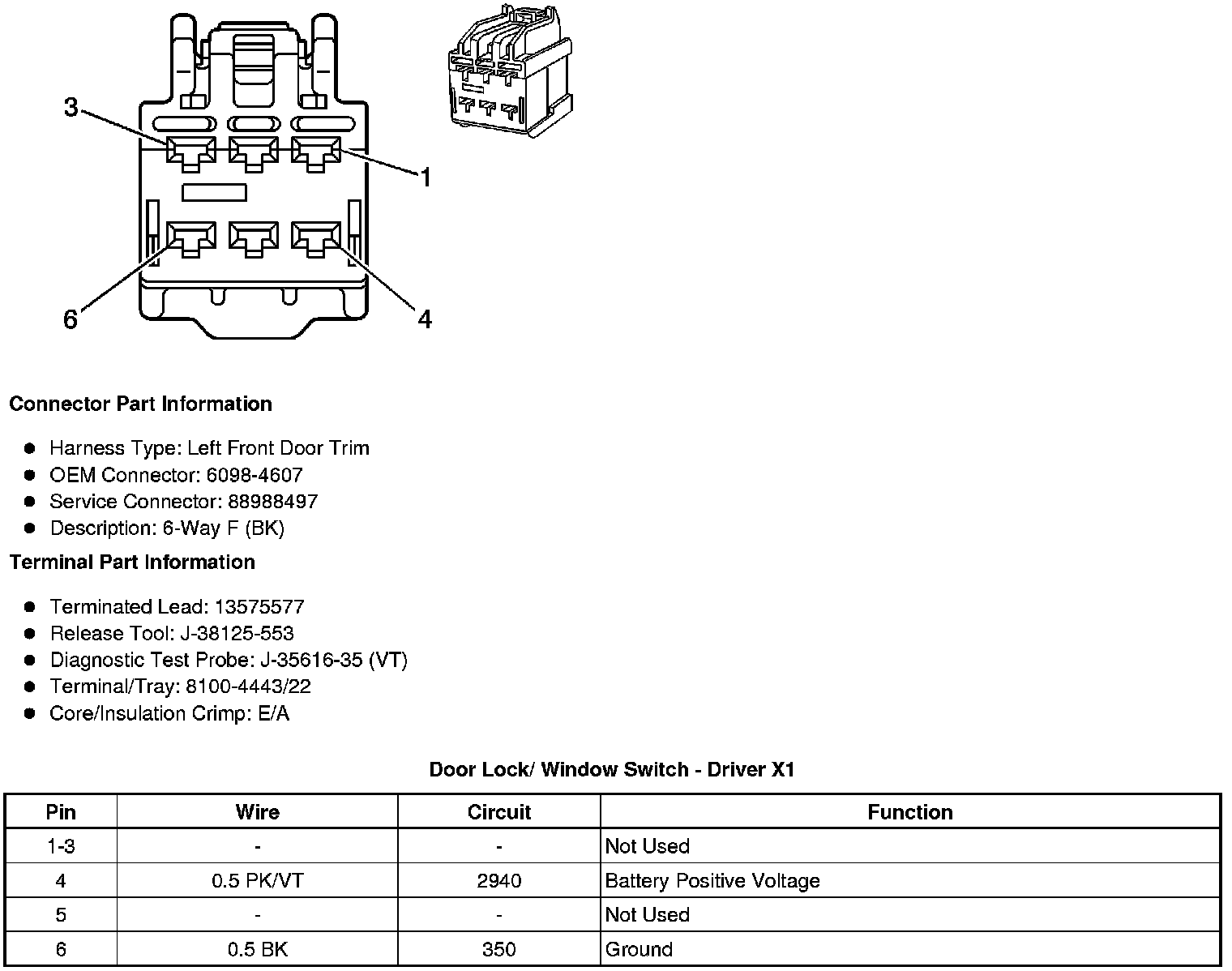

Door Lock/ Window Switch - Driver X1

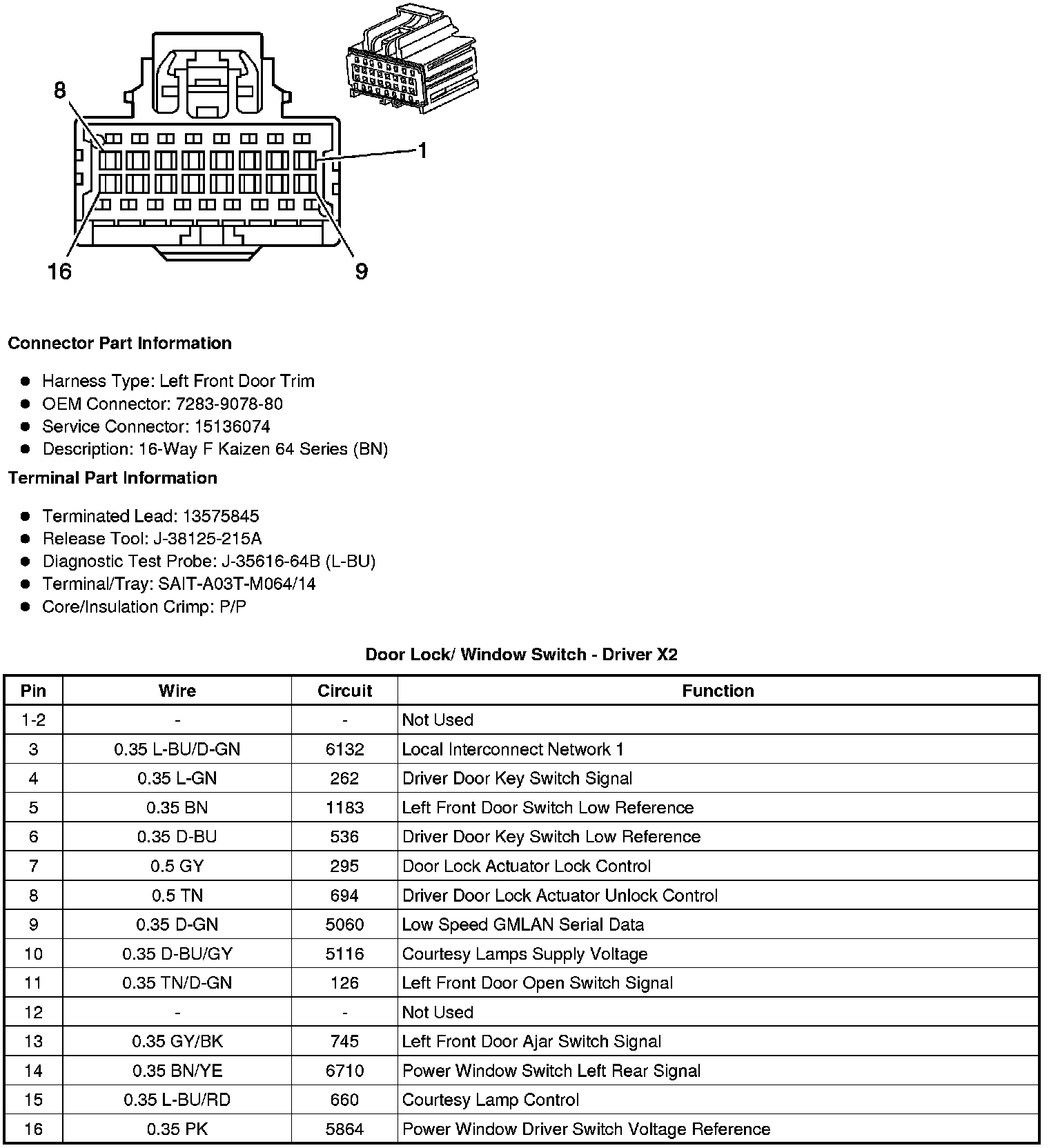

Door Lock/ Window Switch - Driver X2

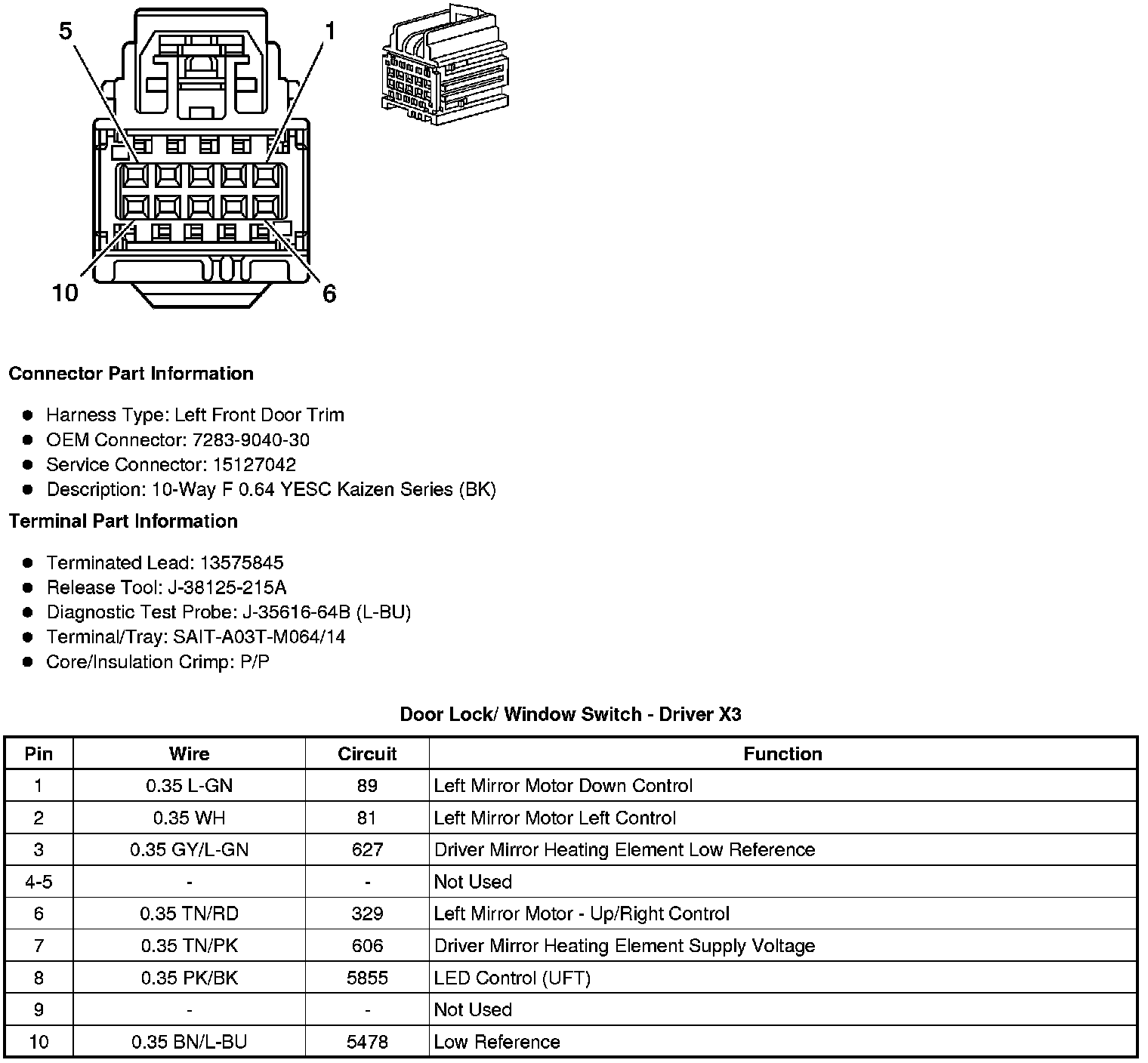

Door Lock/ Window Switch - Driver X3

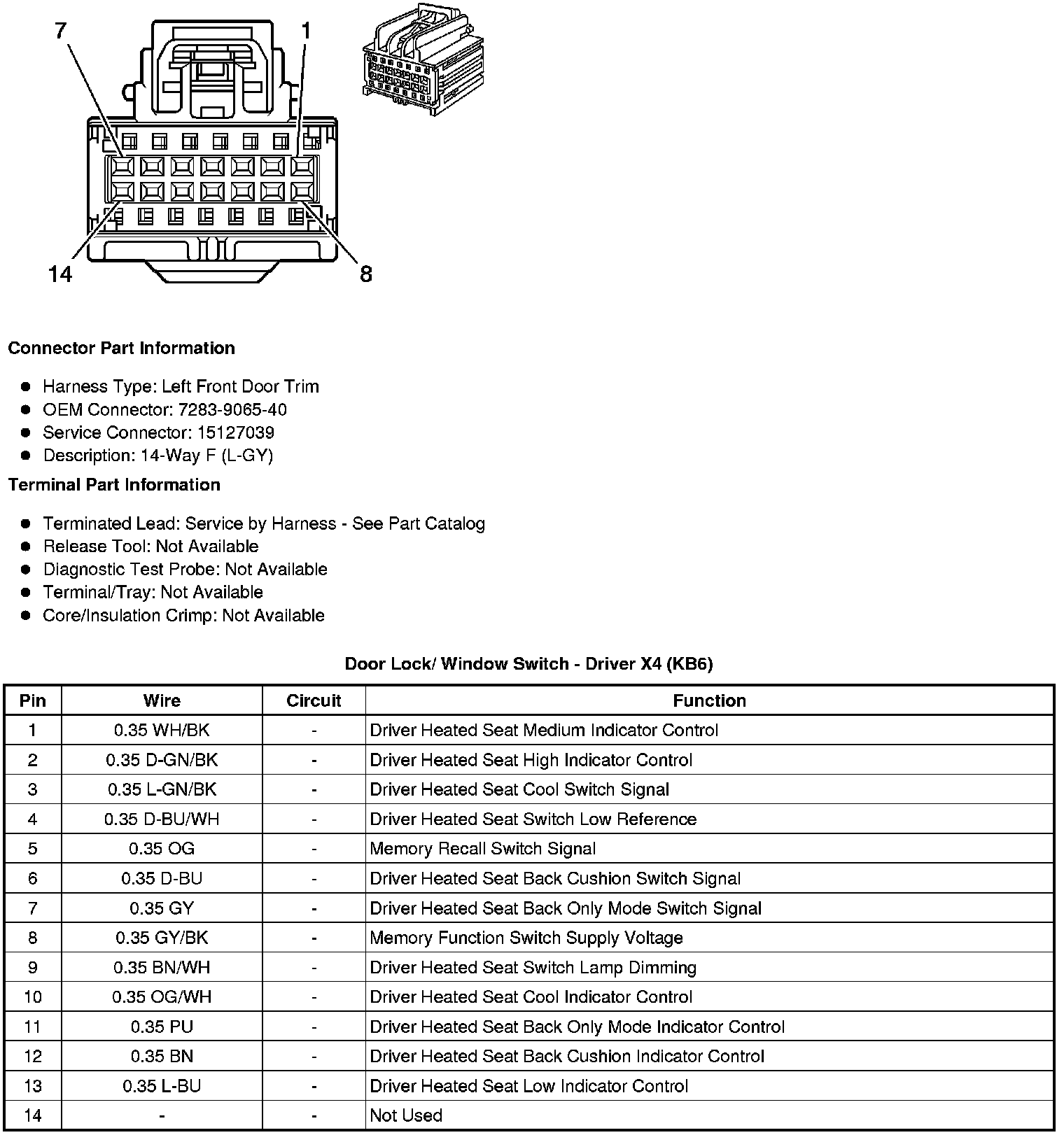

Door Lock/ Window Switch - Driver X4 (KB6)

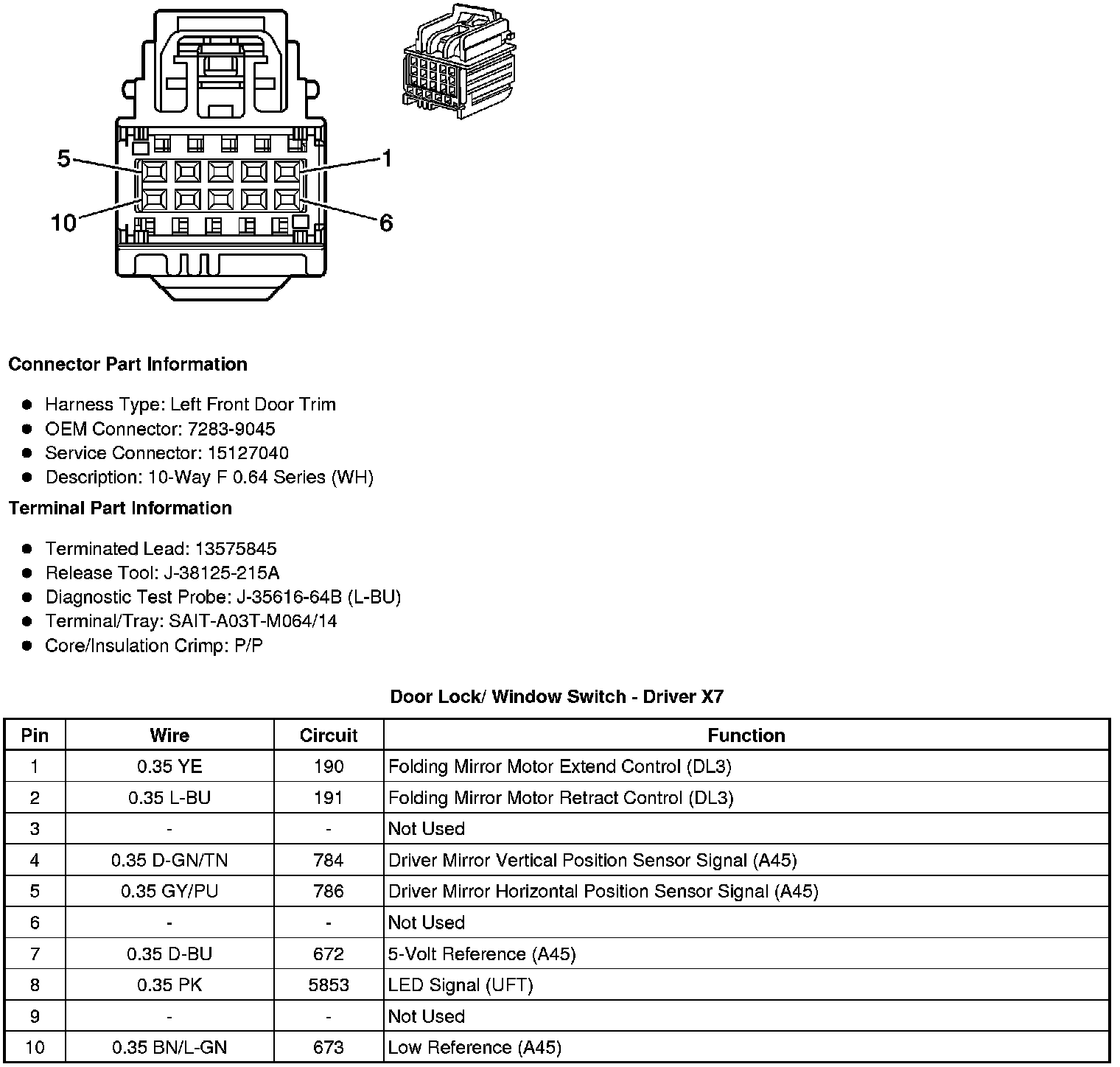

Door Lock/ Window Switch - Driver X7

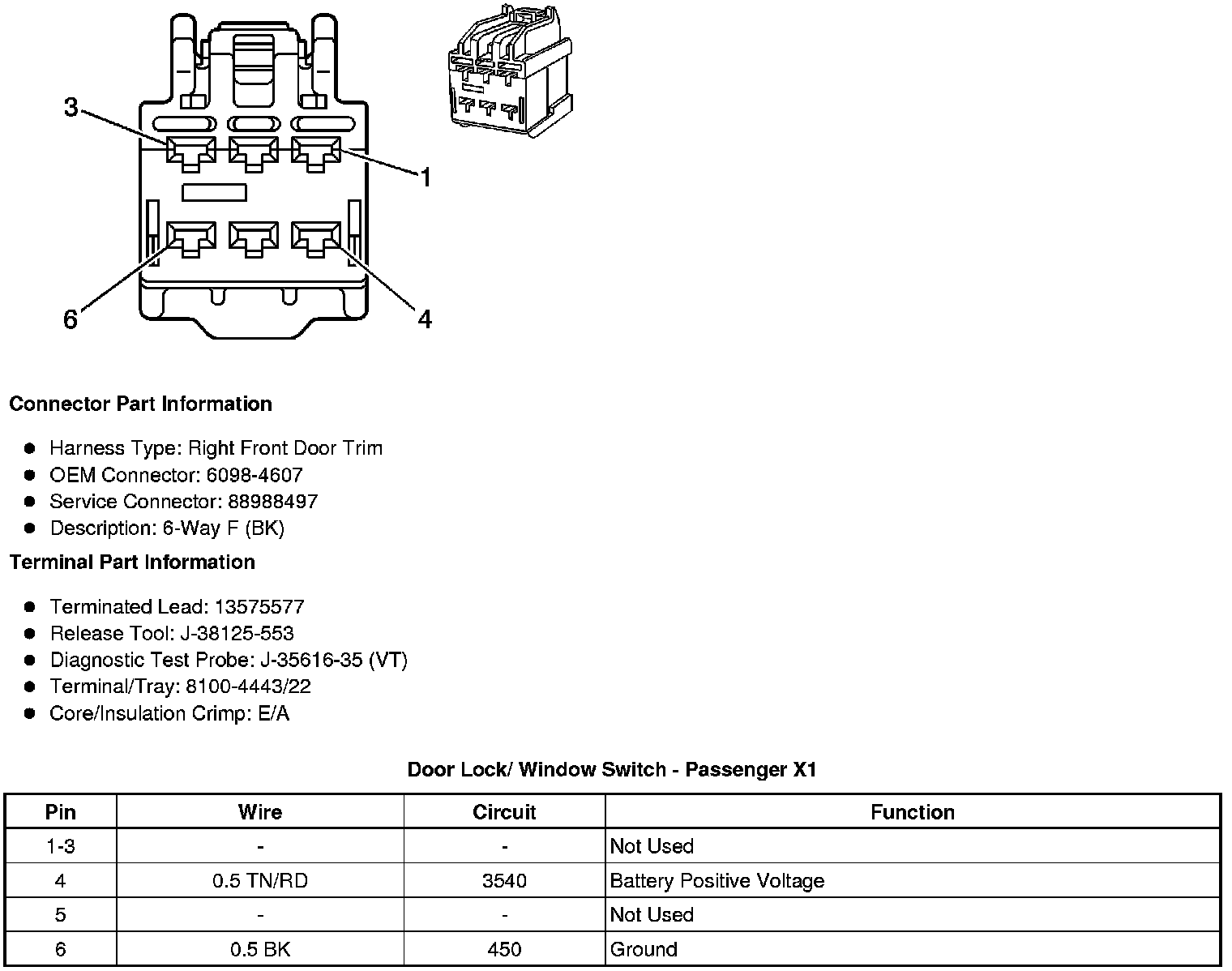

Door Lock/ Window Switch - Passenger X1

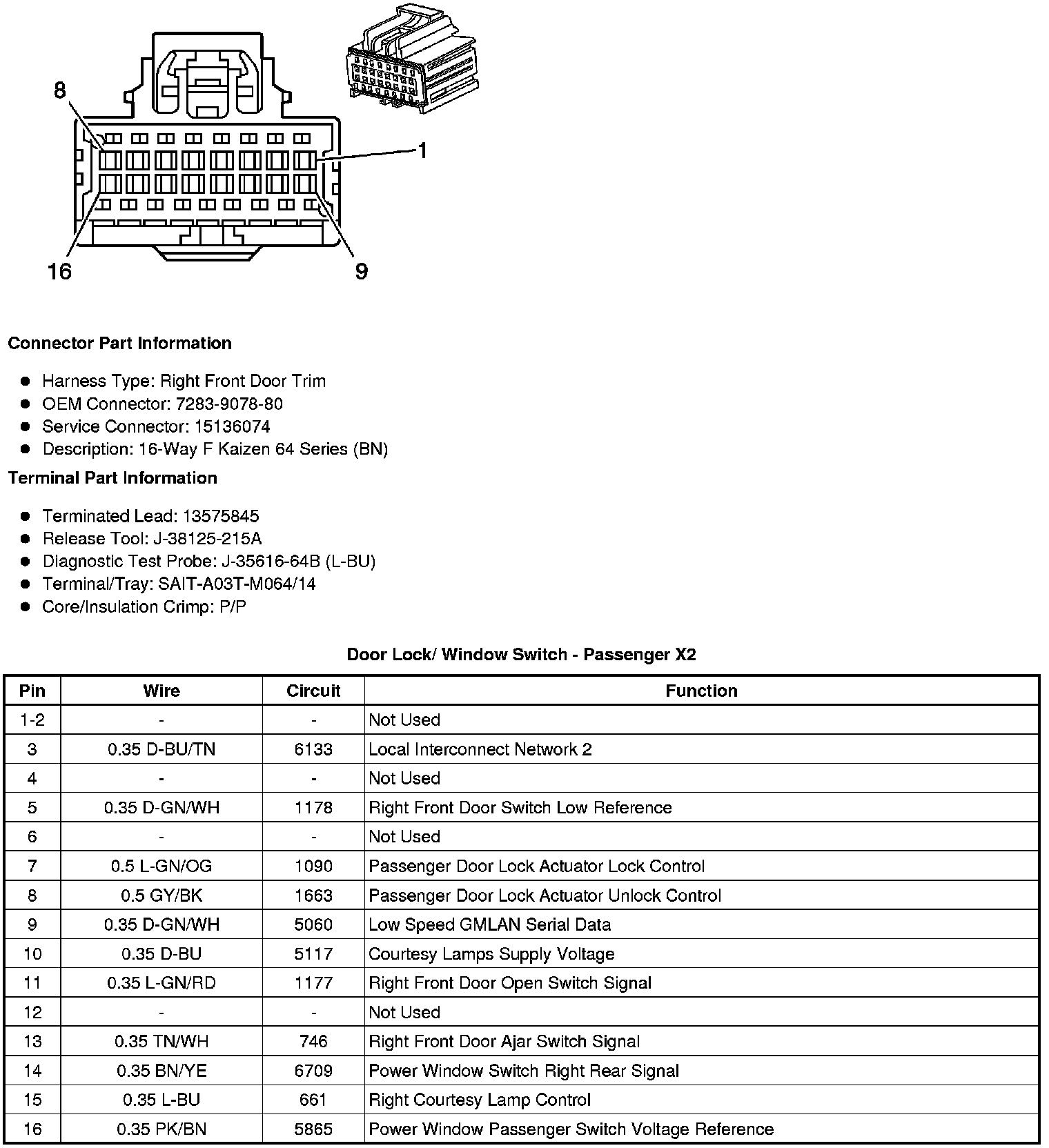

Door Lock/ Window Switch - Passenger X2

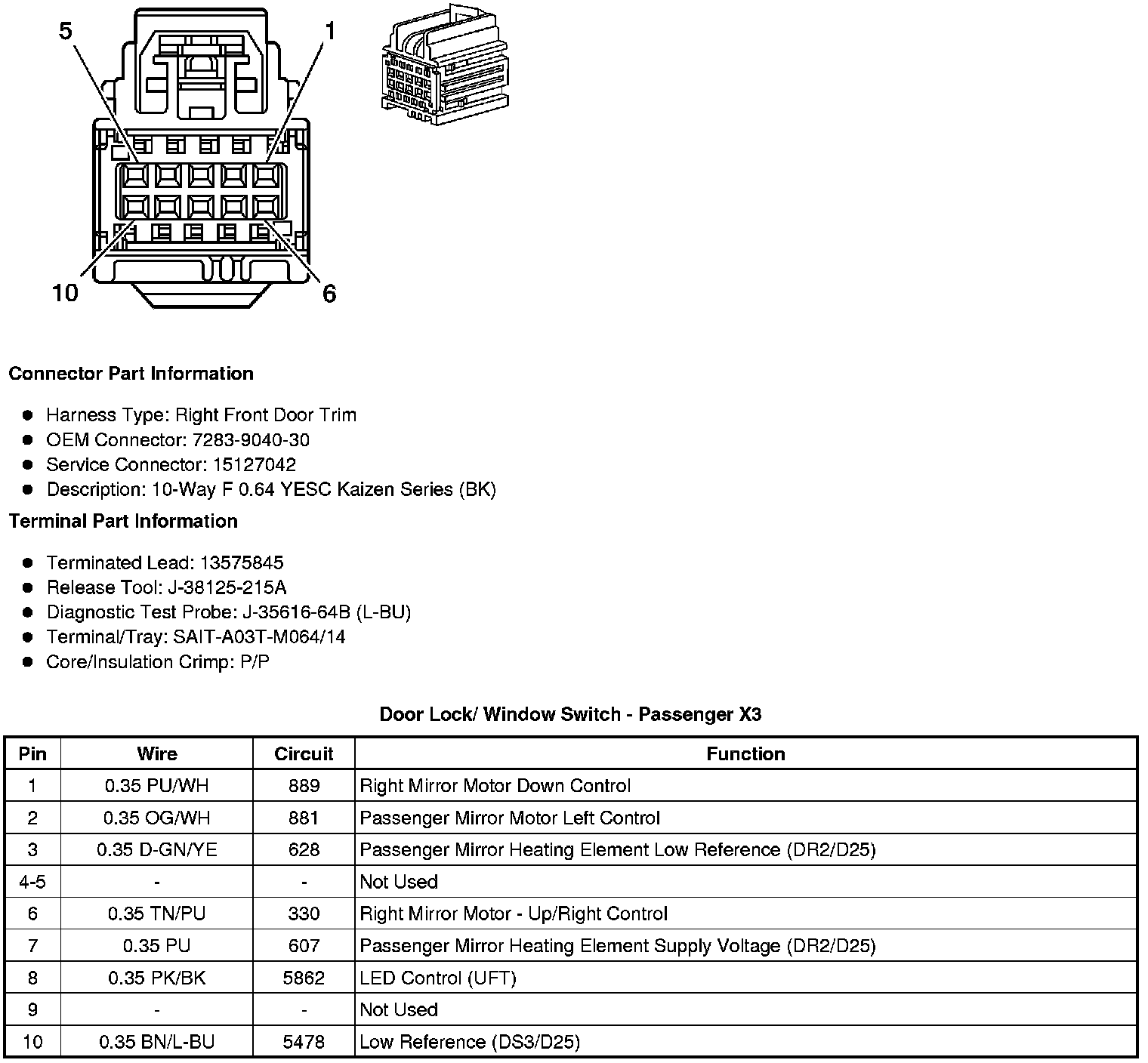

Door Lock/ Window Switch - Passenger X3

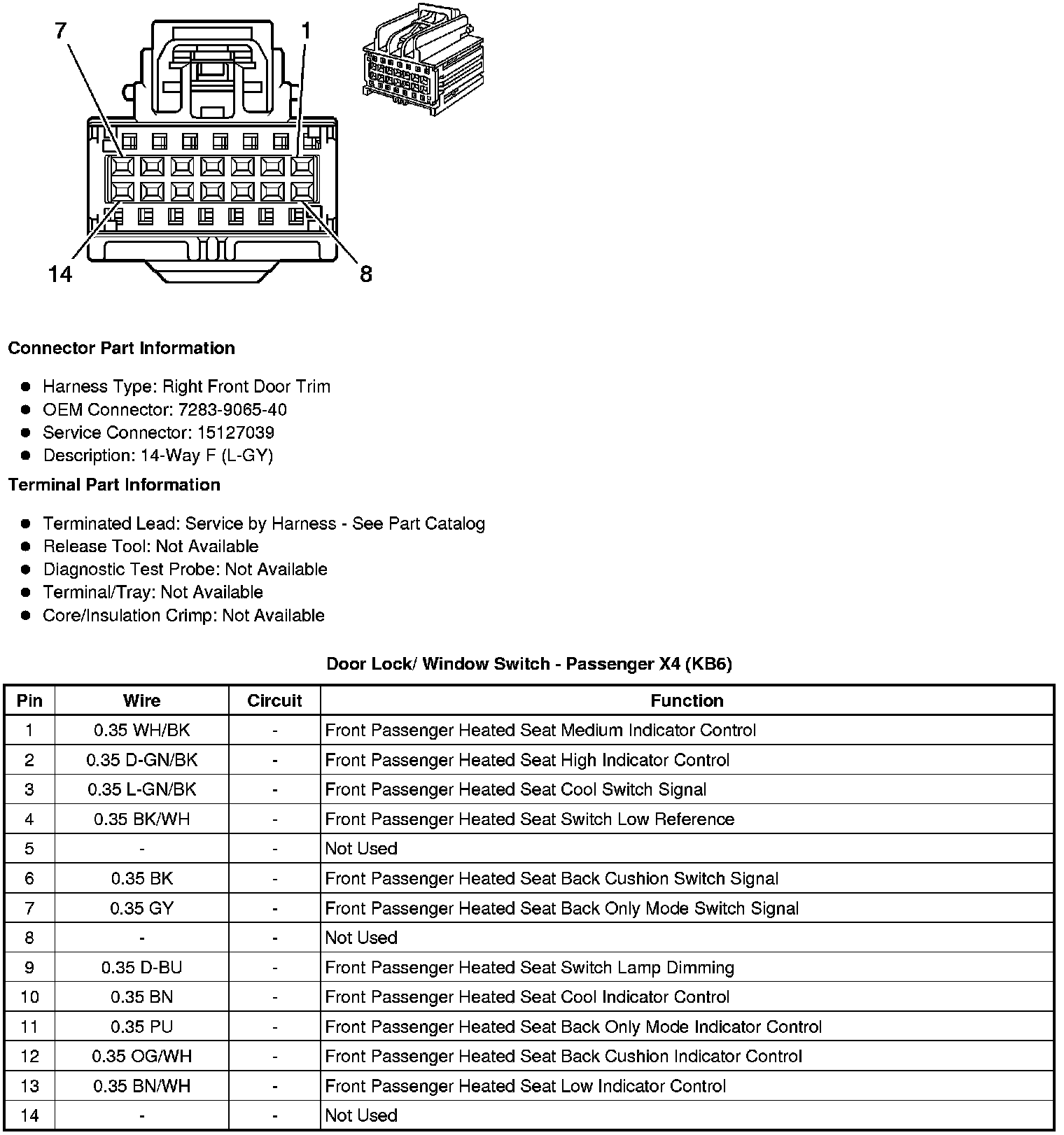

Door Lock/ Window Switch - Passenger X4 (KB6)

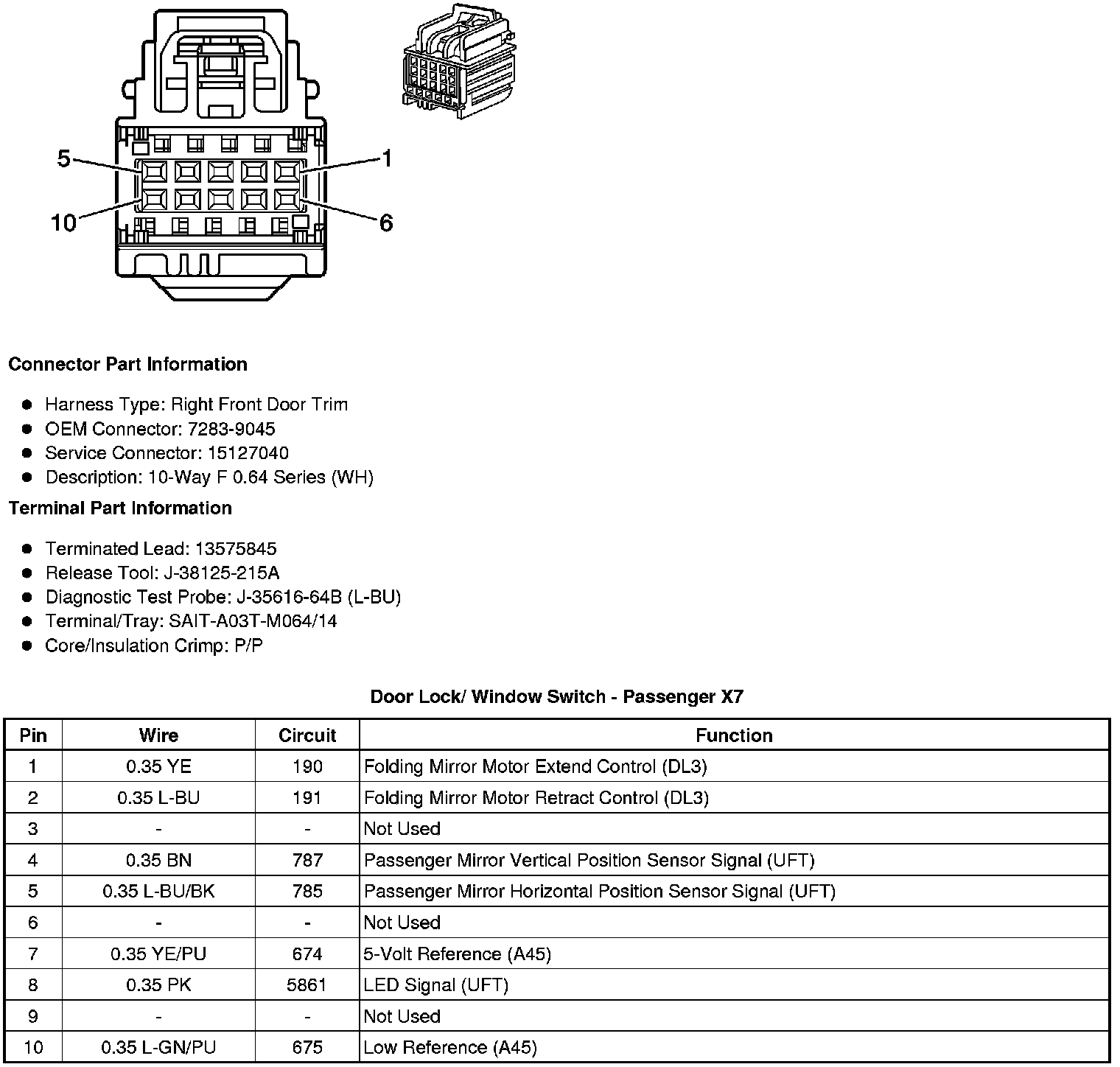

Door Lock/ Window Switch - Passenger X7






Window Switch - Left Rear Door

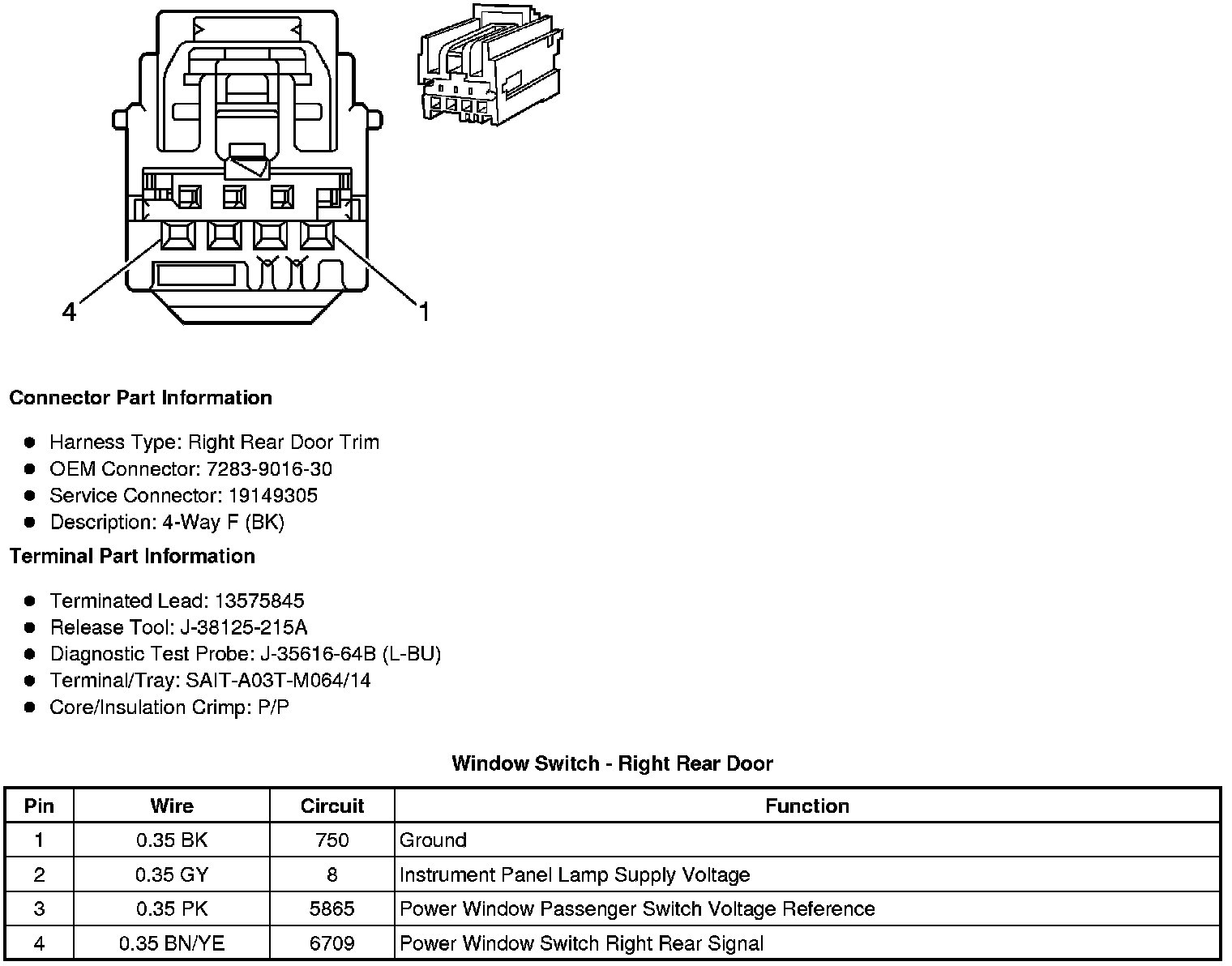

Window Switch - Right Rear Door
