Power, Ground, and Serial Data

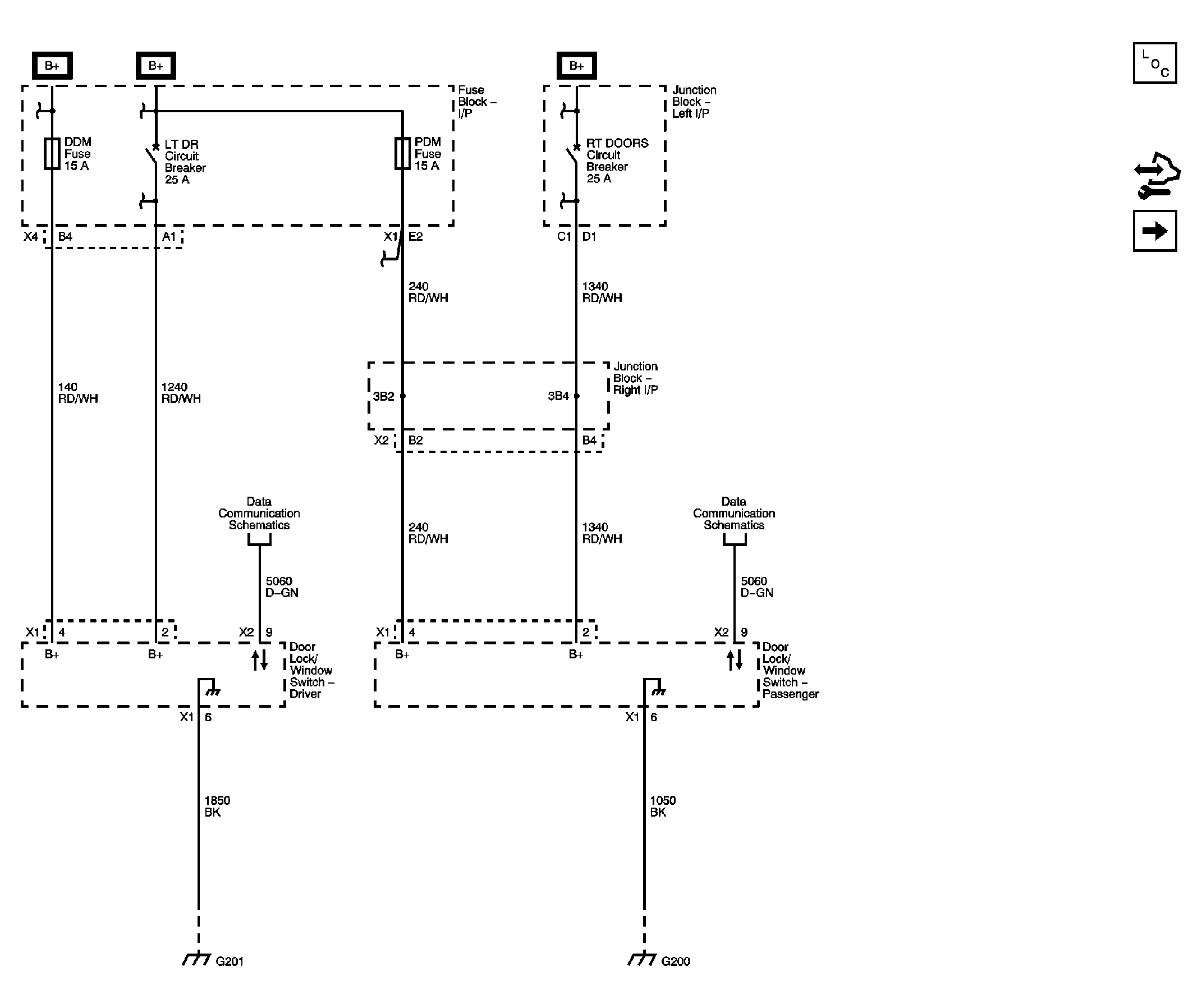

Fig 1: Power, Ground, and Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
