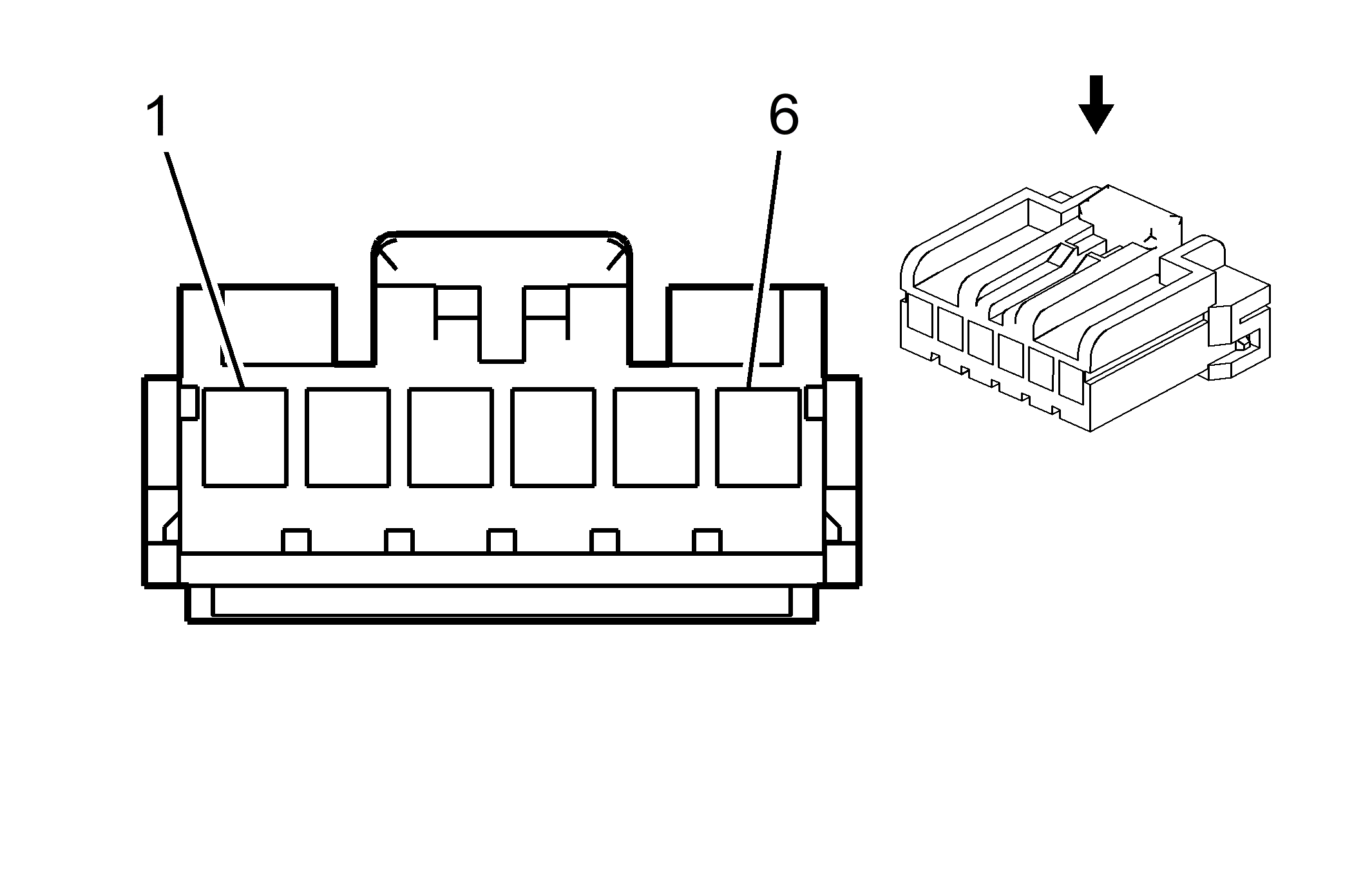

Electronic Adjustable Pedal (EAP) Assembly X1 (JF4)
Courtesy of GENERAL MOTORS CORP. Electronic Adjustable Pedal (EAP) Assembly X1 (JF4)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 TN |
6207 |
5-Volt Reference (AN3) |
| 2 |
0.5 PK |
5289 |
Adjustable Pedal Sensor Signal (AN3) |
| 3 |
0.5 GY |
6206 |
Low Reference (AN3) |
| 4 |
1 YE |
5129 |
Adjustable Pedal Motor Rearward Control |
| 5 |
1 PU |
5130 |
Adjustable Pedal Motor Forward Control |
| 6 |
- |
- |
Not Used |
Connector Part Information
- Harness Type: Brake/Clutch
- OEM Connector: 15477860
- Service Connector: 13574938
- Description: 6-Way F BFC 180 Series (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 13574938
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-33 (YE)
- Terminal/Tray: 173630-7/7
- Core/Insulation Crimp: Pins 1-3 - E/4
- Core/Insulation Crimp: Pins 4, 5 - E/A
|
