Accessory Power Outlet - I/P 1

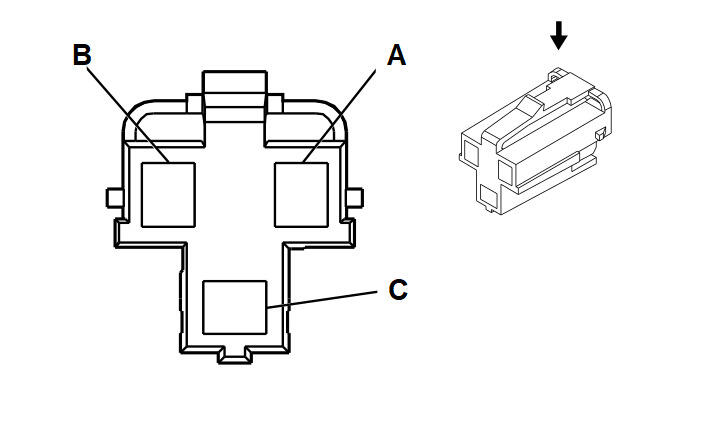

Fig 1: Accessory Power Outlet - I/P 1 Connector End View
GM362748Courtesy of GENERAL MOTORS CORP.
Accessory Power Outlet - I/P 1

Pin Wire Circuit Function
A 0.8 RD/WH 640 Battery Positive Voltage
B - - Not Used
C 0.8 BK 1050 Ground
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 12176836
  • Service Connector: 15305923
  • Description: 3-Way F Metri-Pack 280 Series (GY)
Terminal Part Information
  • Terminated Lead: 13575721
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: C/A
