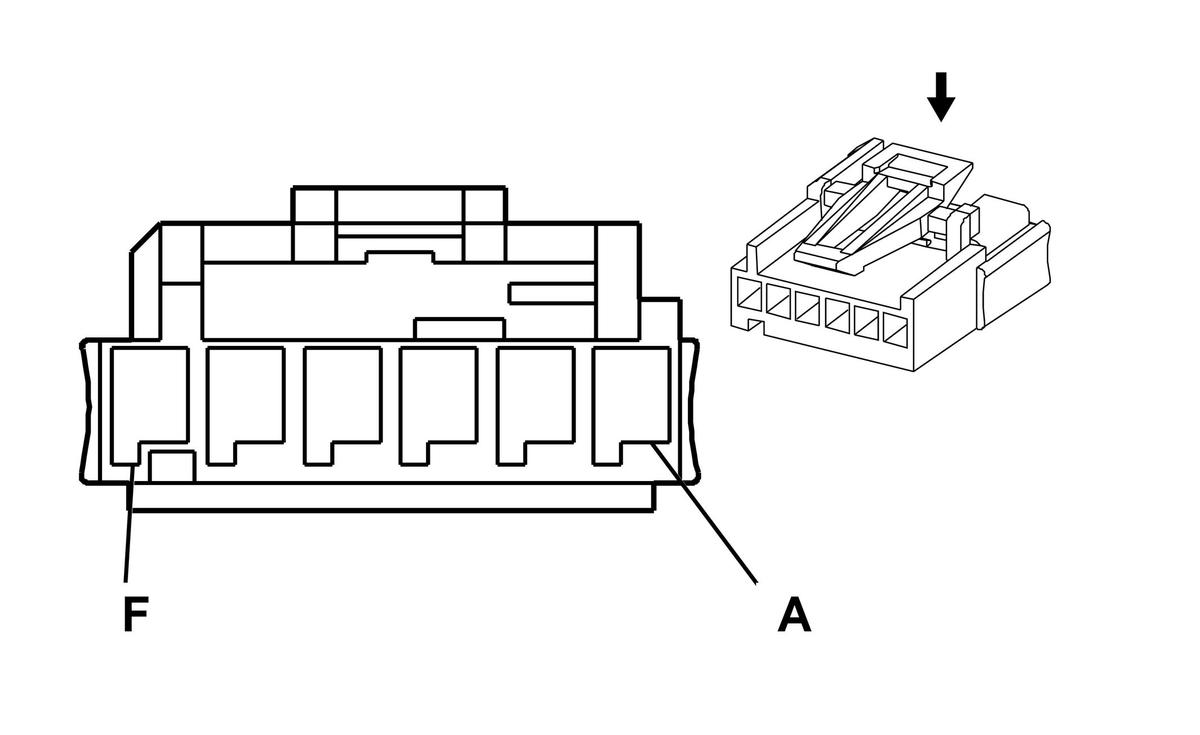

Control Solenoid Valve Assembly X2 (MYC, MYD or M99)
Courtesy of GENERAL MOTORS CORP. Control Solenoid Valve Assembly X2 (MYC, MYD or M99)
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 GY |
- |
Ground |
| B |
0.35 BK |
- |
Transmission Range Switch Signal P |
| C |
0.35 YE |
- |
Transmission Range Switch Signal C |
| D |
0.35 RD |
- |
Transmission Range Switch Signal B |
| E |
0.35 GN |
- |
Transmission Range Switch Signal A |
| F |
0.35 WH |
- |
Park/Neutral Switch Signal |
Connector Part Information
- Harness Type: Transmission
- OEM Connector: 15336500
- Service Connector: 89046635
- Description: 6-Way F Metri-Pack 150.2 Series (GN)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 89046635
- Release Tool: Not Available
- Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
