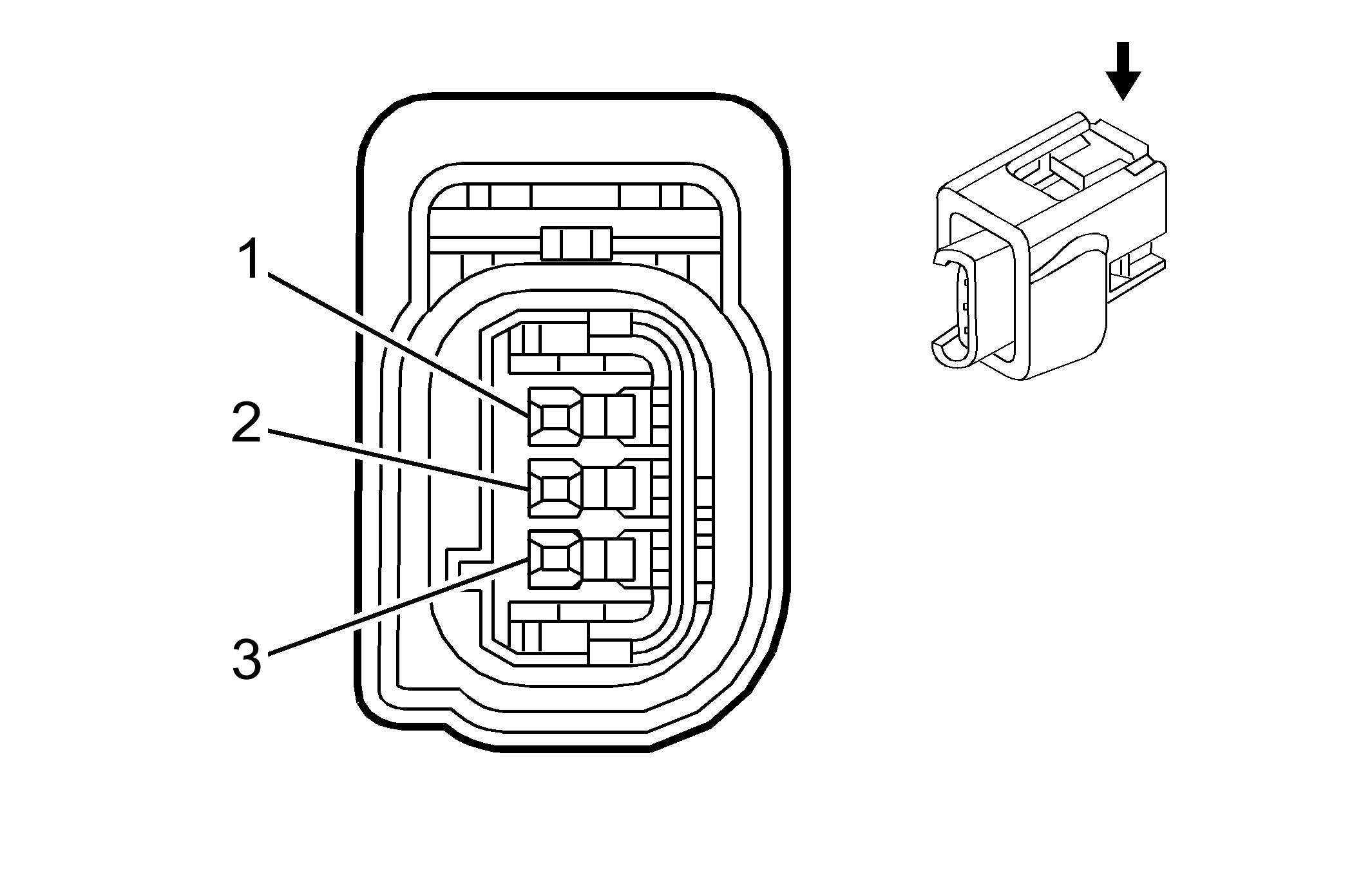

Electronic Adjustable Pedal (EAP) Assembly X2 (JF4)
Courtesy of GENERAL MOTORS CORP. Electronic Adjustable Pedal (EAP) Assembly X2 (JF4)
| Pin |
Wire |
Circuit |
Function |
| 1 |
WH |
- |
Reference Voltage |
| 2 |
L-GN |
- |
Position Signal |
| 3 |
BK |
- |
Signal Return |
Connector Part Information
- Harness Type: Adjustable Pedal Motor Assembly
- OEM Connector: Service by Assembly - See Part Catalog
- Service Connector: Service by Assembly - See Part Catalog
- Description: 3-Way F (BK)
|
Terminal Part Information
- Terminated Lead: Service by Component Assembly - See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Pending
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
|
