Module Power, Ground, Serial Data, and Front Blower Control

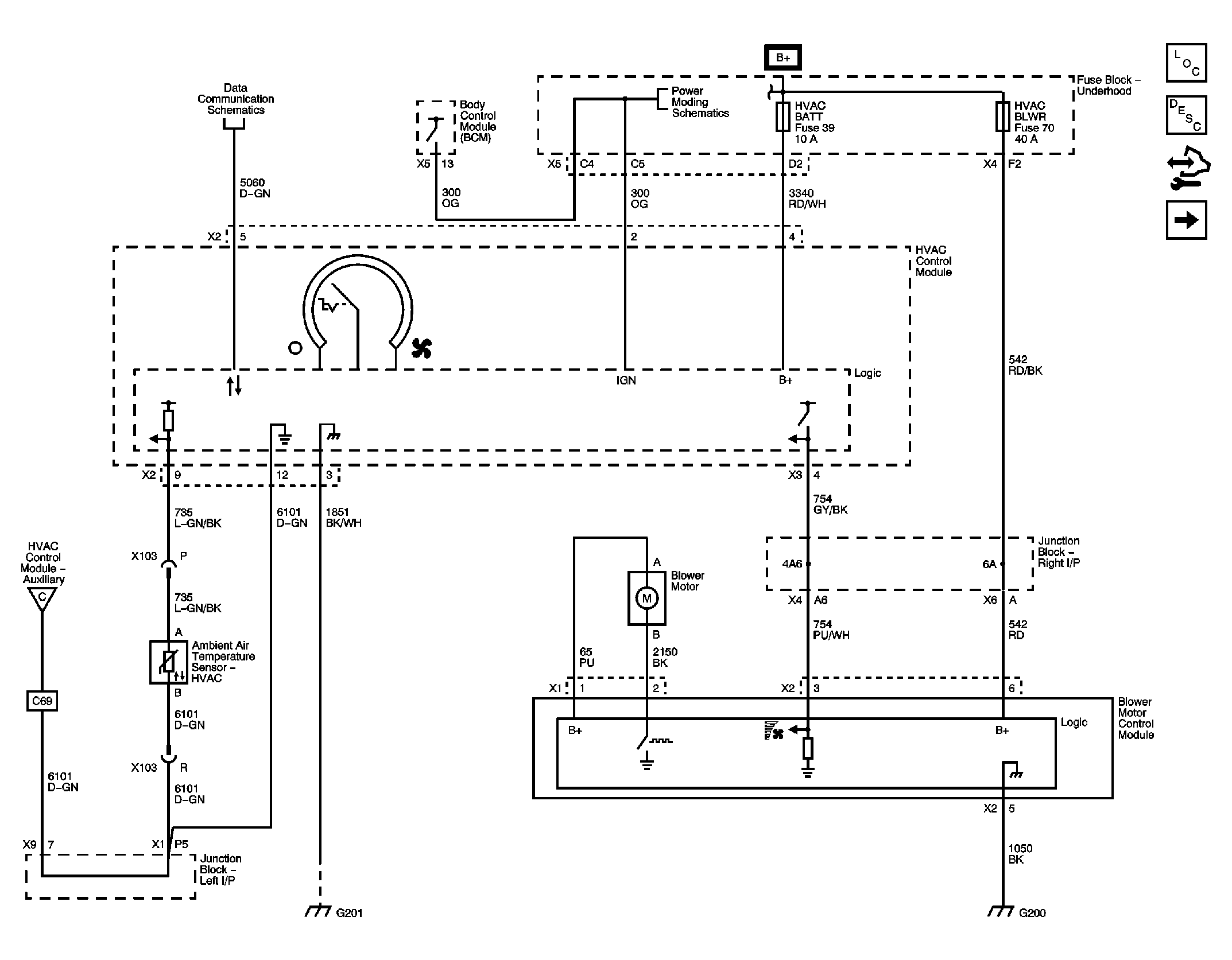

Fig 1: Module Power, Ground, Serial Data, and Front Blower Control Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
