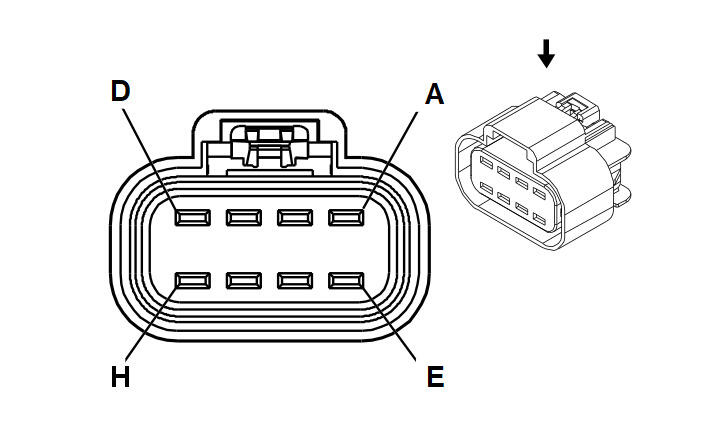

Automatic Level Control (ALC) Compressor (G69 or Z55)
Courtesy of GENERAL MOTORS CORP. Automatic Level Control (ALC) Compressor (G69 or Z55)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 TN |
6075 |
Automatic Level Control Pressure Sensor Signal |
| B |
2 RD/WH |
2440 |
Battery Positive Voltage |
| C |
0.5 WH |
320 |
Automatic Level Control Exhaust Solenoid Control |
| D |
- |
- |
Not Used |
| E |
3 L-BU |
2248 |
Automatic Level Control Air Compressor Control |
| F |
0.5 BN |
6077 |
Low Reference |
| G |
3 BK |
1750 |
Ground |
| H |
0.5 GY |
6076 |
5-Volt Reference |
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 15326654
- Service Connector: 88986254
- Description: 8-Way F Metri-Pack 280 Series, Sealed (BK)
|
Terminal Part Information
- Pins: A, C, F, H
- Terminated Lead: 13576356
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 15304719/19
- Core/Insulation Crimp: E/5
- Pins: B, E, G
- Terminated Lead: 13575403
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 15304720/19
- Core/Insulation Crimp: 4/5
|
