Digital Radio Receiver (U2K without HP2)

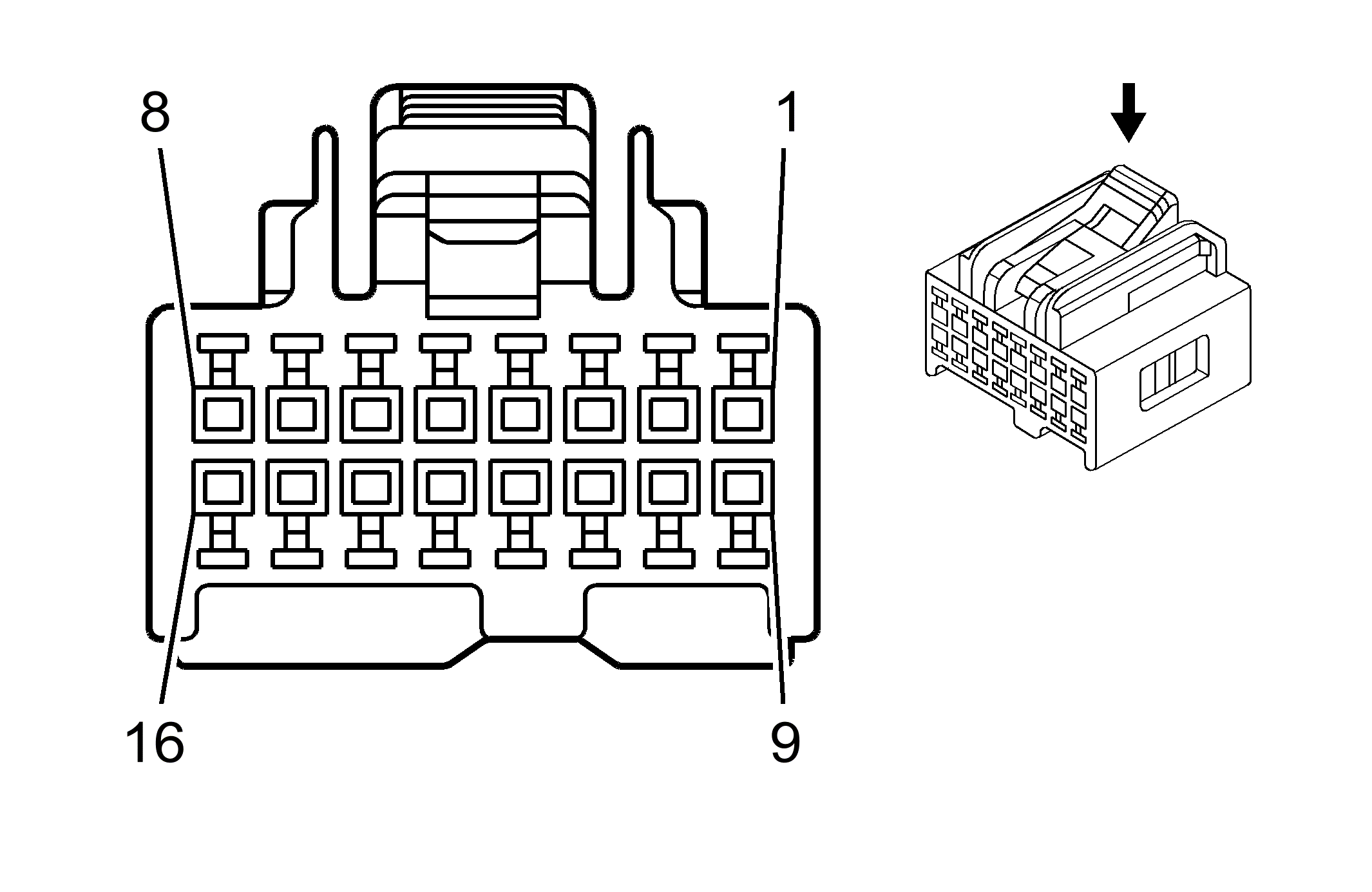

Courtesy of GENERAL MOTORS CORP. Digital Radio Receiver (U2K without HP2)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 TN/WH |
372 |
Left Audio Signal (-) |
| 2 |
0.35 BN/WH |
367 |
Left Audio Signal (+) |
| 3 |
0.35 D-GN/WH |
368 |
Right Audio Signal (+) |
| 4 |
0.35 GY |
388 |
Right Audio Signal (-) |
| 5 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 6-8 |
- |
- |
Not Used |
| 9 |
0.5 BK |
2550 |
Ground |
| 10-15 |
- |
- |
Not Used |
| 16 |
0.5 RD/WH |
340 |
Battery Positive Voltage |
Connector Part Information
- Harness: Instrument Panel (Y91)
- Harness: Instrument Panel Extension (except Y91)
- OEM: 13783349 (Y91)
- OEM: 15486792 (except Y91)
- Service: Pending (Y91)
- Service: 19178168 (except Y91)
- Description: 16-Way F Micro HVT Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575550
- Release Tool: J-38125-559
- Diagnostic Test Probe: J-35616-16 (L-GN)
- Terminal/Tray: 15445905/23
- Core/Insulation Crimp: J/J
|
