Low Speed Bus- JX200 (1 of 3)

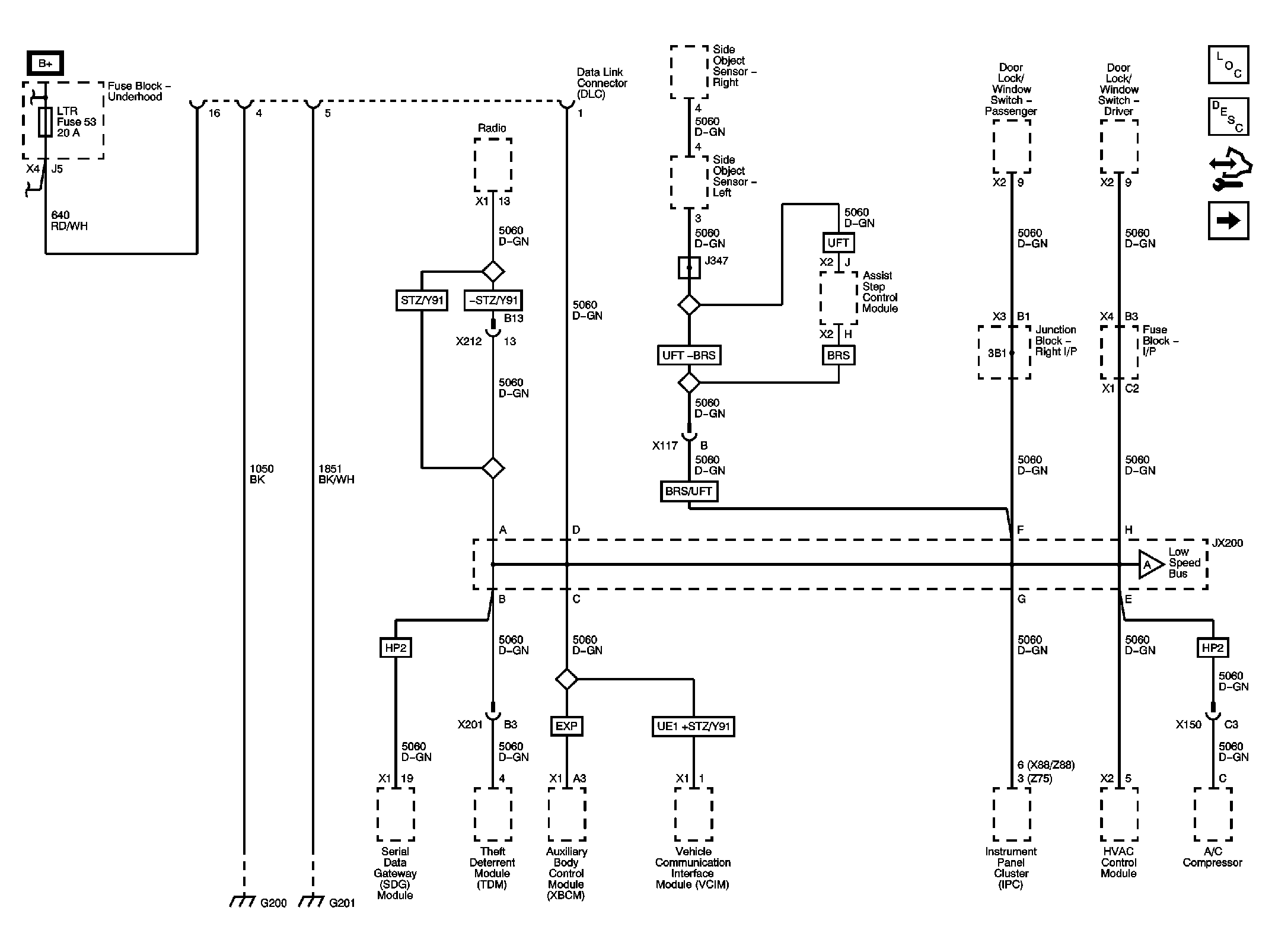

Fig 1: Low Speed Bus- JX200 (1 of 3) Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
