OnStar Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

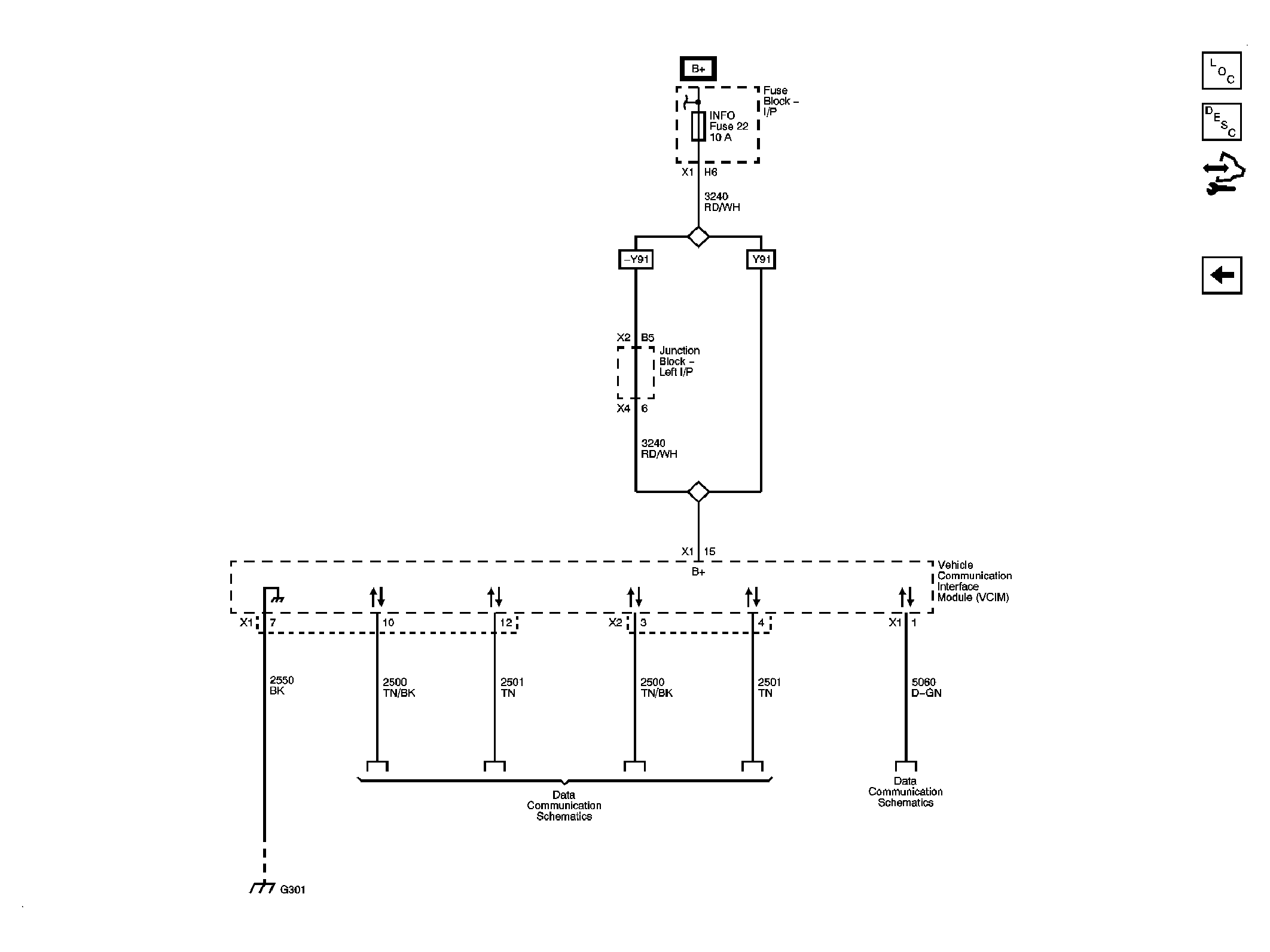

Fig 1: Module Power, Ground & Serial Data Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

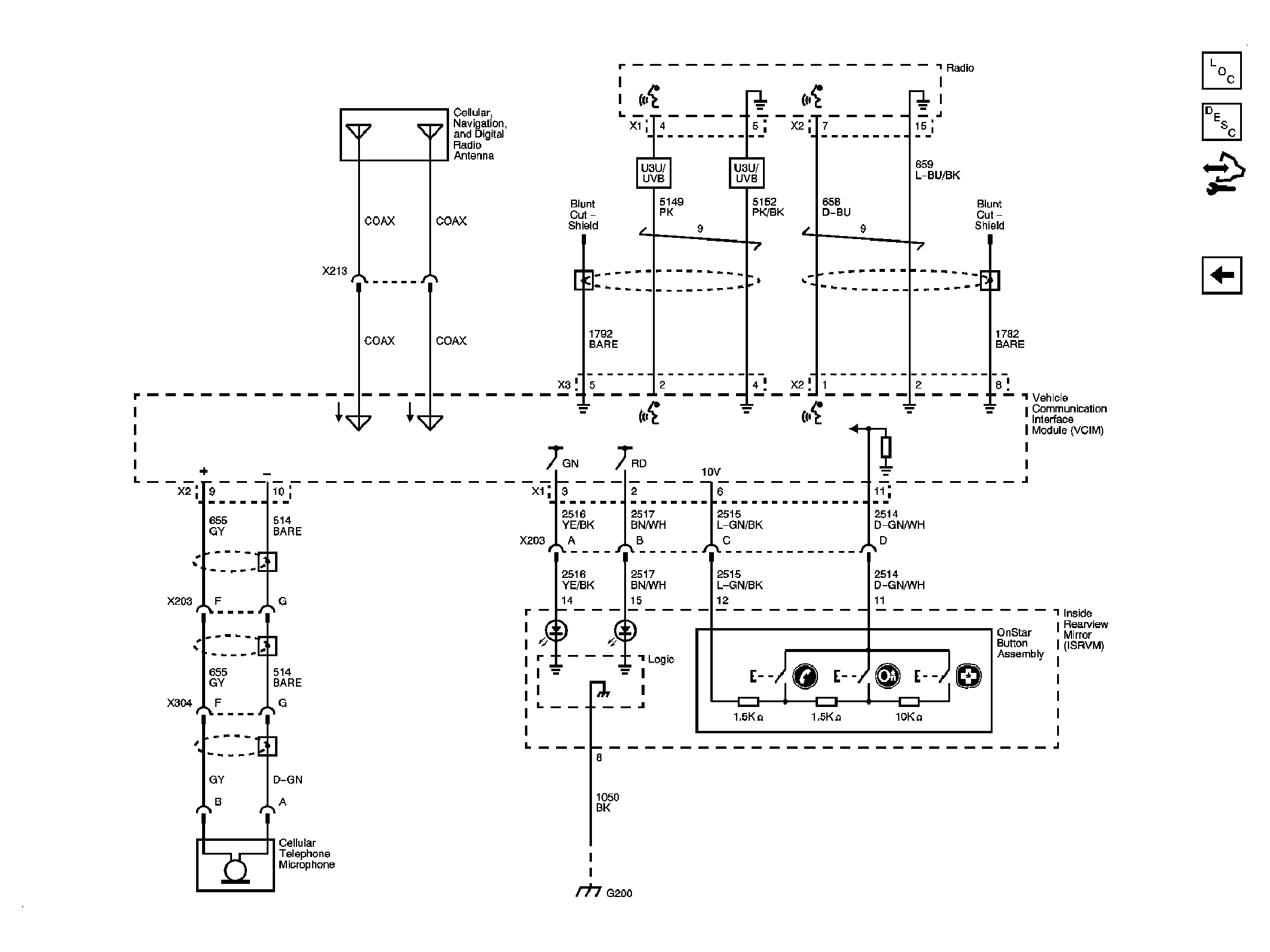

Fig 2: Communication Signals & Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
