Garage Door Opener Transmitter Replacement
WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

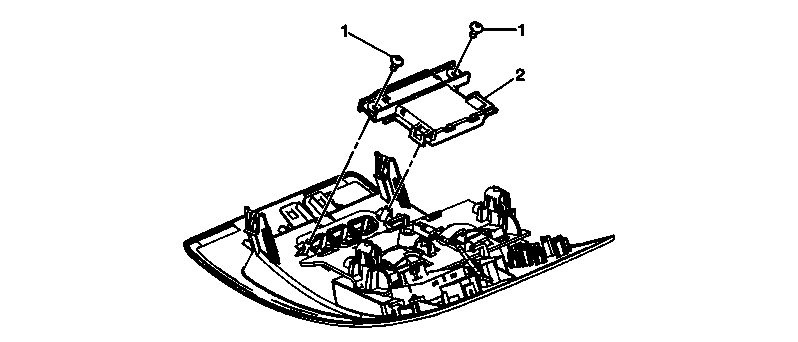

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lower the overhead console enough to access the garage door opener. Refer to Roof Console Replacement . |
|
| 1 | Garage Door Opener Transmitter Screws (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Garage Door Opener Transmitter Assembly |
