Except for California Emission Regulation Applicable Model

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

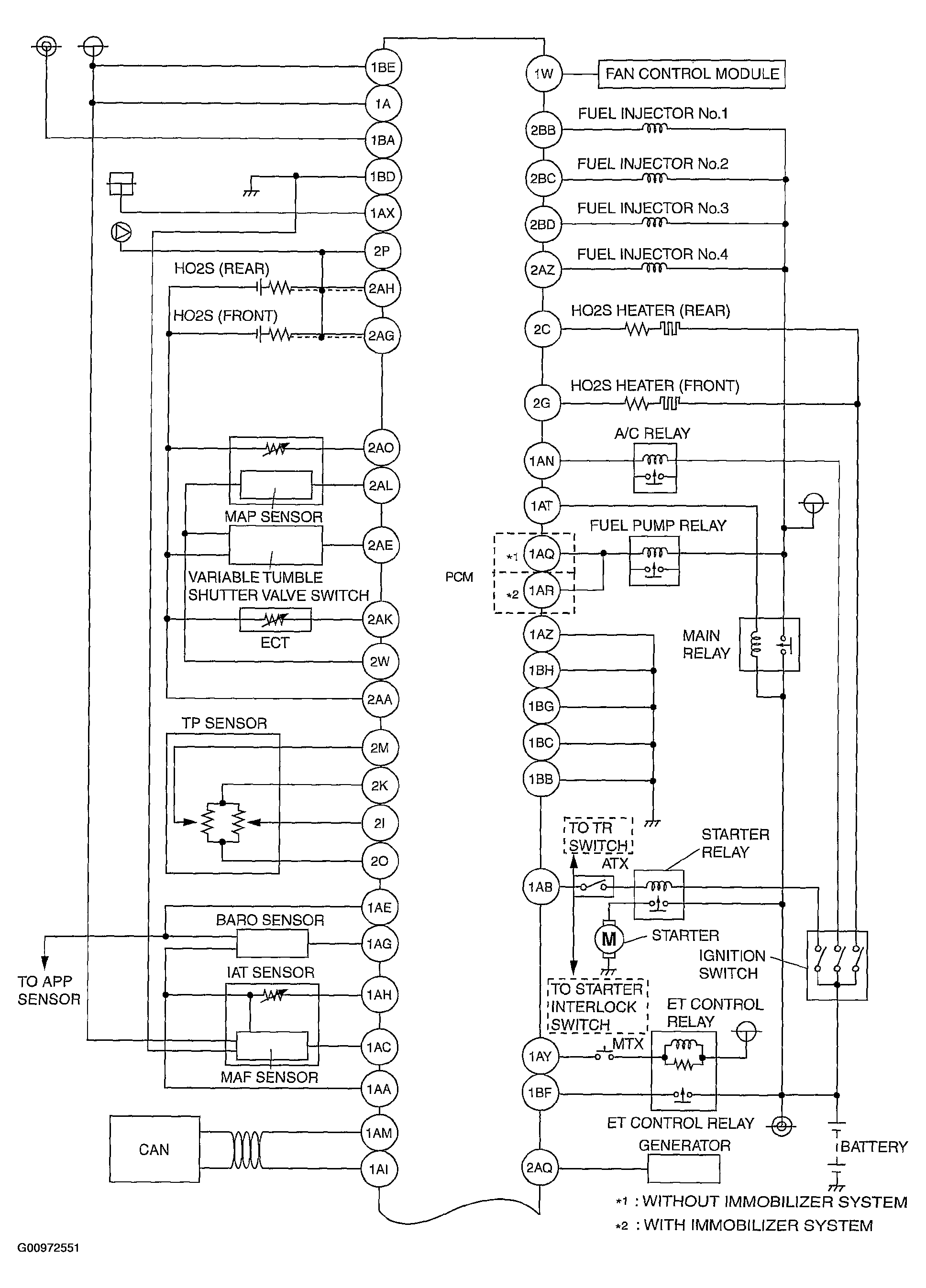

Fig 1: Control System Wiring Diagram-Except For California Emission Regulation Applicable Model (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

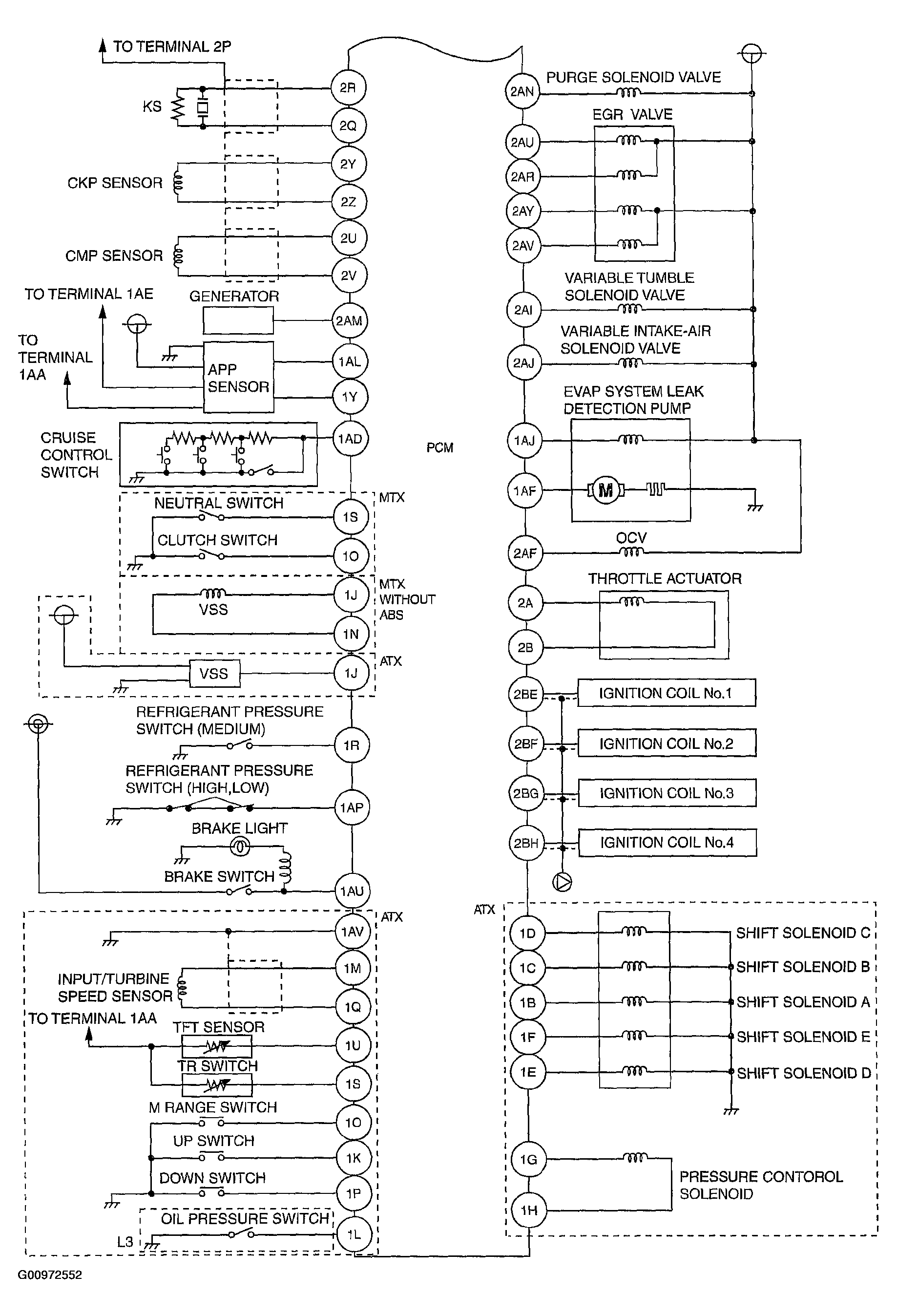

Fig 2: Control System Wiring Diagram-Except For California Emission Regulation Applicable Model (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
