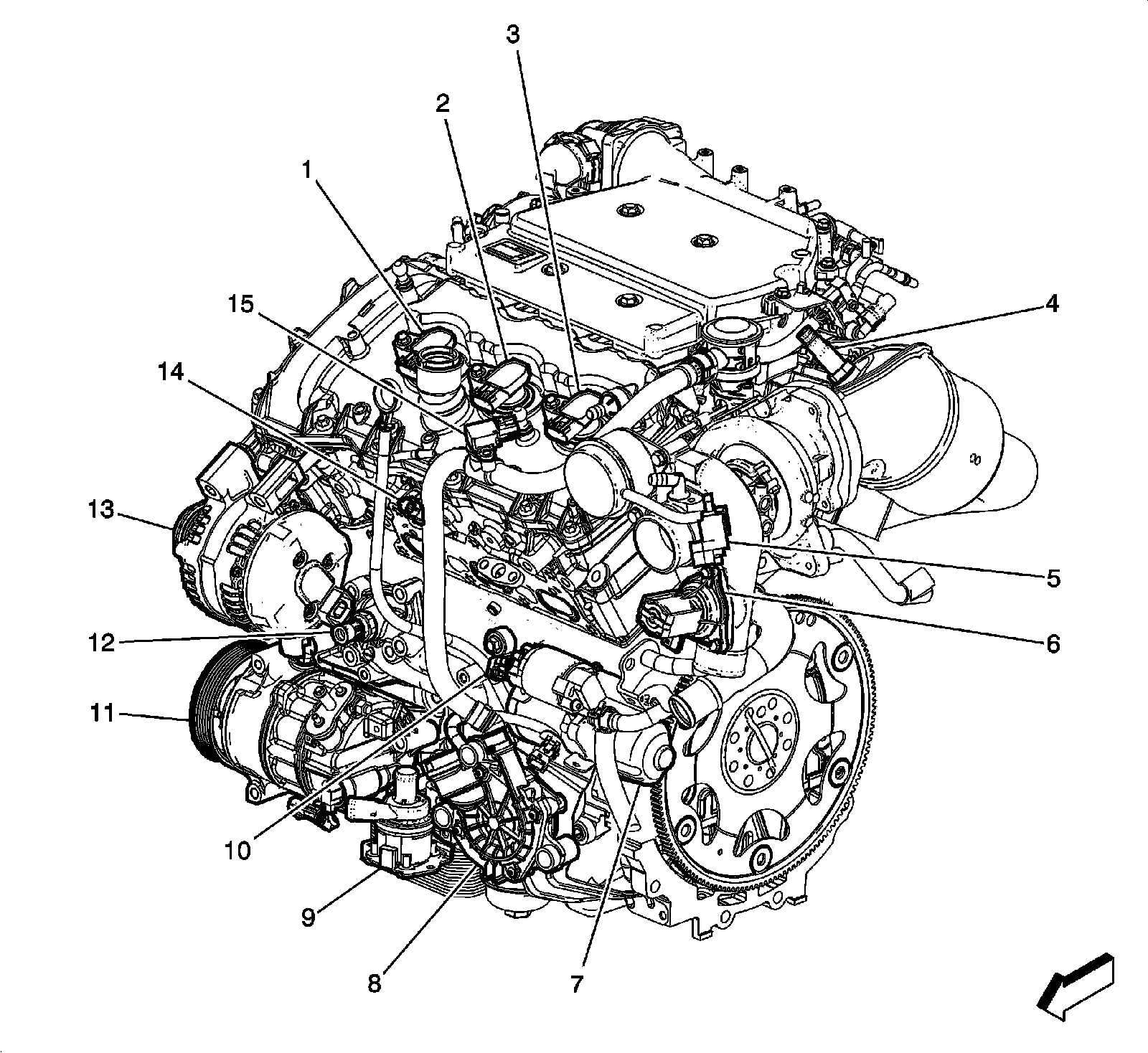

Front of Engine Components (LAU)




1 - T8B Ignition Coil 2
2 - T8D Ignition Coil 4
3 - T8F Ignition Coil 6
4 - B52A Heated Oxygen Sensor 1
5 - Q42 Turbocharger Wastegate Solenoid Valve
6 - Q40 Turbocharger Bypass Solenoid Valve
7 - M64 Starter Motor
8 - G21 Secondary Air Injection Pump
9 - G8 Coolant Pump - Auxiliary
10 - B68B Knock Sensor 2
11 - G1 A/C Compressor
12 - B37B Engine Oil Pressure Sensor
13 - G13 Generator
14 - B34 Engine Coolant Temperature Sensor
15 - B157 Secondary Air Injection Pressure Sensor
