Keyless Entry Module: Diagrams
Component Connector End Views

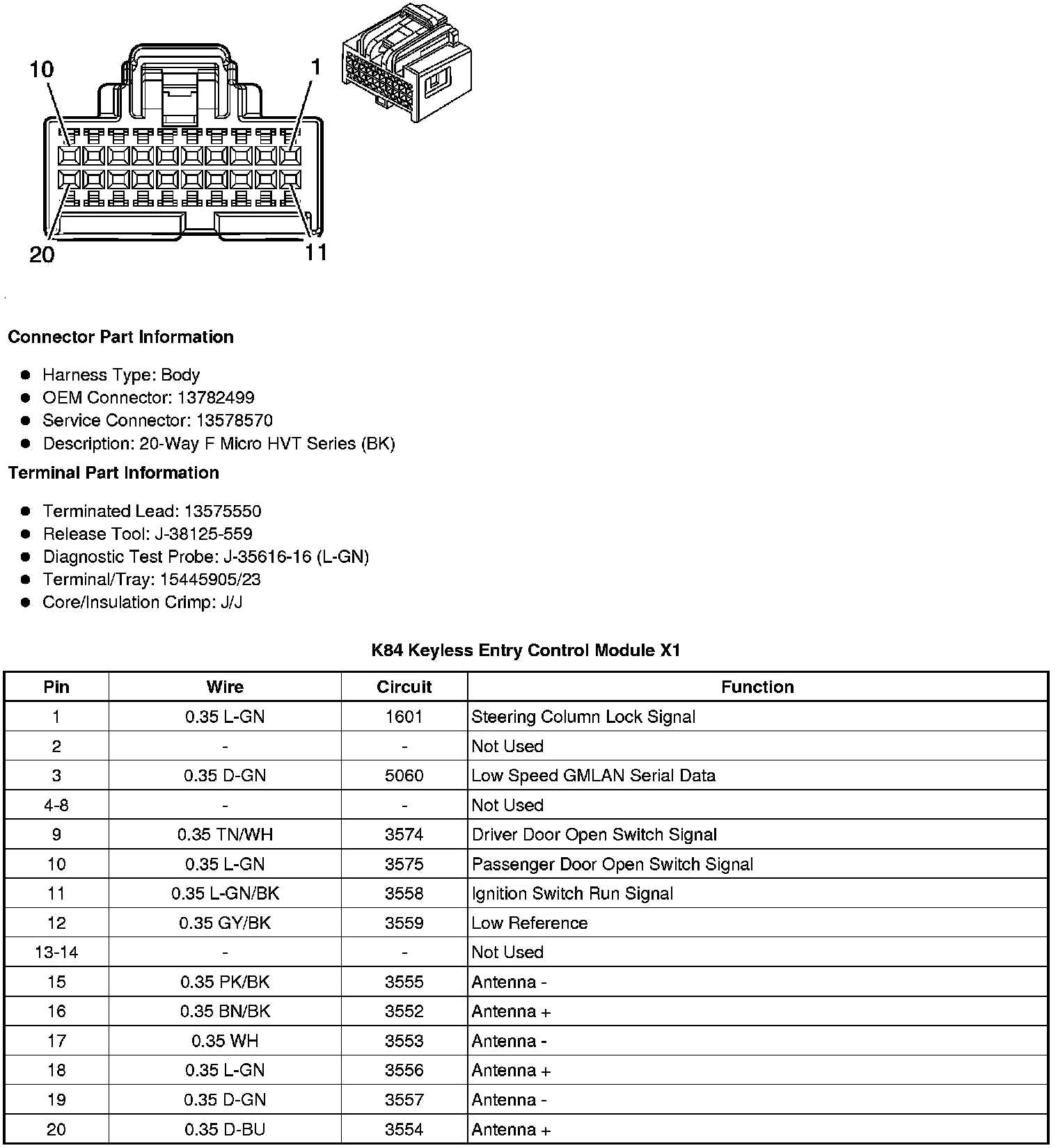

K84 Keyless Entry Control Module X1

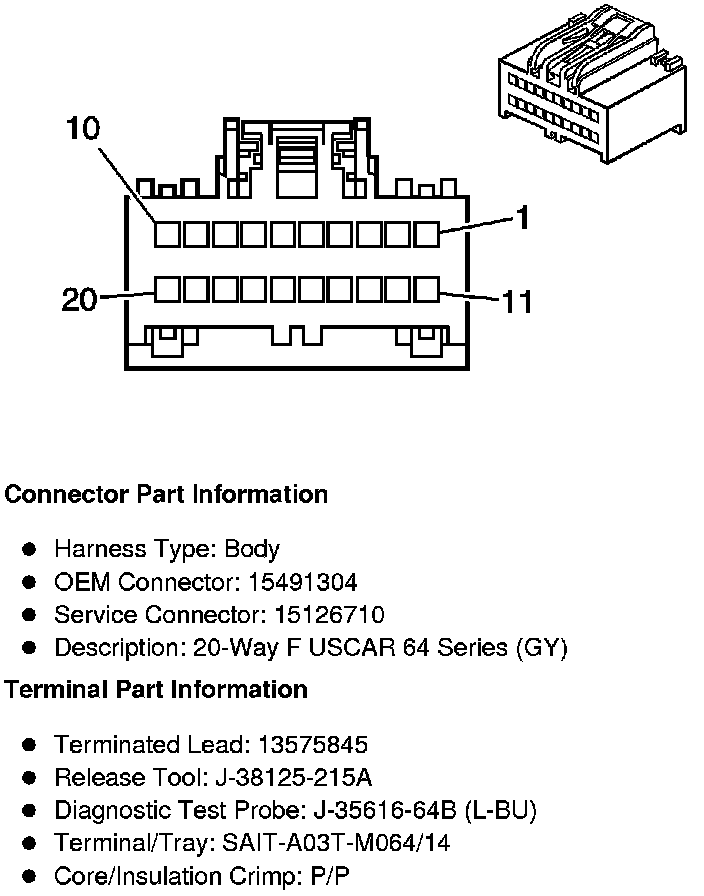

K84 Keyless Entry Control Module X2

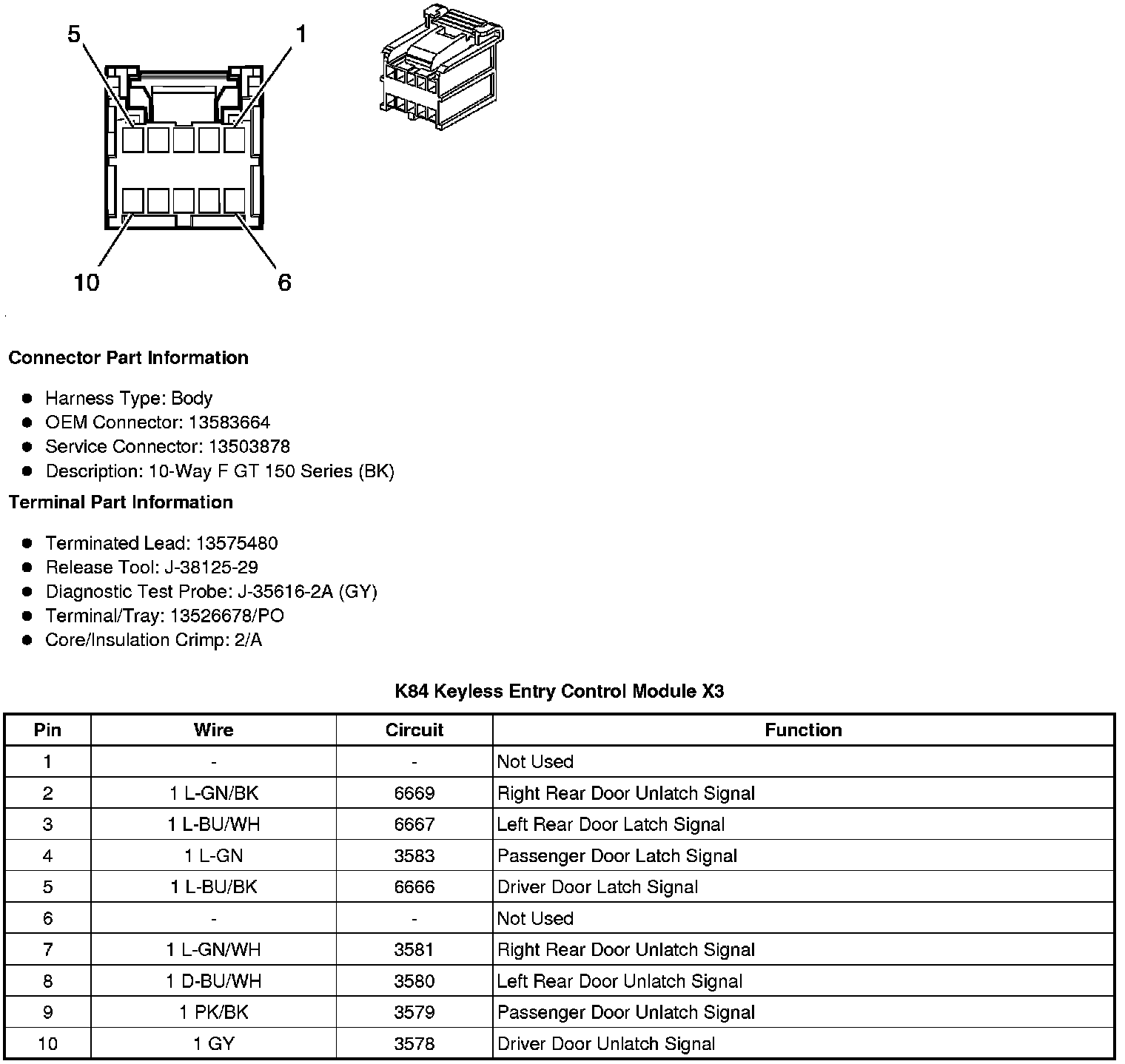

K84 Keyless Entry Control Module X3

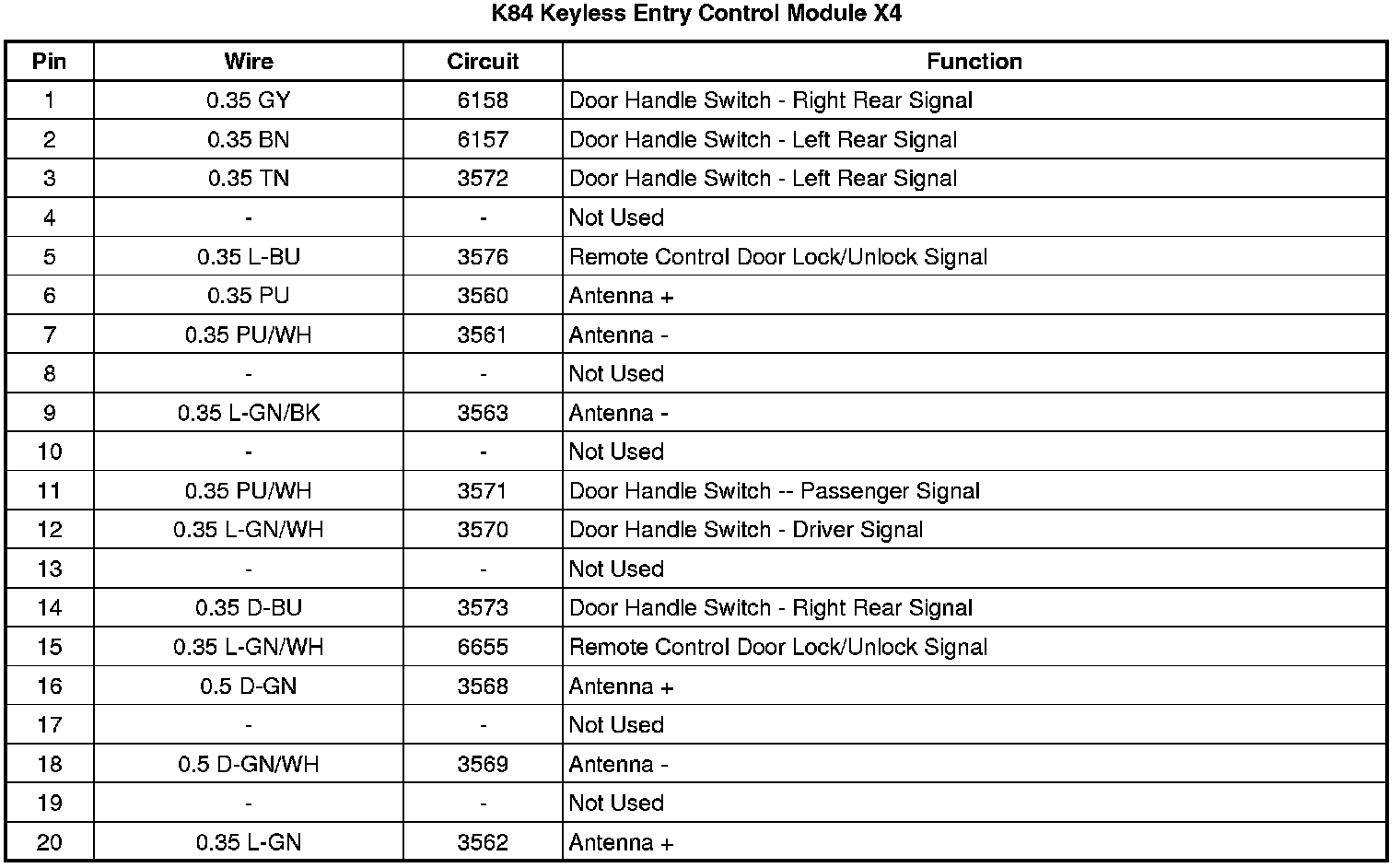

K84 Keyless Entry Control Module X4
Component Connector End Views
K84 Keyless Entry Control Module X1
K84 Keyless Entry Control Module X2
K84 Keyless Entry Control Module X3
K84 Keyless Entry Control Module X4
