Cabin Temperature Sensor / Switch




Component Connector End Views

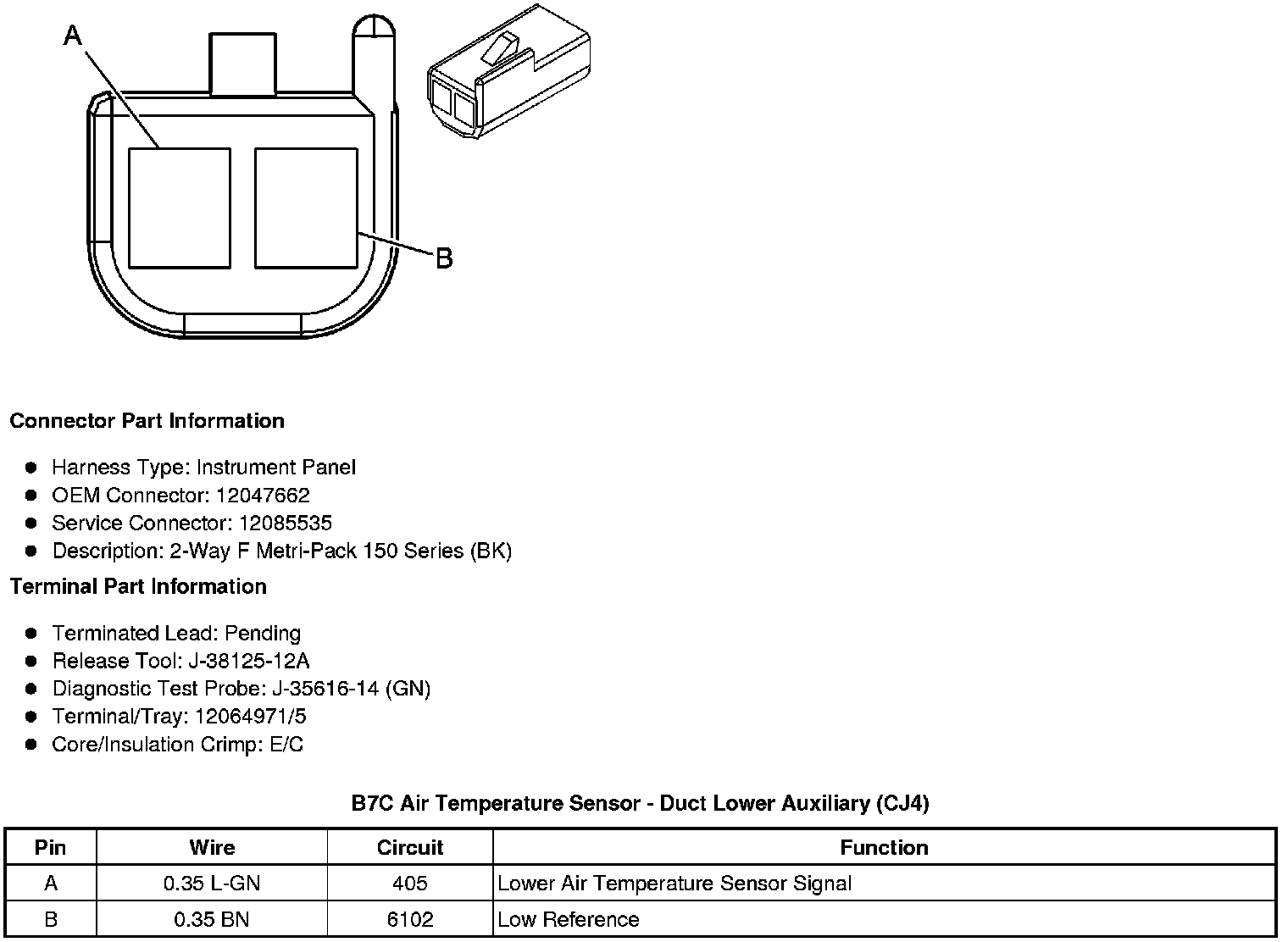

B7C Air Temperature Sensor - Duct Lower Auxiliary (CJ4)





B7D Air Temperature Sensor - Duct Left Lower





B7E Air Temperature Sensor - Duct Right Lower

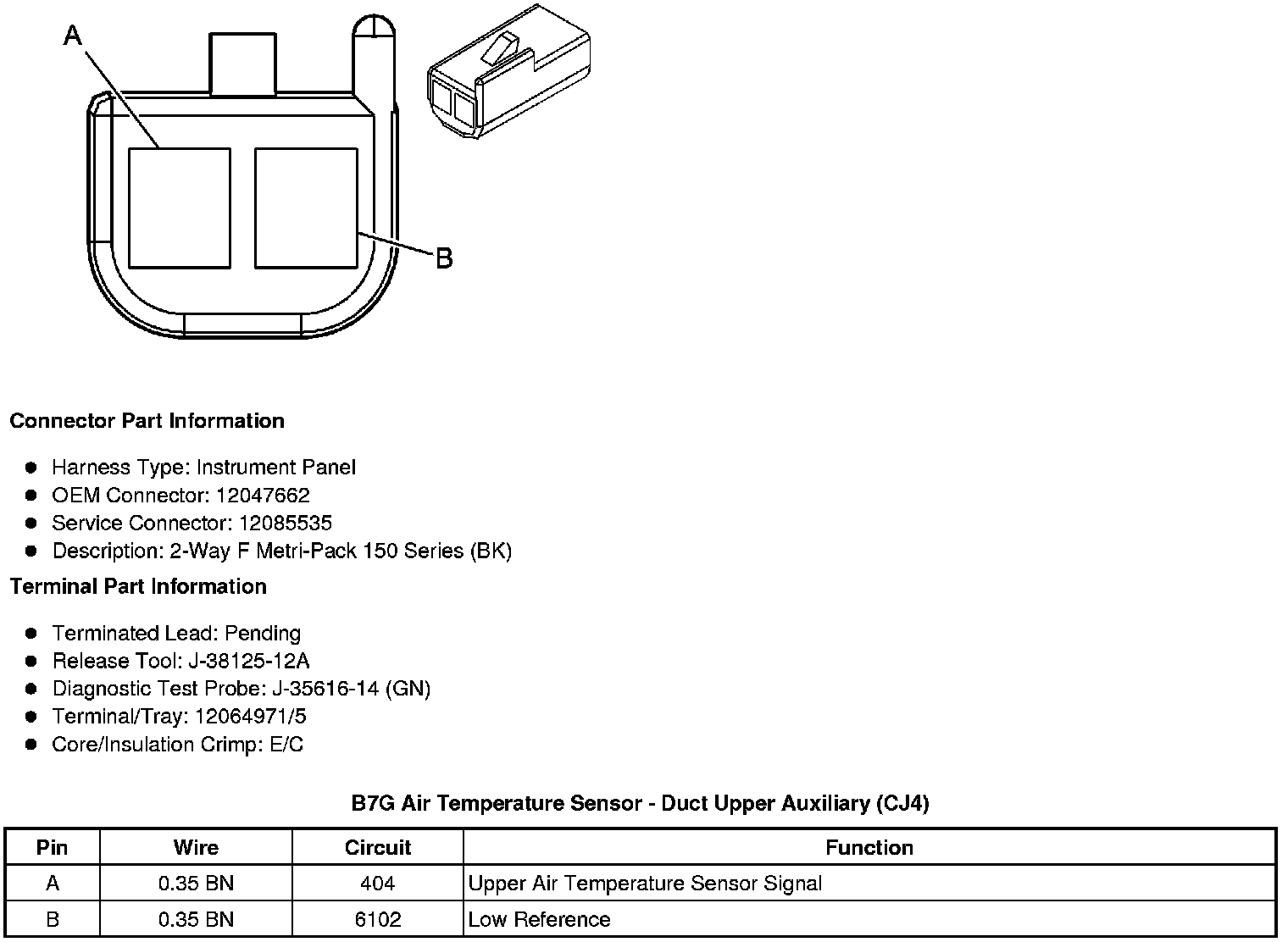

B7G Air Temperature Sensor - Duct Upper Auxiliary (CJ4)

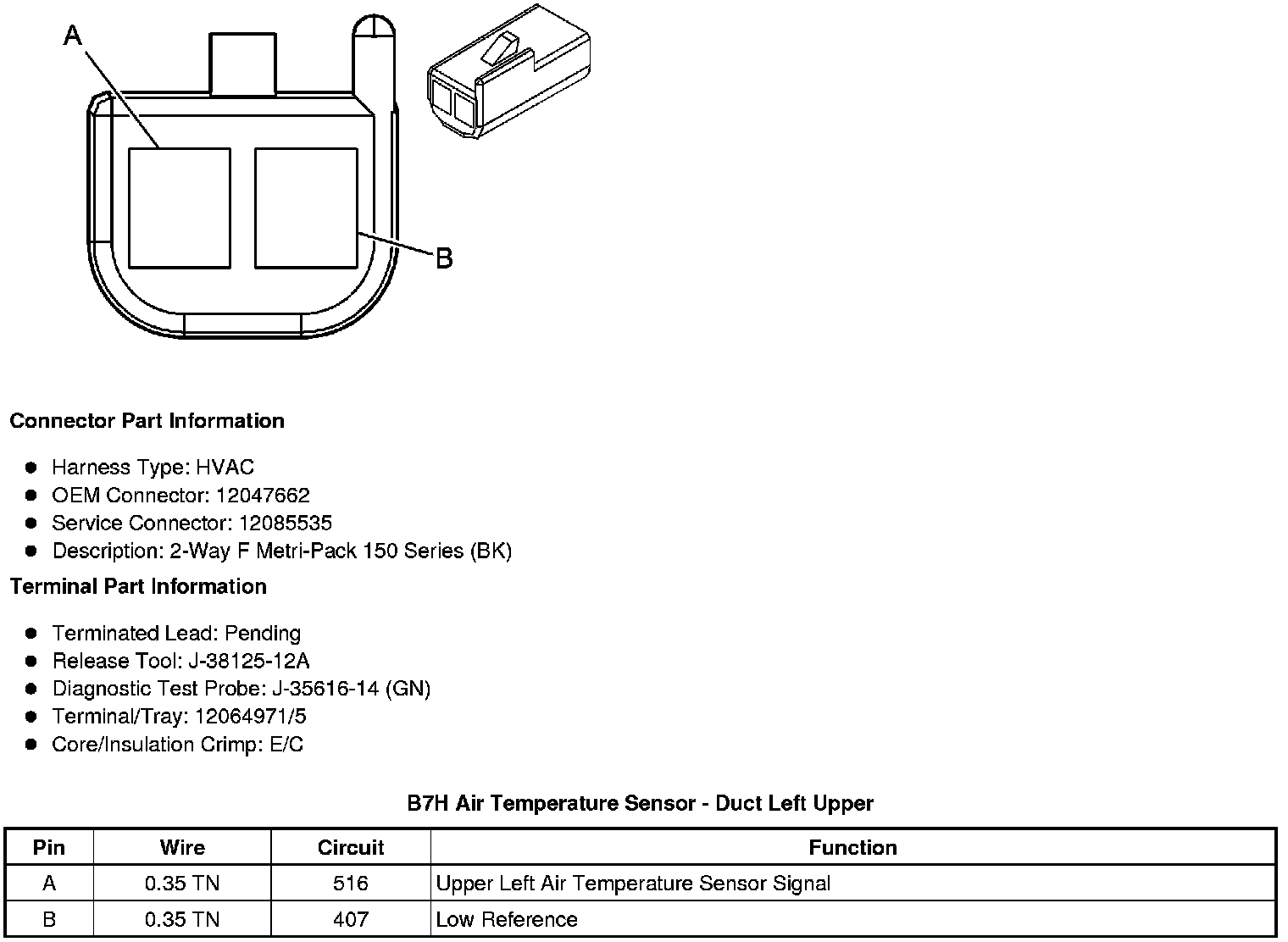

B7H Air Temperature Sensor - Duct Left Upper





B7J Air Temperature Sensor - Duct Right Upper
