Combination Switch




Component Connector End Views

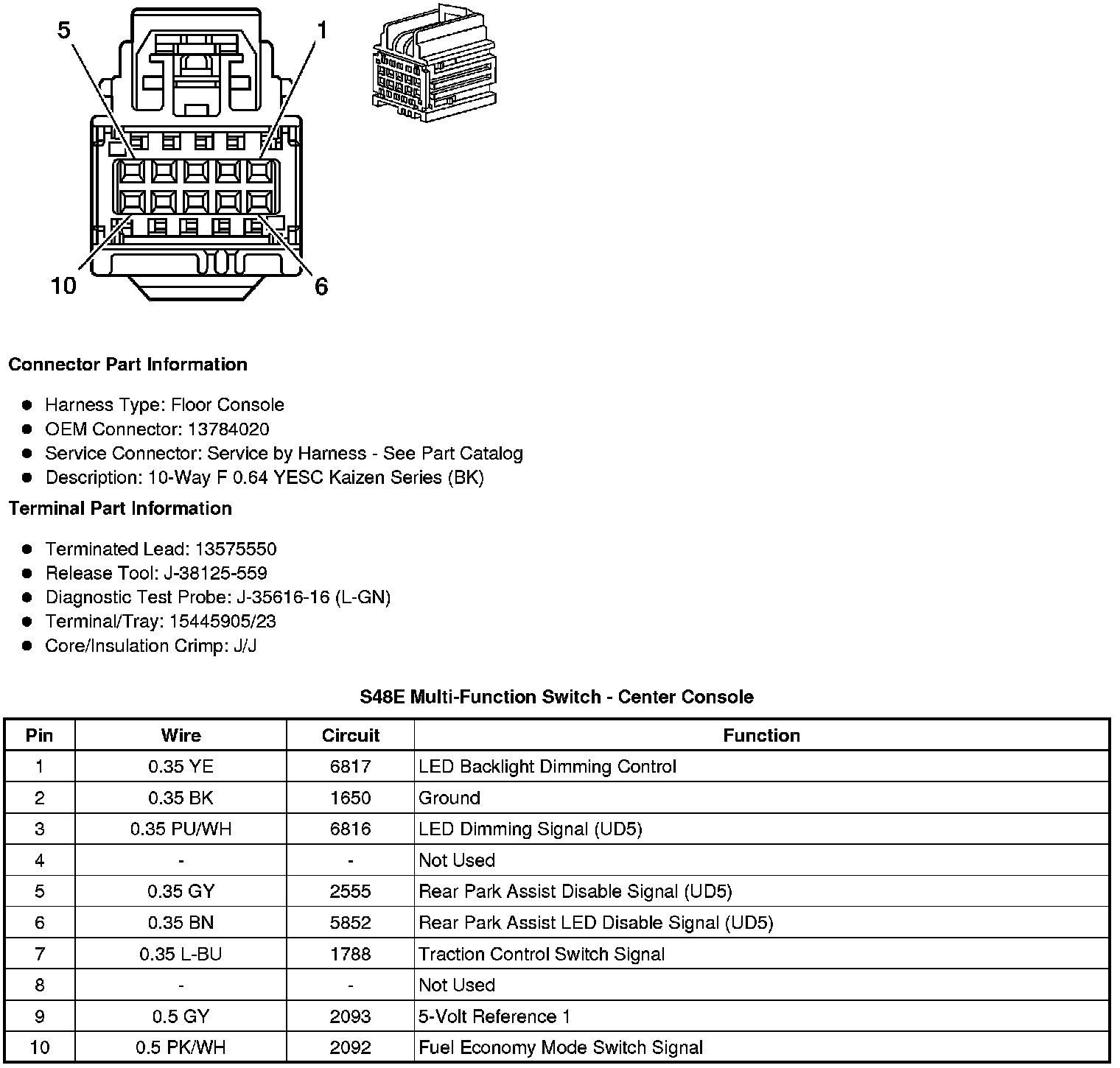

S48E Multi-Function Switch - Center Console

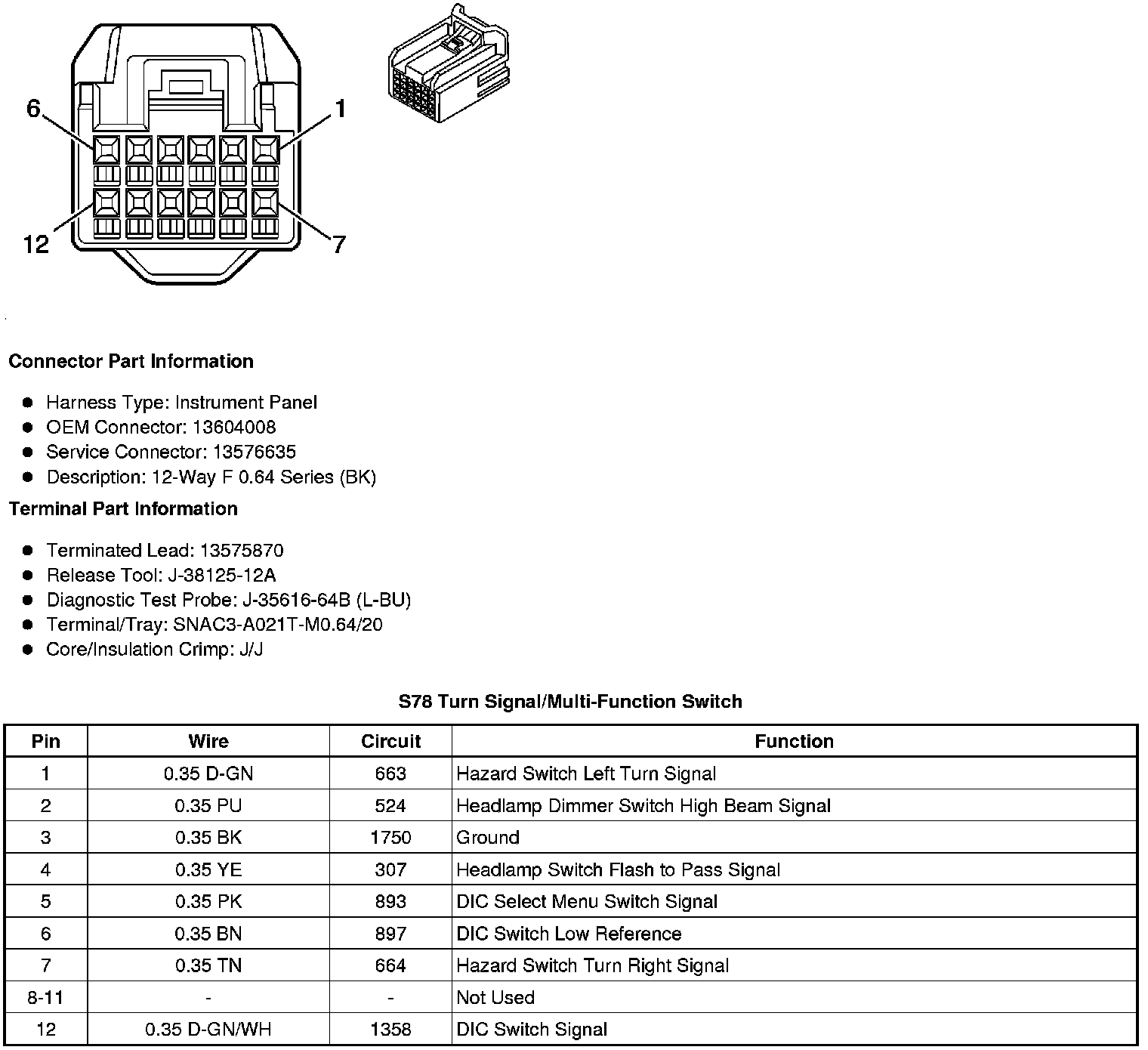

S78 Turn Signal/Multi-Function Switch
