Steering Mounted Controls Transmitter




Component Connector End Views

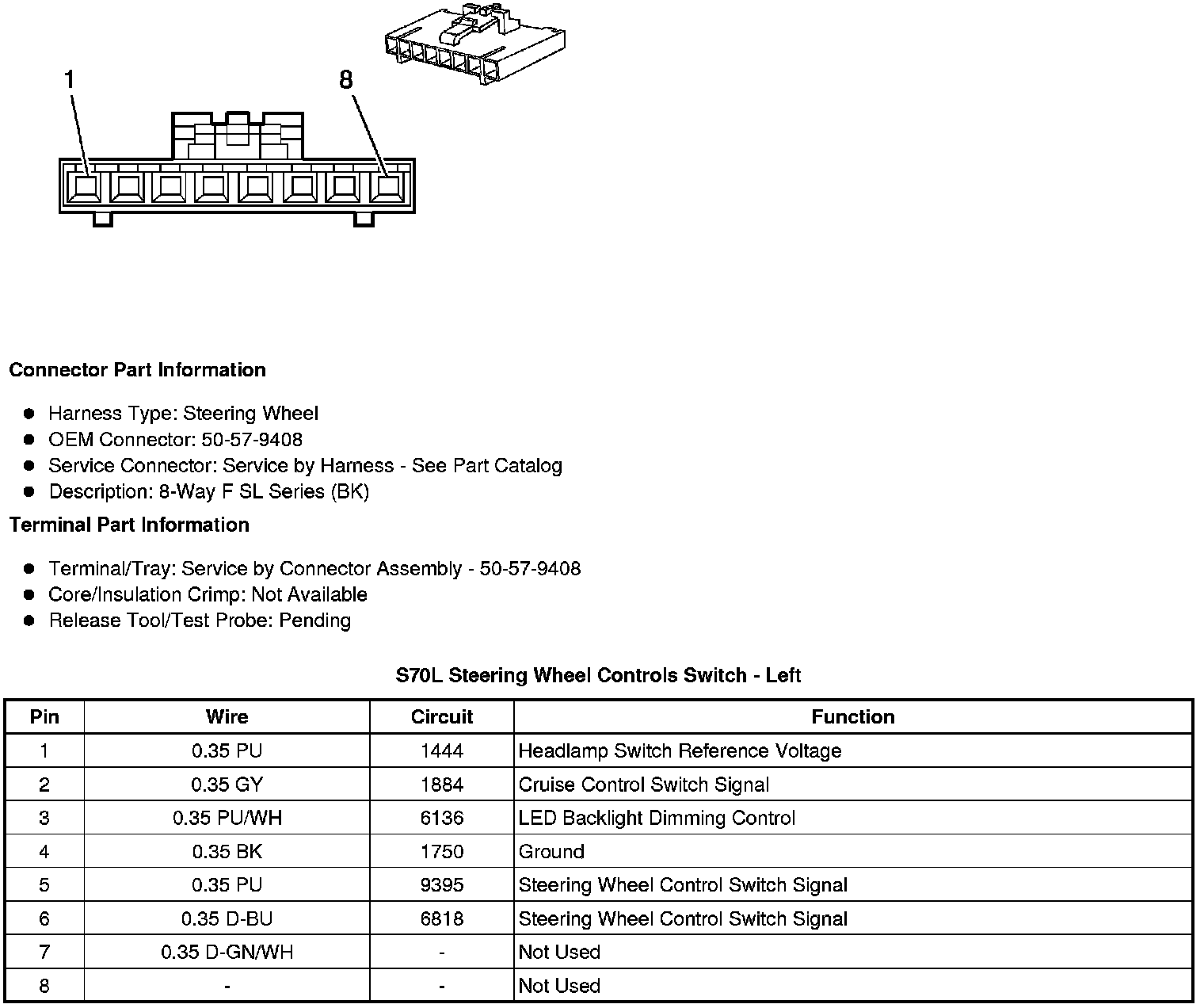

S70L Steering Wheel Controls Switch - Left

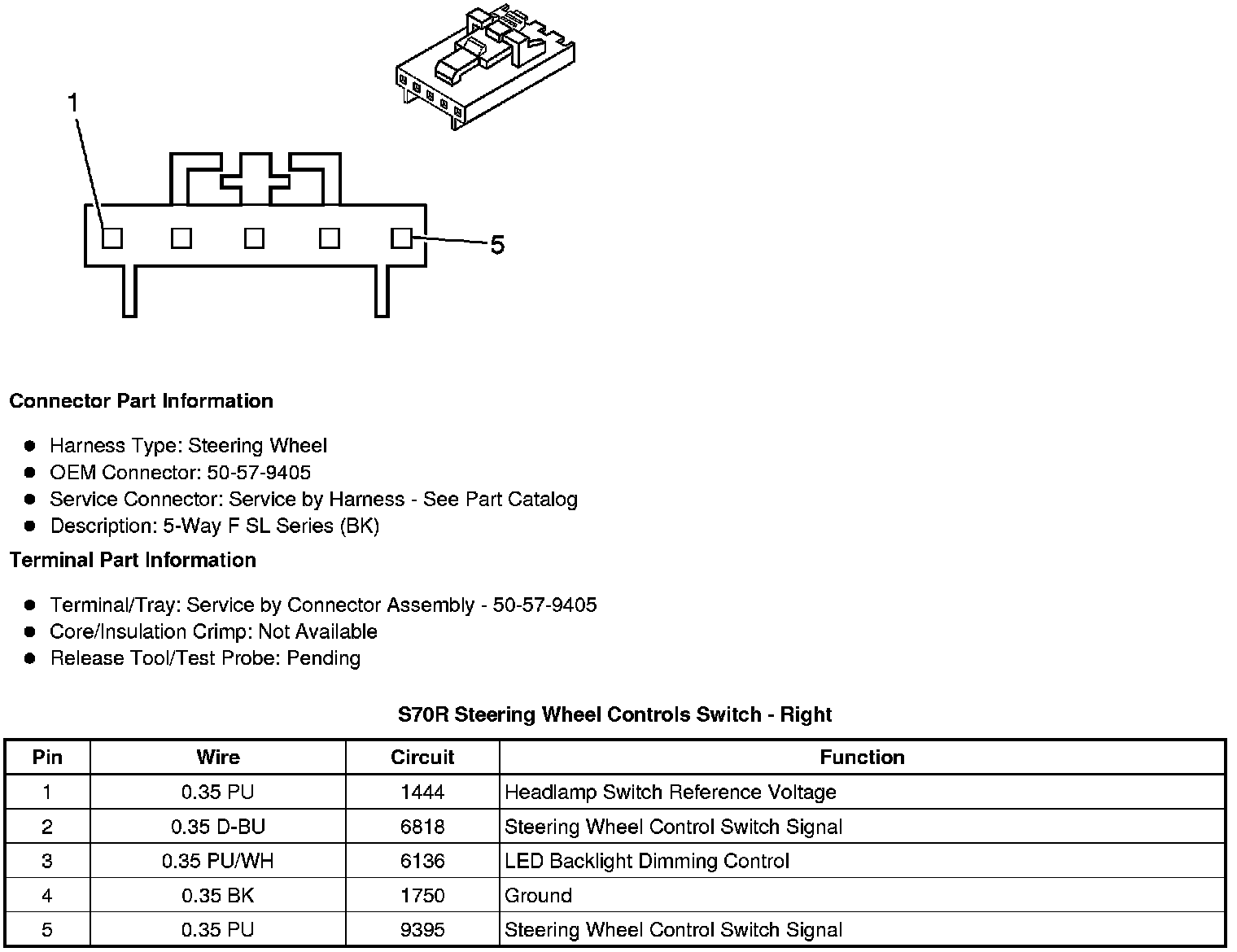

S70R Steering Wheel Controls Switch - Right
