Trailer Lighting Module




Component Connector End Views

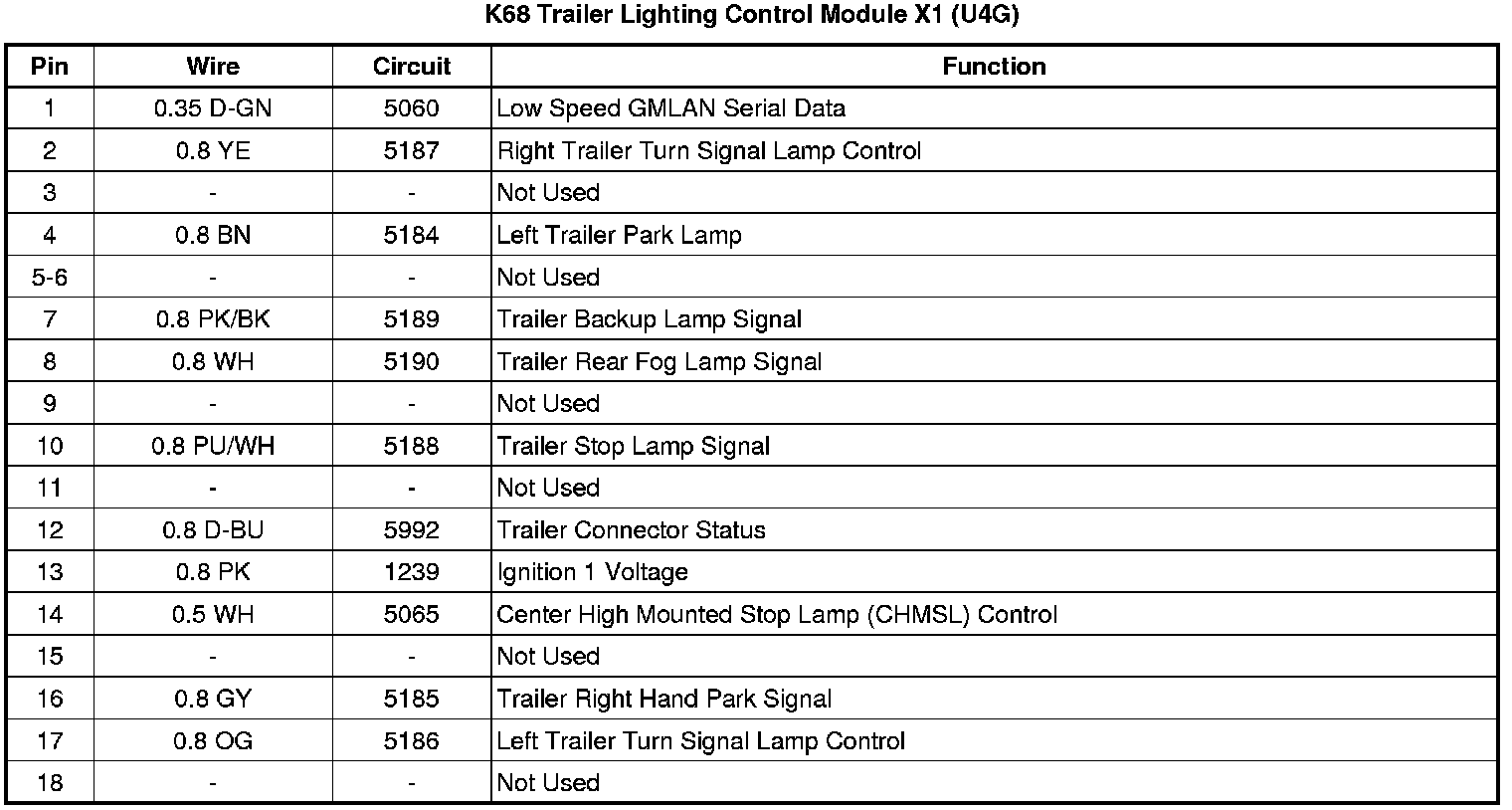

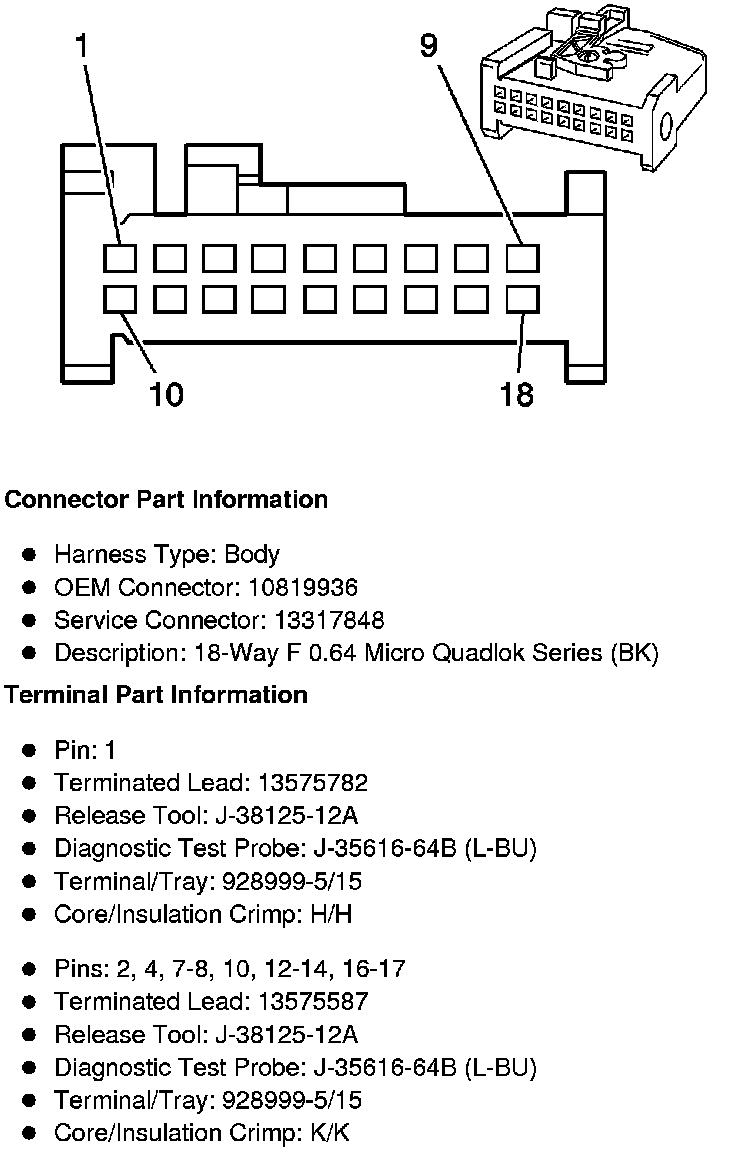

K68 Trailer Lighting Control Module X1 (U4G)

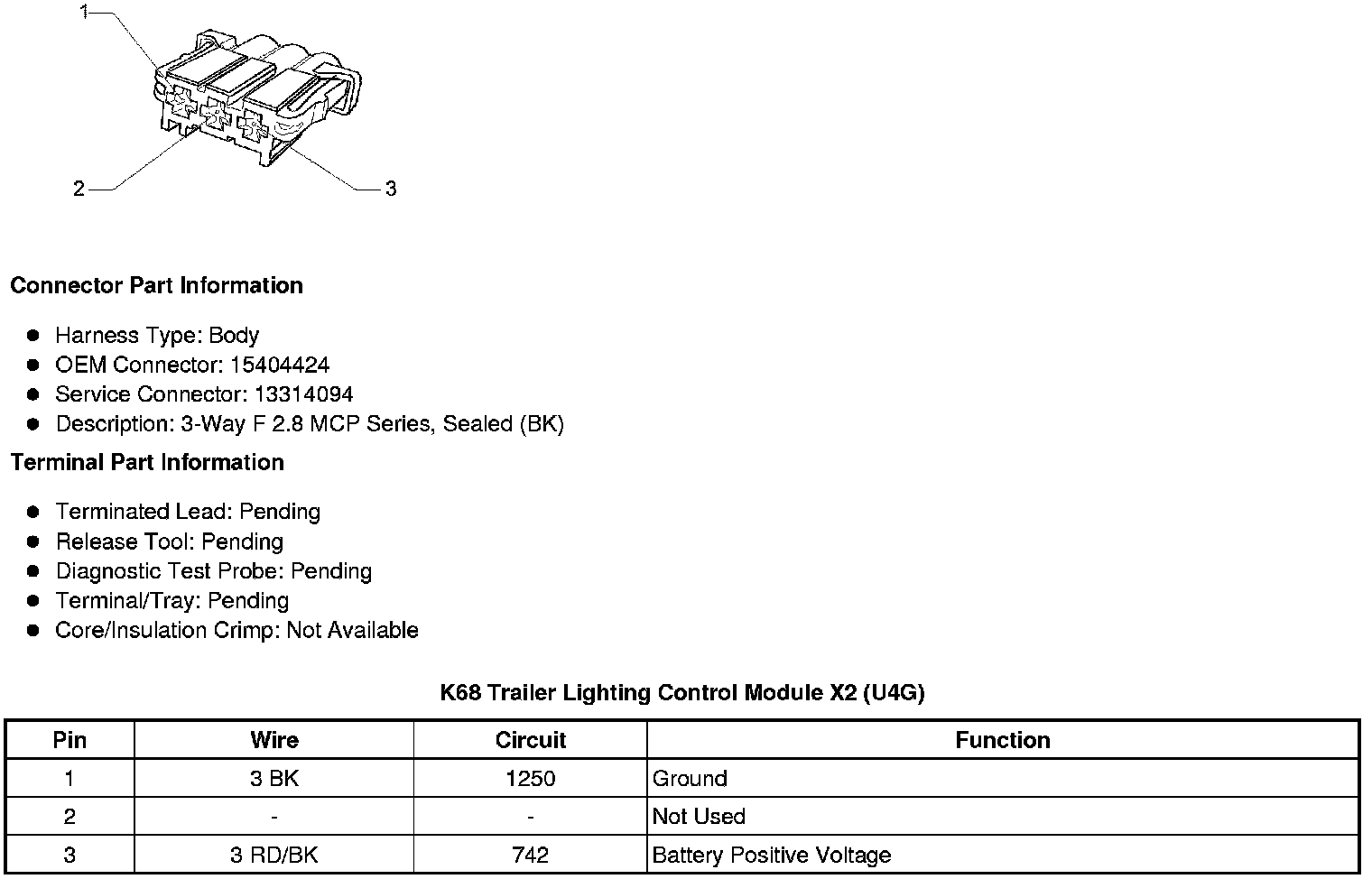

K68 Trailer Lighting Control Module X2 (U4G)

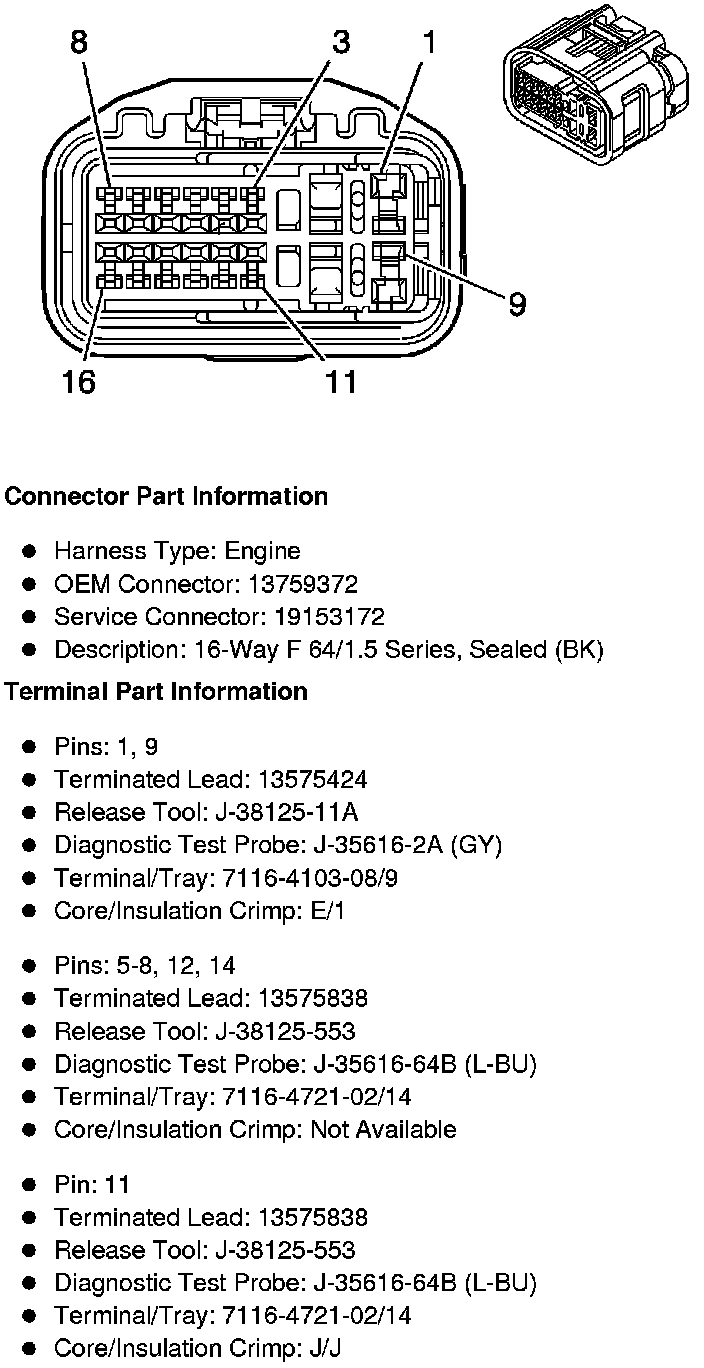

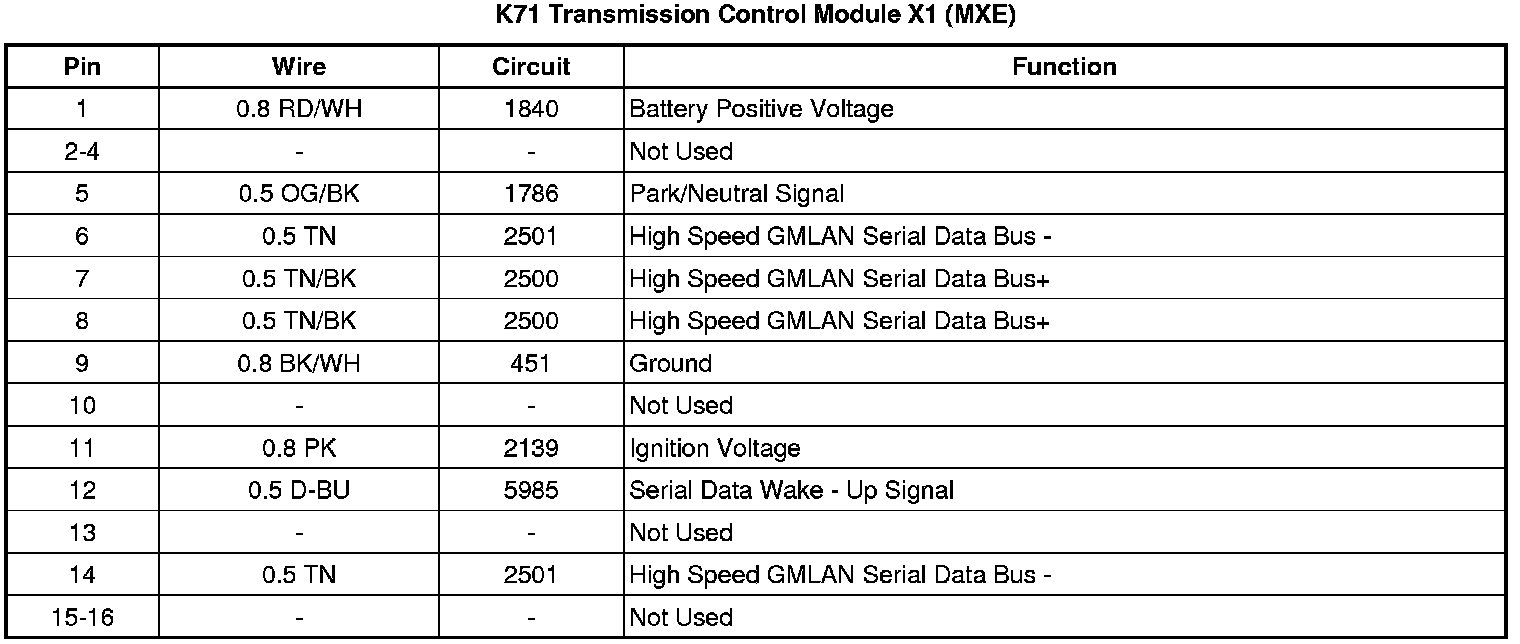

K71 Transmission Control Module X1 (MXE)
