Headlamp Control Module Scan Tool Information




Headlamp Control Module Scan Tool Information

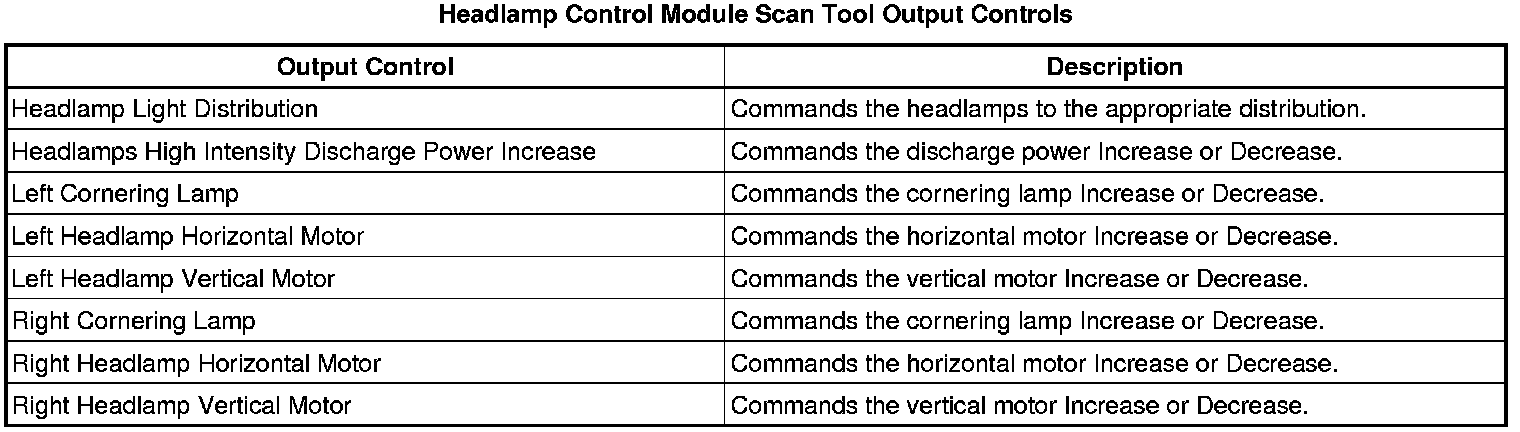

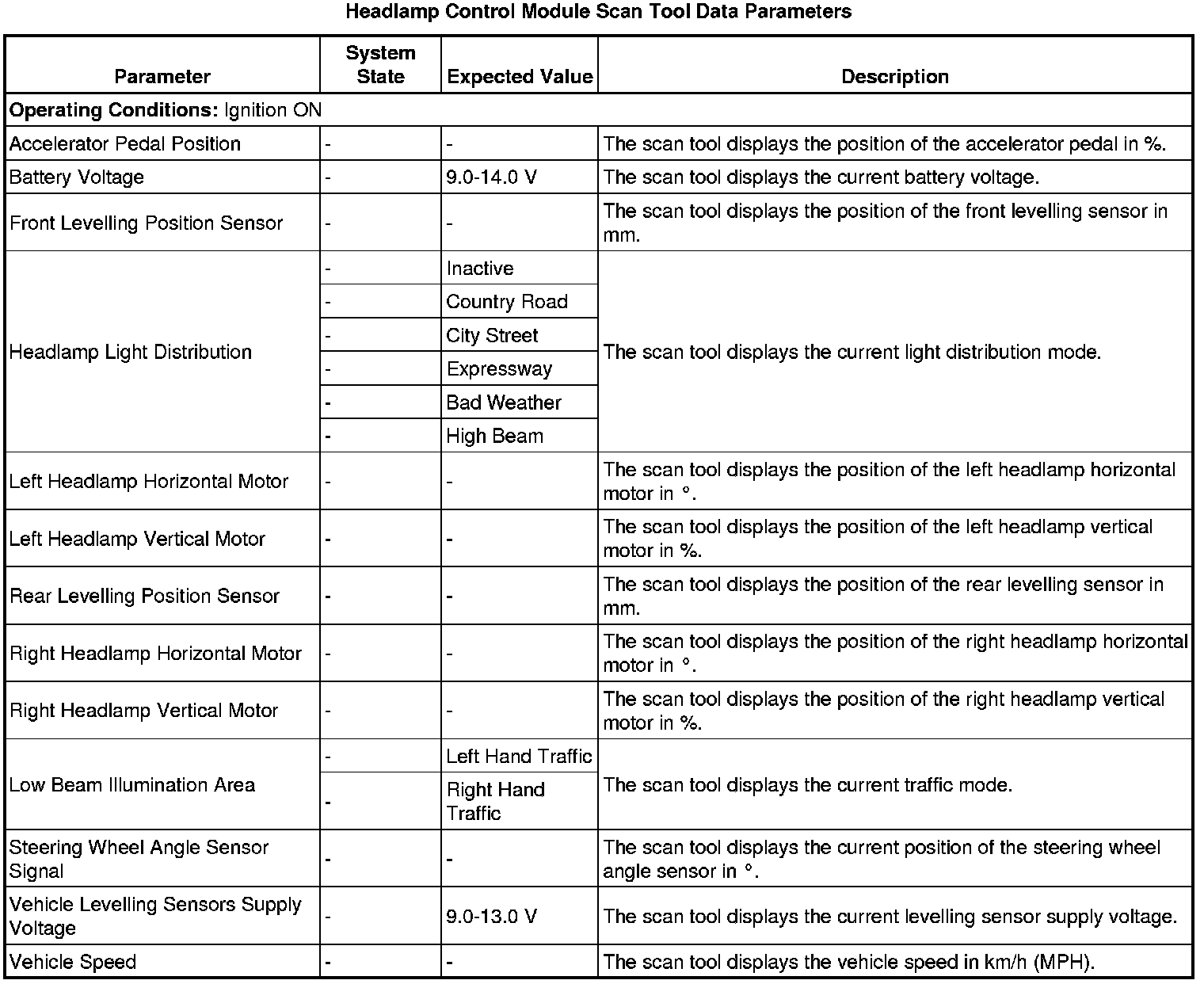

The headlamp control module scan tool data parameters list contains all headlamp related parameters that are available on the scan tool. The list is arranged in alphabetical order. A given parameter may appear in any one of the data lists.
