Transmission Position Sensor/Switch: Locations

Instrument Panel/Center Console Component Views

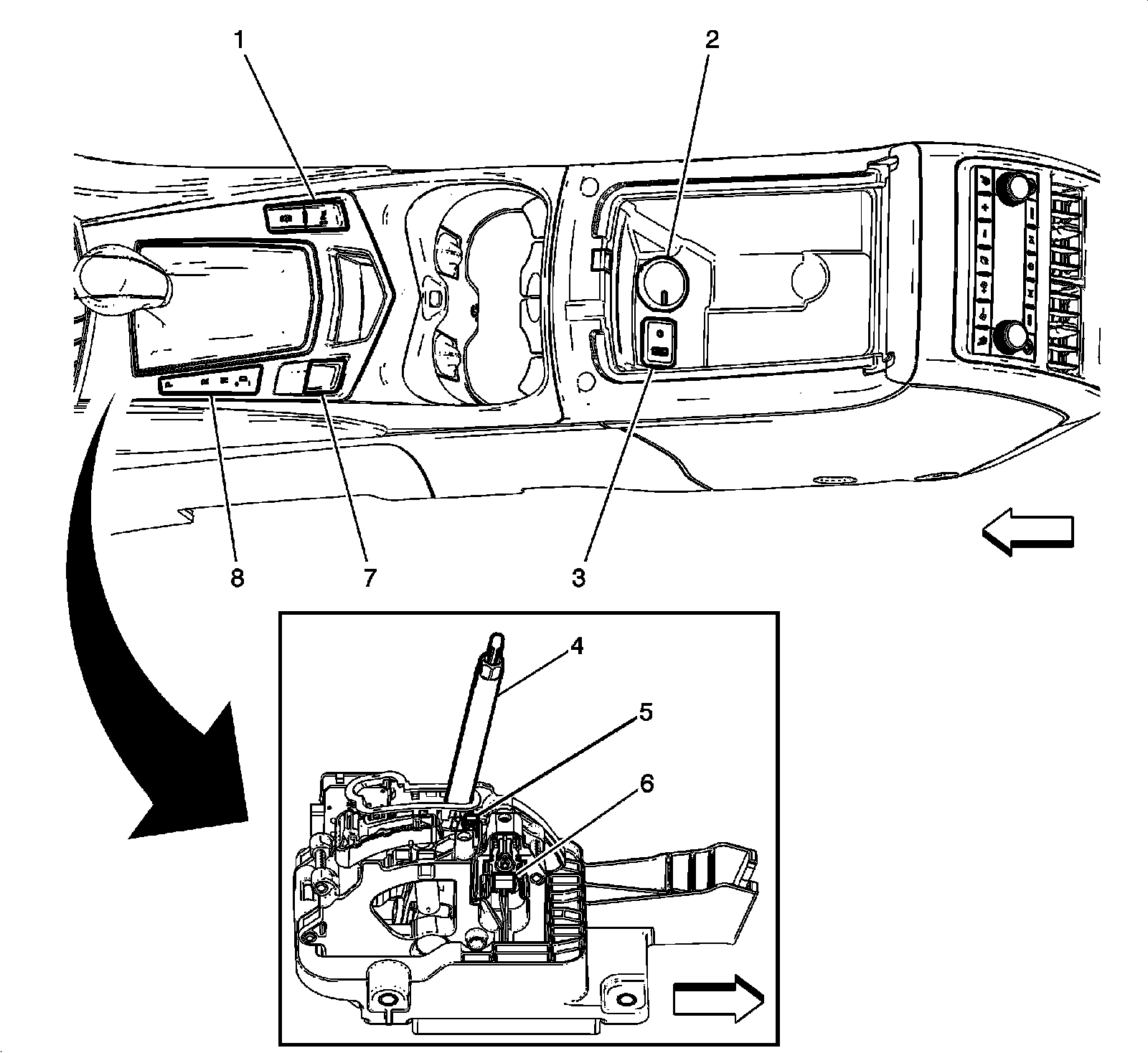

Floor Console Components




1 - S48E Multi-Function Switch - Center Console
2 - X80D Accessory Power Receptacle - Center Console Compartment
3 - X83 Auxiliary Audio Input
4 - S3 Transmission Shift Lever
5 - B81B Park Position Switch
6 - M7 Transmission Shift Lock Control Solenoid Actuator
7 - S91 Park Brake Control Switch
8 - P2 Transmission Shift Lever Position Indicator
