Intake Manifold




Intake manifold bolts

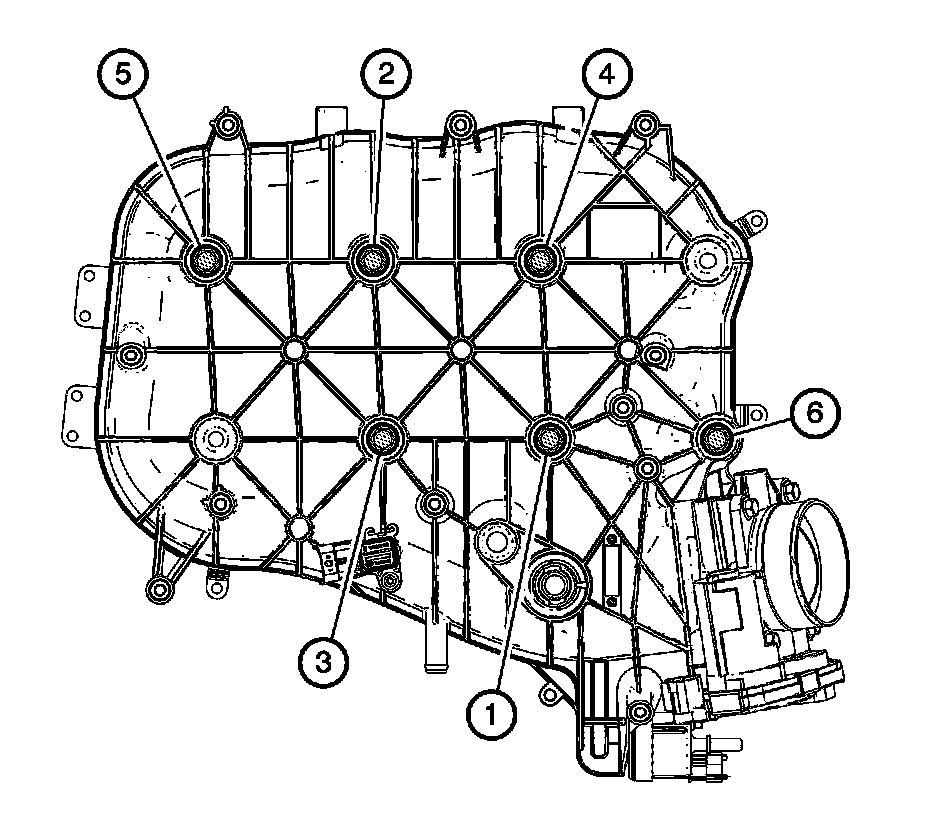

Intake Tightening Sequence (LF1 or LFW):





First pass 25 Nm (18 lb ft)
Second pass 25 Nm (18 lb ft)
