Door Control Module- Passenger Power, Ground and DLC Wiring Schematic

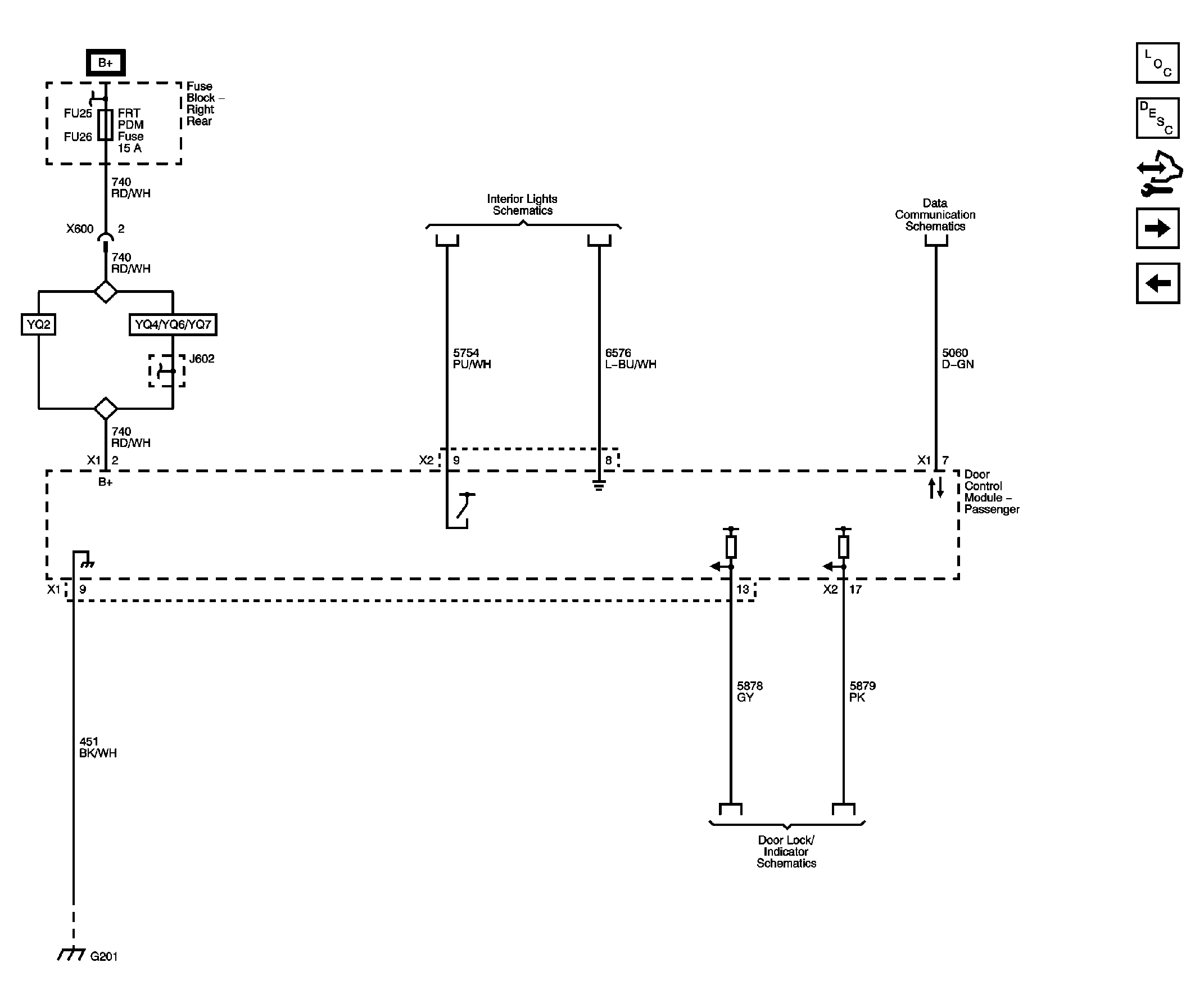

Fig 1: Door Control Module - Passenger Power, Ground and DLC Wiring Schematic
GM2410936Courtesy of GENERAL MOTORS COMPANY
