Side Object Sensor Bracket Replacement

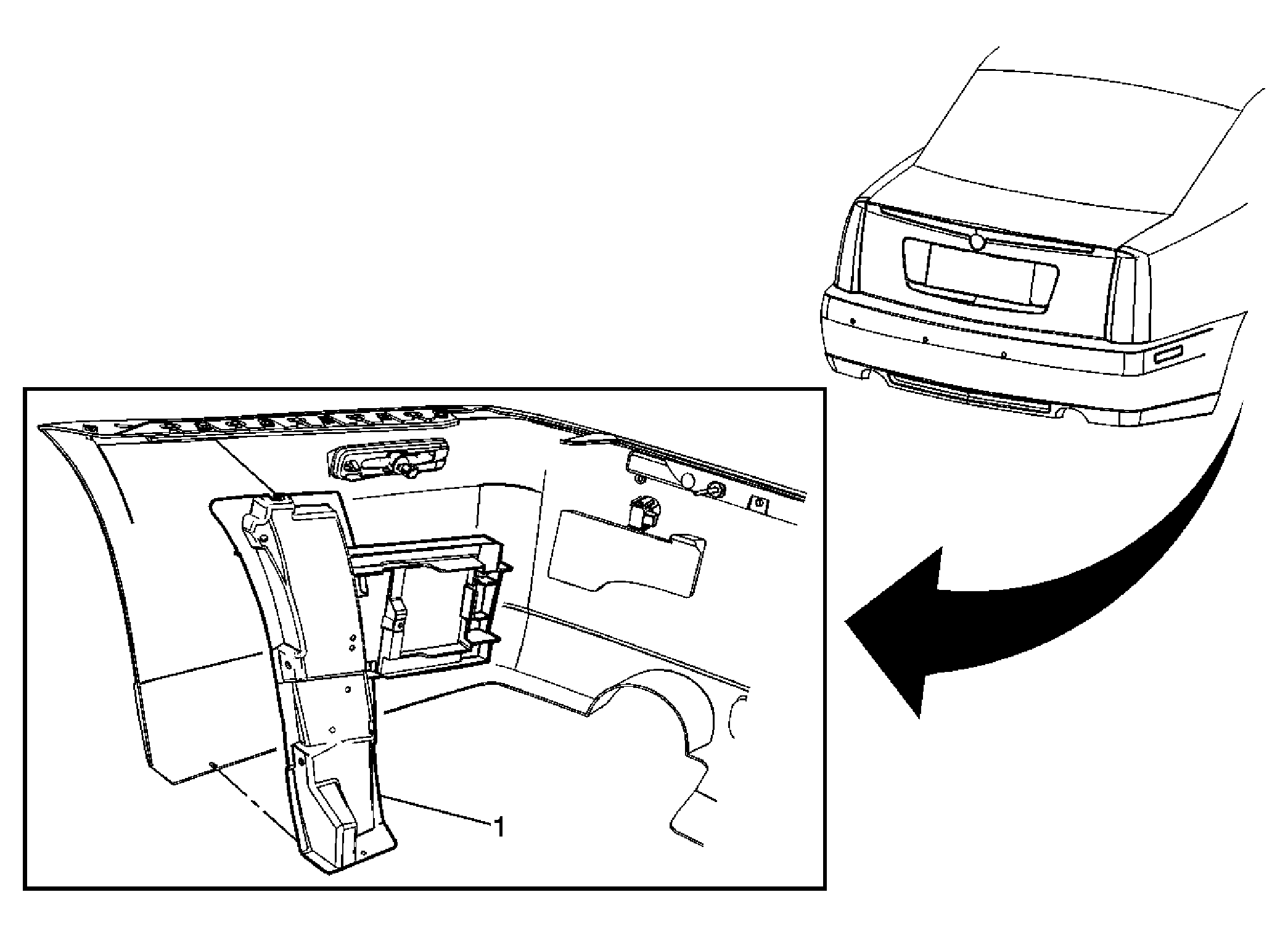

Fig 1: Side Object Sensor Bracket
GM1989689Courtesy of GENERAL MOTORS COMPANY
Side Object Sensor Bracket Replacement

Callout Component Name
Preliminary Procedure
Remove the side object sensor module. Refer to Side Object Sensor Replacement .
1 Side Object Sensor Bracket
  • Disconnect the electrical connectors.
  • Pull forward to remove the bracket.
