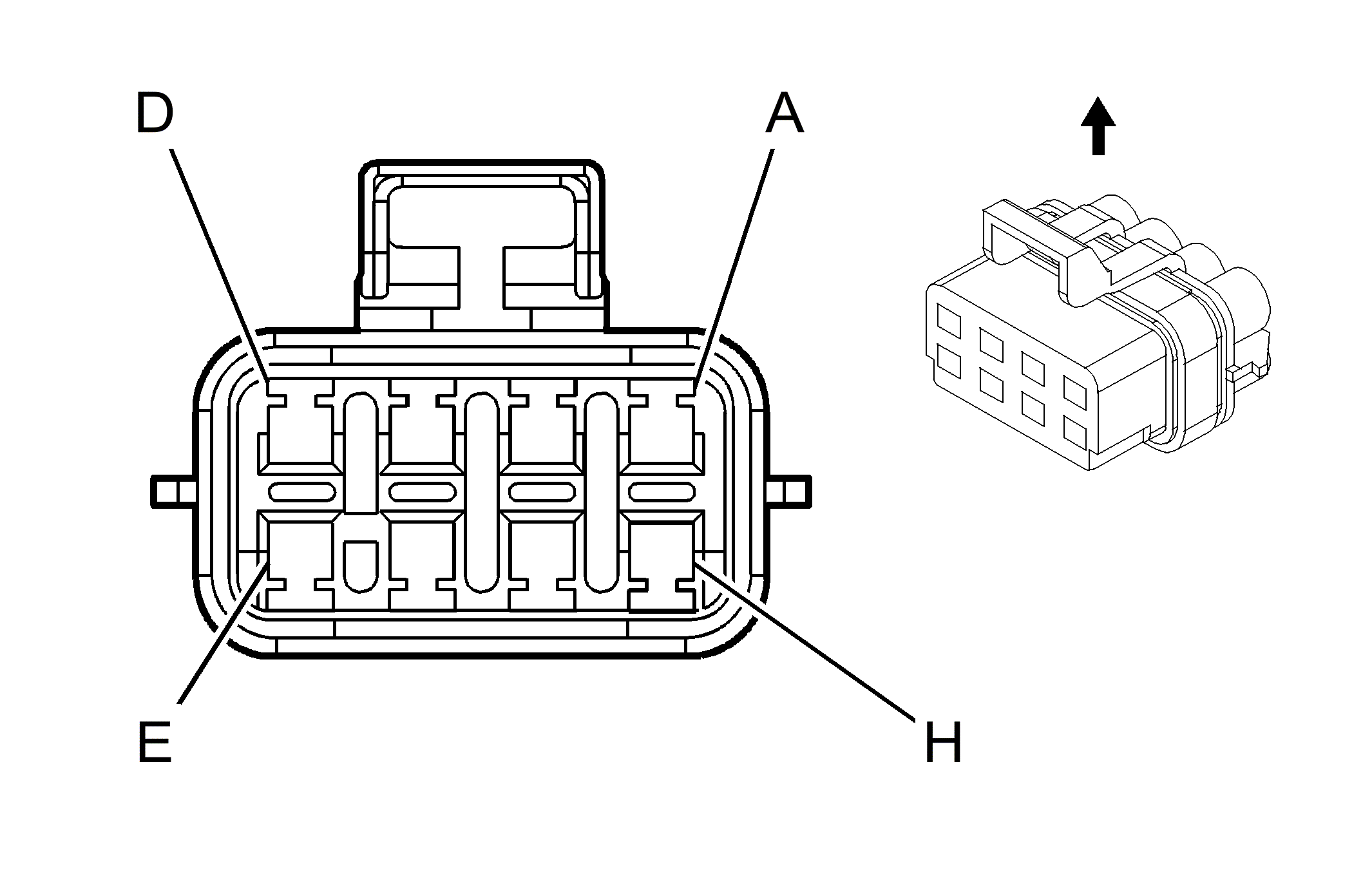

Windshield Wiper/Washer Module
Courtesy of GENERAL MOTORS COMPANY Windshield Wiper/Washer Module
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 TN |
481 |
Rain Sense Signal (1) (CE1) |
| B |
0.35 GY |
478 |
Windshield Wiper Switch Signal (2) |
| C |
0.35 D-BU |
477 |
Windshield Wiper Switch Signal (1) |
| D |
3 BK |
150 |
Ground |
| E |
3 YE |
143 |
Accessory Voltage |
| F |
0.8 OG |
228 |
Windshield Washer Pump Control |
| G |
0.35 PU |
92 |
Windshield Wiper Motor High Speed Control |
| H |
0.35 L-GN |
482 |
Rain Sense Signal (2) (CE1) |
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 12176335
- Service Connector: 15305944
- Description: 8-Way F Metri-Pack 280 Series, Sealed (NA)
|
Terminal Part Information
- Pins: A, B, C, F, G, H
- Terminal/Tray: 12110847/4
- Core/Insulation Crimp: Pins A, B, C, G, H- E/5
- Core/Insulation Crimp: Pin F- C/5
- Pins: D, E
- Terminated Lead: Pending
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12110845/4
- Core/Insulation Crimp: F/5
|
