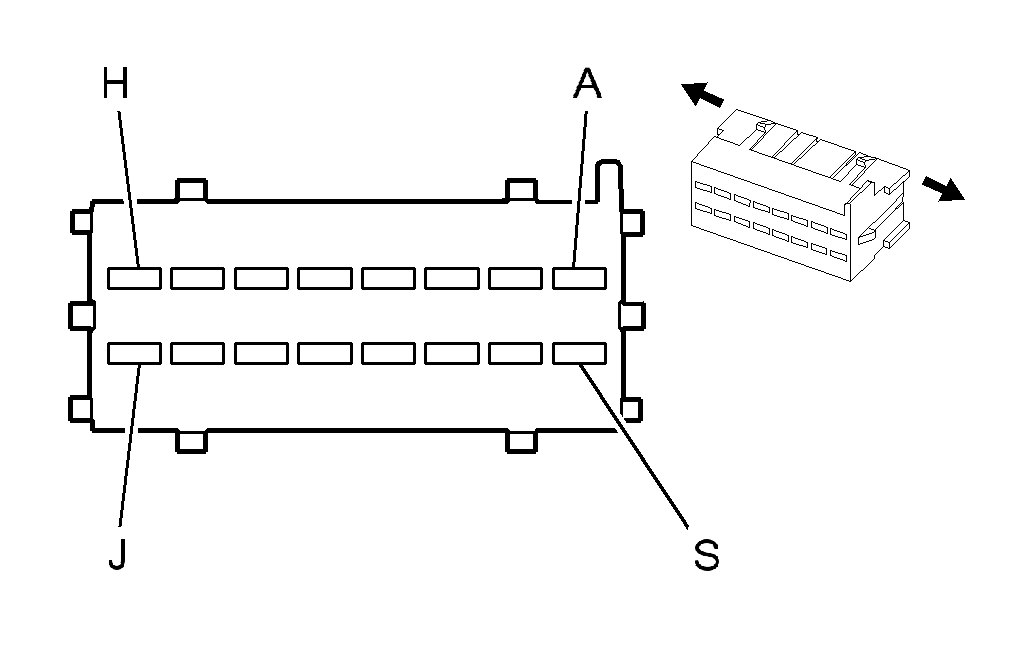

Memory Seat Module (MSM) X2 (A45)
Courtesy of GENERAL MOTORS COMPANY Memory Seat Module (MSM) X2 (A45)
| Pin |
Wire |
Circuit |
Function |
| A |
3 D-GN |
286 |
Driver Power Seat Front Vertical Motor Up Control |
| B |
3 YE |
282 |
Driver Power Seat Rear Vertical Motor Up Control |
| C |
3 L-BU |
283 |
Driver Power Seat Rear Vertical Motor Down Control |
| D |
3 TN |
768 |
Driver Power Seat Lumbar Motor Up Control (AL2) |
| E |
3 PK |
2111 |
Steering Column Tilt Motor Up Control |
| F |
3 D-BU |
611 |
Driver Power Seat Lumbar Motor Forward Control (AL2) |
| G |
3 L-GN |
276 |
Driver Power Seat Recline Motor Forward Control |
| H |
3 L-BU |
277 |
Driver Power Seat Recline Motor Rearward Control |
| J |
3 TN |
285 |
Driver Power Seat Horizontal Motor Forward Control |
| K |
3 L-GN |
284 |
Driver Power Seat Horizontal Motor Rearward Control |
| L-M |
- |
- |
Not Used |
| N |
3 PK |
610 |
Driver Power Seat Lumbar Motor Rearward Control (AL2) |
| P |
- |
- |
Not Used |
| R |
3 OG |
2098 |
Steering Column Telescope Motor Forward |
| S |
3 D-BU |
287 |
Driver Power Seat Front Vertical Motor Down Control |
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 12129432
- Service Connector: 12129432
- Description: 16-Way F Metri-Pack 280 Series, ACT (GY)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12186456/5
- Core/Insulation Crimp: F/G
|
