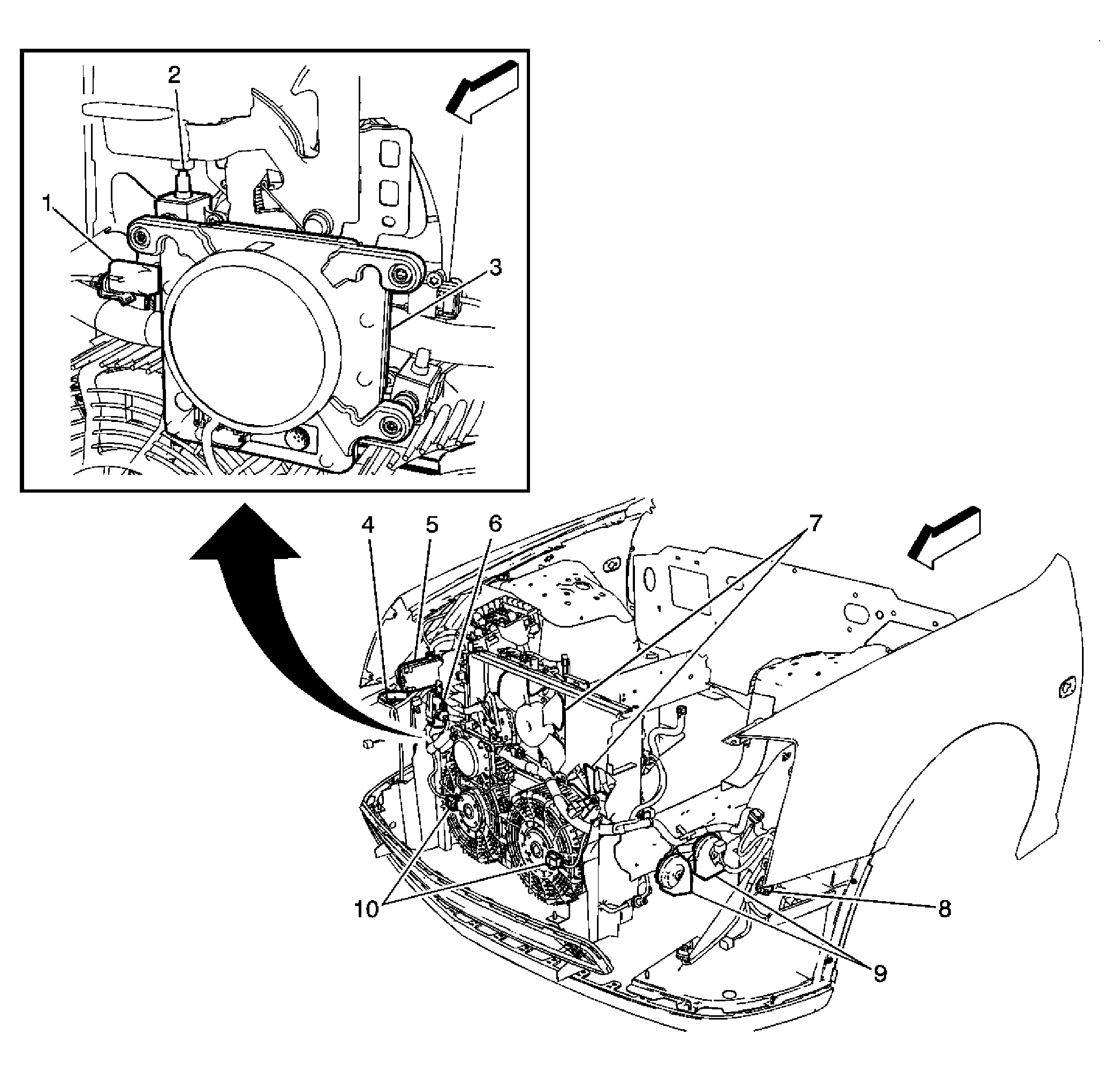

Forward Lamp Harness Components
Forward Lamp Harness Components
| Component Name | Callout |
|---|---|
| Ambient Air Temperature Sensor | 1 |
| Hood Ajar Switch | 2 |
| Distance Sensing Cruise Control (DSCC) Module (K59) | 3 |
| Tire Pressure Receiver - Right Front (UH3) | 4 |
| Headlamp Leveling Module (TR7) | 5 |
| Air Quality Sensor (K14) | 6 |
| Engine Cooling Fans-Standard | 7 |
| Tire Pressure Receiver - Left Front (UH3) | 8 |
| Horn Assembly | 9 |
| Engine Cooling Fans-Heavy Duty | 10 |
