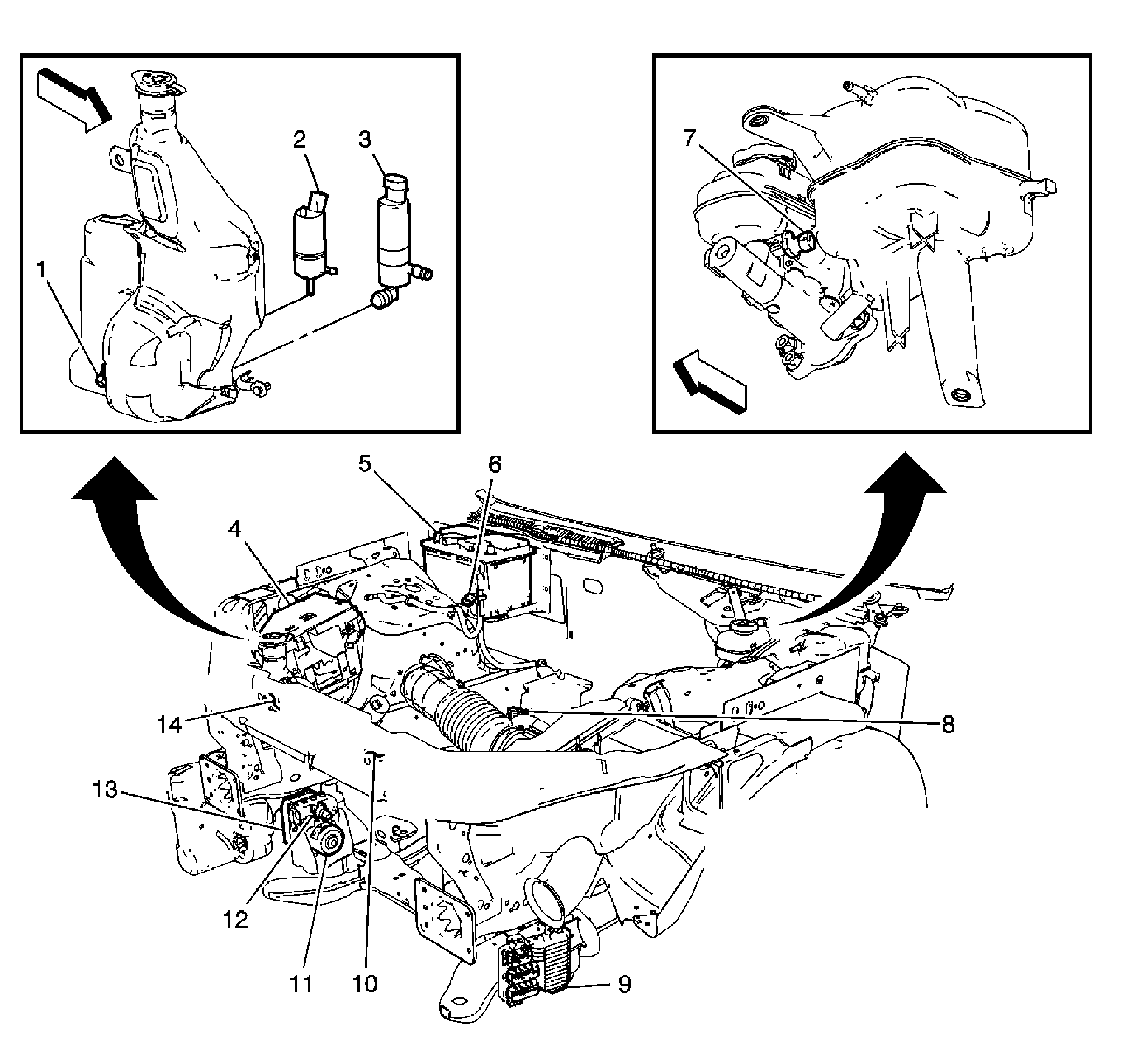

Front Engine Compartment Components 1 of 2
Front Engine Compartment Components 1 of 2
| Component Name | Callout |
|---|---|
| Windshield Washer Fluid Level Switch | 1 |
| Headlamp Washer Fluid Pump (CE4) | 2 |
| Windshield Washer Fluid Pump | 3 |
| Fuse Block-Underhood | 4 |
| Battery | 5 |
| Battery Current Sensor | 6 |
| Brake Fluid Level Switch | 7 |
| Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor | 8 |
| Engine Control Module (ECM) (LH2) | 9 |
| Inflatable Restraint Front End Sensor - Left | 10 |
| Electronic Brake Control Module (EBCM) | 11 |
| Brake Fluid Pressure Sensor (w/o JL7) | 12 |
| Brake Pressure Modulator Valve (BPMV) | 13 |
| Inflatable Restraint Front End Sensor - Right | 14 |
