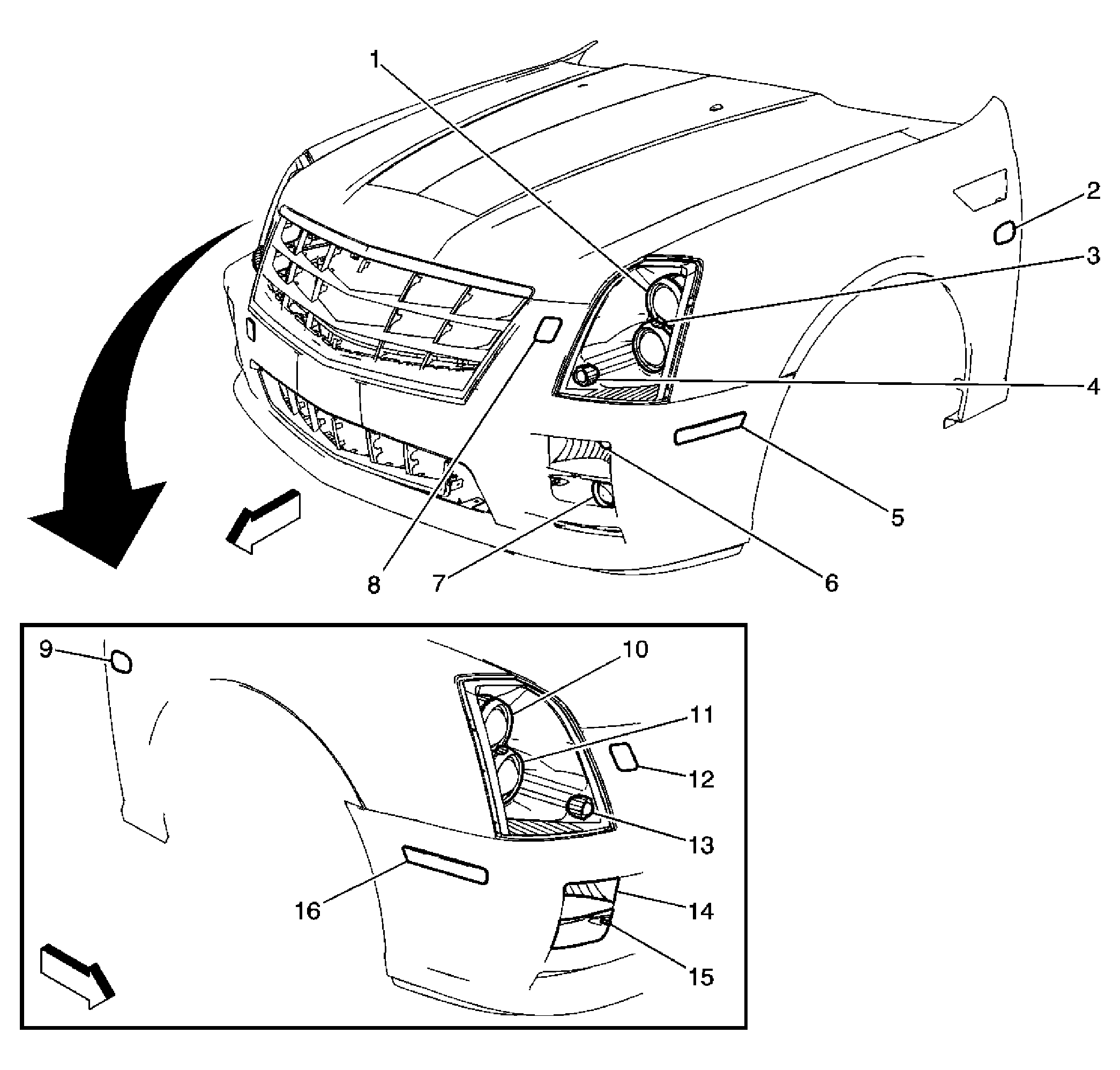

Front Fascia
Front Fascia
| Component Name | Callout |
|---|---|
| Headlamp- Left Low Beam (without TT6/TT7/TT8) | 1 |
| Repeater Lamp- Left Front | 2 |
| Headlamp- Left High Beam | 3 |
| Park Lamp- Left Front | 4 |
| Marker Lamp- Left Front | 5 |
| Turn Signal Lamp- Left Front | 6 |
| Fog Lamp- Left Front | 7 |
| Heated Washer Nozzle- Left (XA7) | 8 |
| Repeater Lamp- Right Front | 9 |
| Headlamp- Right Low Beam (without TT6/TT7/TT8) | 10 |
| Headlamp- Right High Beam | 11 |
| Heated Washer Nozzle- Left (XA7) | 12 |
| Park Lamp- Right Front | 13 |
| Turn Signal Lamp- Right Front | 14 |
| Fog Lamp- Right Front | 15 |
| Marker Lamp- Right Front | 16 |
