Instrument Panel and Console 2 of 2

Instrument Panel and Console 2 of 2

Component Name Callout
Mode Actuator-Auxiliary 1
Hazard Warning Switch 2
Air Temperature Sensor-Inside 3
Ignition Mode Switch 4
Traction Control Switch (TCS) 5
Audio/Video Adapter (YQ4/YQ6/YQ7) 6
Accessory Power Outlet - Center Console Compartment 7
Keyless Entry Antenna 8

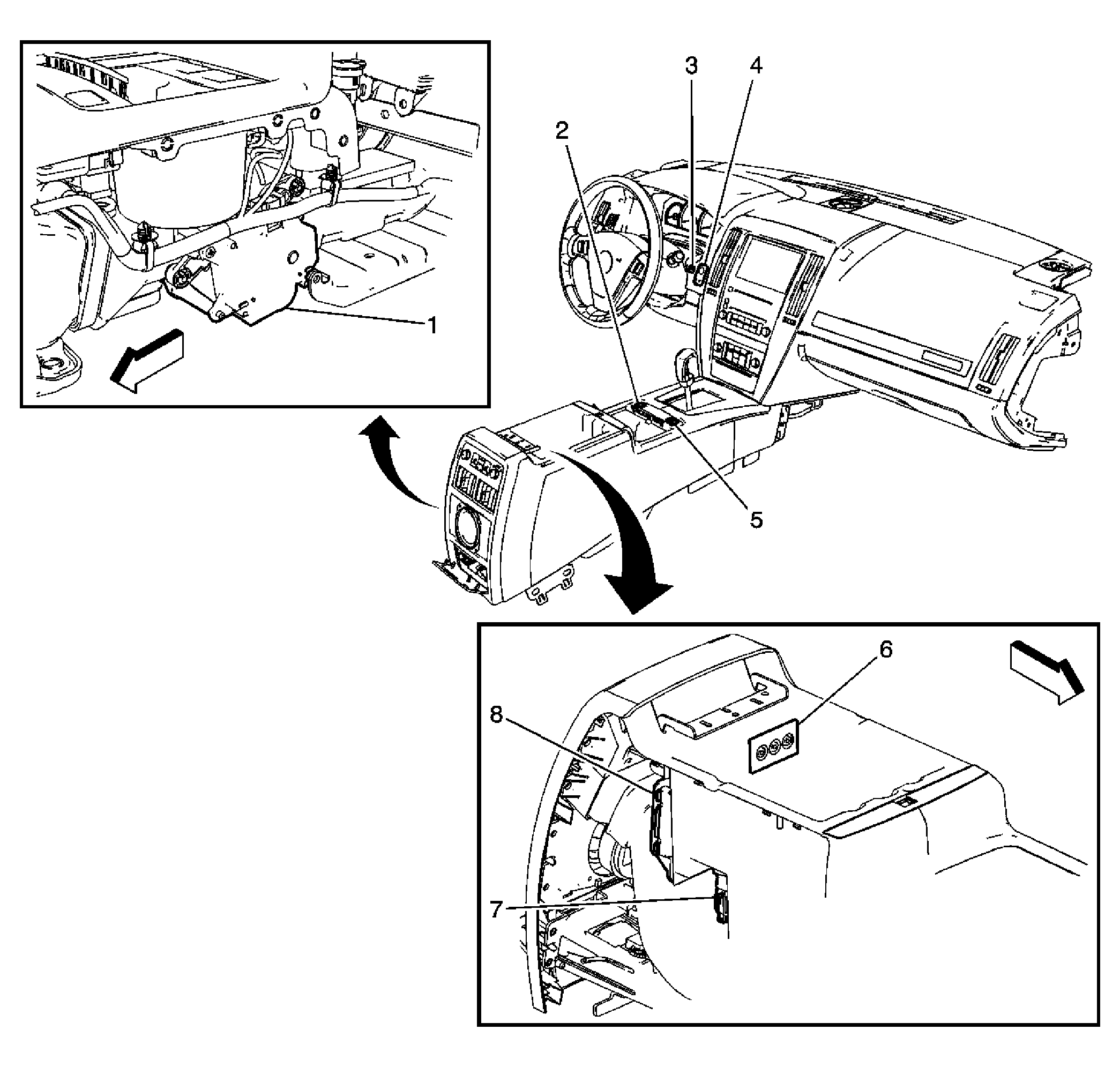

Fig 1: Instrument Panel and Console Components (2 Of 2)
GM1971769Courtesy of GENERAL MOTORS COMPANY
