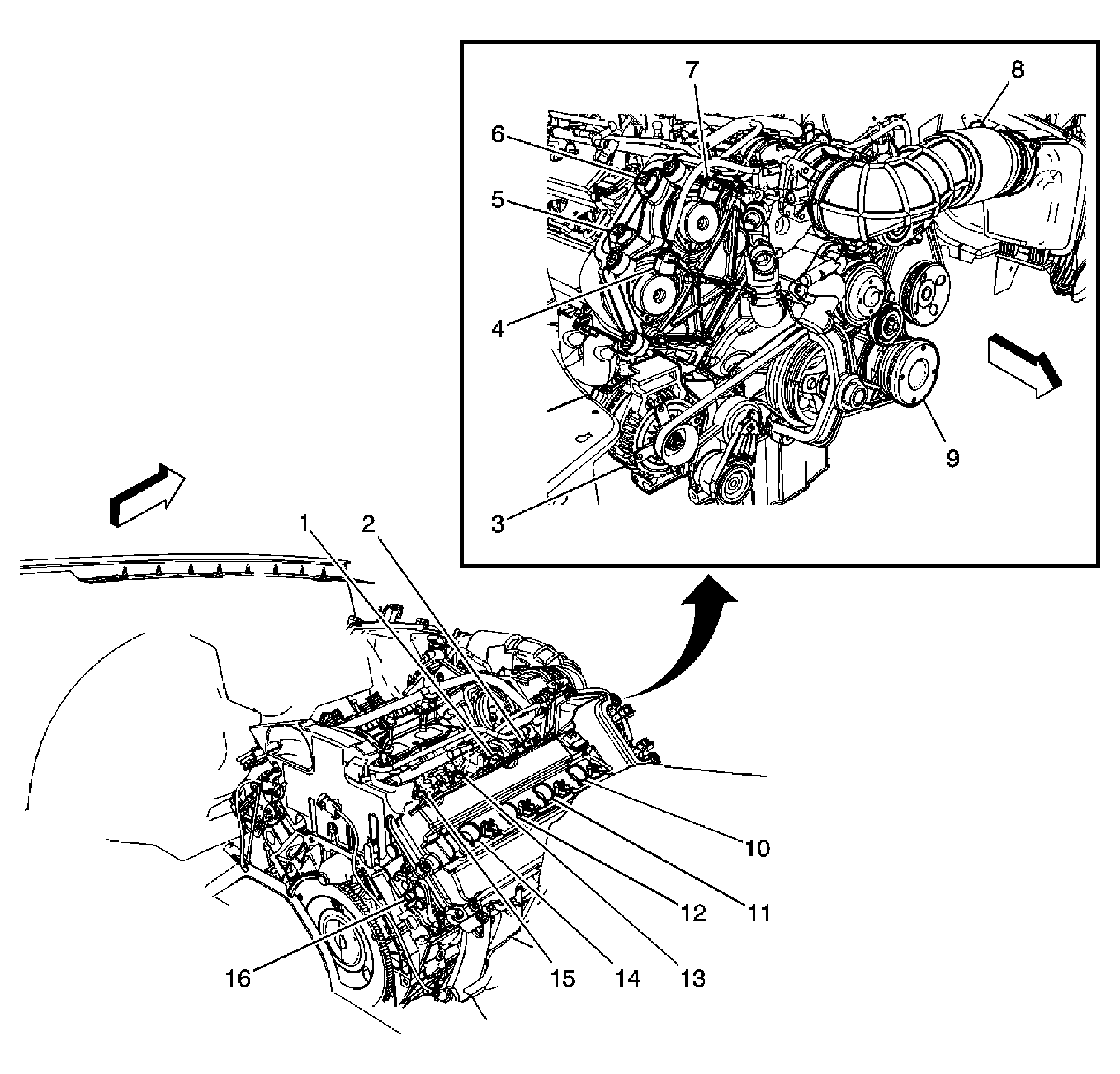

Engine Components 1 of 2 (LH2)
Engine Components 1 of 2 (LH2)
| Component Name | Callout |
|---|---|
| Fuel Injector 3 | 1 |
| Fuel Injector 1 | 2 |
| Generator | 3 |
| Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust | 4 |
| Camshaft Position (CMP) Sensor - Bank 1 Exhaust | 5 |
| Camshaft Position (CMP) Sensor - Bank 1 Intake | 6 |
| Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake | 7 |
| Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor | 8 |
| A/C Compressor Clutch | 9 |
| Ignition Coil 1 | 10 |
| Ignition Coil 3 | 11 |
| Ignition Coil 5 | 12 |
| Fuel Injector 5 | 13 |
| Ignition Coil 7 | 14 |
| Fuel Injector 7 | 15 |
| Engine Coolant Temperature (ECT) Sensor | 16 |
