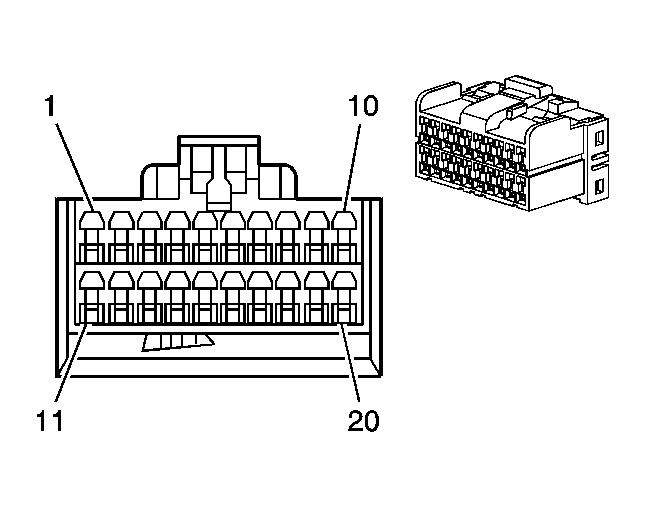

Door Control Module - Driver X2
Courtesy of GENERAL MOTORS COMPANY Door Control Module - Driver X2
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.35 GY/BK |
745 |
Left Front Door Ajar Switch Signal |
| 3 |
- |
- |
Not Used |
| 4 |
0.35 L-GN |
262 |
Driver Door Key Switch Signal |
| 5-6 |
- |
- |
Not Used |
| 7 |
0.35 YE |
1491 |
Backlight Lamp Control |
| 8 |
0.35 L-BU/WH |
6576 |
Driver Door Courtesy Lamp Control Low |
| 9 |
0.35 PU/WH |
5754 |
Amplifier Powered Woofer Control (1) |
| 10 |
0.35 PK |
1691 |
Low Reference |
| 11 |
- |
- |
Not Used |
| 12 |
0.35 TN |
126 |
Left Front Door Open Switch Signal |
| 13 |
- |
- |
Not Used |
| 14 |
0.35 YE/BK |
6859 |
Power Window Status |
| 15-16 |
- |
- |
Not Used |
| 17 |
0.35 D-BU |
5882 |
Left Front Door Handle Switch Signal (2) |
| 18-19 |
- |
- |
Not Used |
| 20 |
0.35 GY |
1690 |
Automatic Day/Night Mirror Signal |
Connector Part Information
- Harness Type: Left Front Door
- OEM Connector: 174047-2
- Service Connector: 12162820
- Description: 20-Way F 040 Multilock Series (BK)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-16 (L-GN)
- Terminal/Tray: 173681-2/17
- Core/Insulation Crimp: E/4
|
