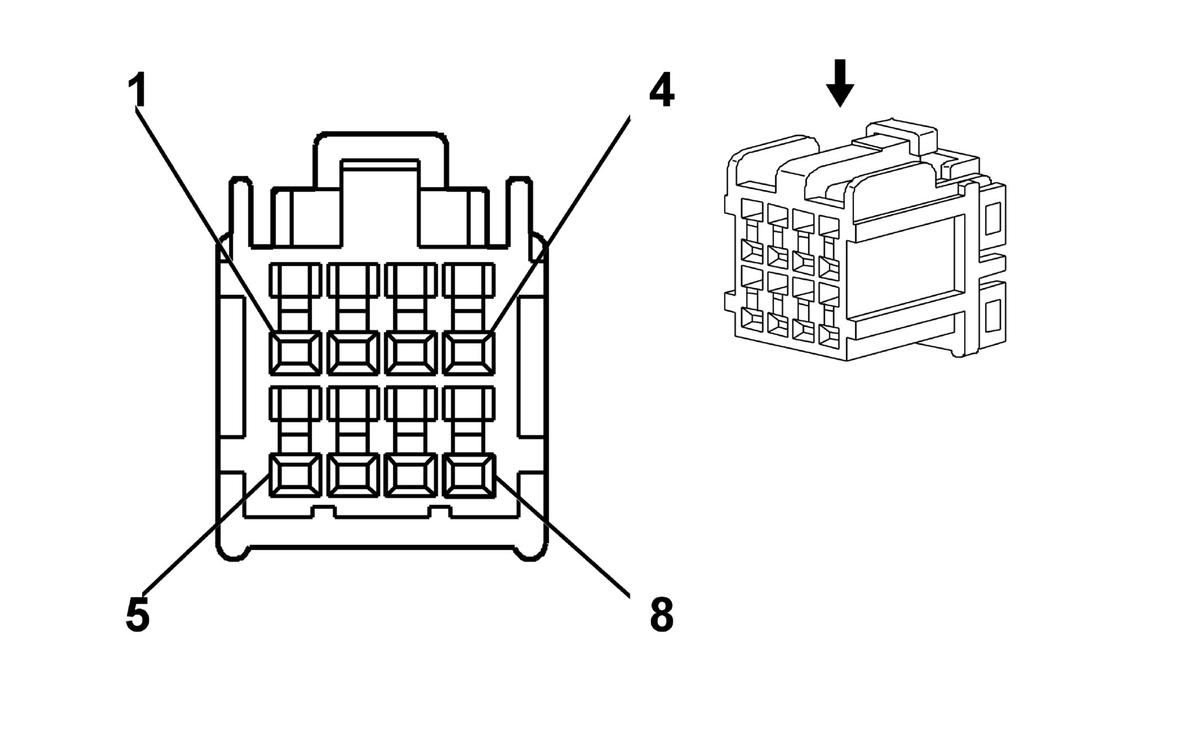

Door Control Module - Driver X3
Courtesy of GENERAL MOTORS COMPANY Door Control Module - Driver X3
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 BN/BK |
1691 |
Low Reference |
| 2 |
0.35 D-GN/BK |
784 |
Left Mirror Vertical Position Sensor Signal |
| 3 |
0.35 L-BU/BK |
786 |
Left Mirror Horizontal Position Sensor Signal |
| 4 |
0.35 GY/BK |
5853 |
LED Signal (UFT) |
| 5 |
0.35 BN |
1690 |
Automatic Day/Night Mirror Signal |
| 6 |
0.35 PU/BK |
673 |
Low Reference |
| 7 |
0.35 RD/BK |
672 |
Left Outside Rearview Mirror Position Sensor 5-Volt Reference |
| 8 |
- |
- |
Not Used |
Connector Part Information
- Harness Type: Outside Rearview Mirror - Driver
- OEM Connector: 174044-2
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 040 Multilock Series (BK)
|
Terminal Part Information
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
