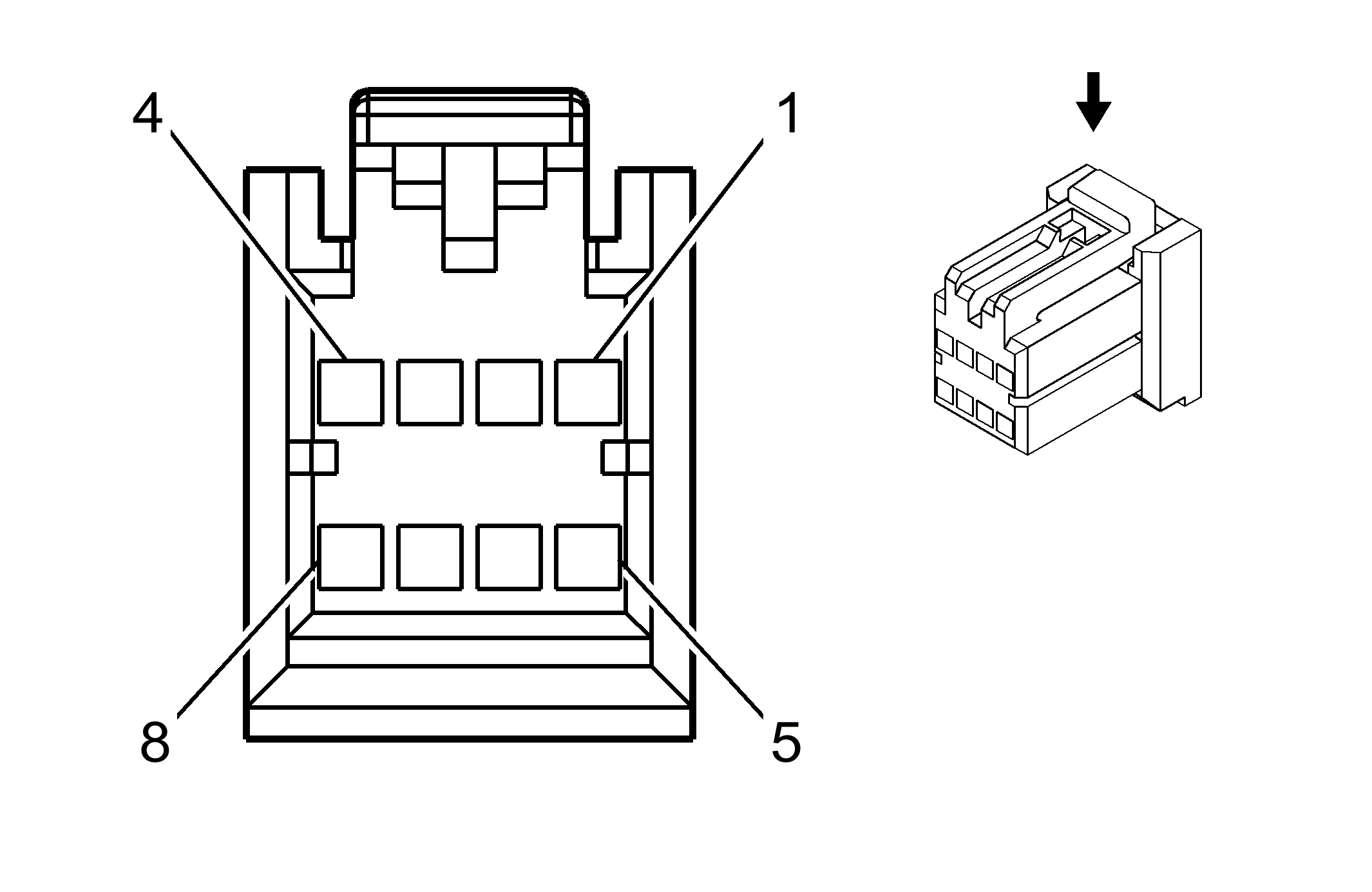

Door Control Module- Driver X4
Courtesy of GENERAL MOTORS COMPANY Door Control Module- Driver X4
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 L-GN |
89 |
Left Mirror Motor Down Control |
| 2 |
0.35 YE |
88 |
Left Mirror Motor Up Control |
| 3 |
0.35 YE |
190 |
Left Folding Mirror Motor Extend Control (DL7) |
| 4 |
0.35 L-BU |
191 |
Left Folding Mirror Motor Retract Control (DL7) |
| 5 |
0.35 D-BU |
82 |
Left Mirror Motor Left Control |
| 6 |
0.35 BK |
606 |
Left Mirror Heating Element Supply Voltage |
| 7 |
0.35 GY |
5855 |
LED Signal (UFT) |
| 8 |
0.35 BK |
627 |
Low Reference |
Connector Part Information
- Harness Type: Outside Rearview Mirror - Driver
- OEM Connector: 175964-2
- Service Connector: 15306185
- Description: 8-Way F 040 Multilock Series (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- 15306185
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
