Door Control Module- Passenger X4

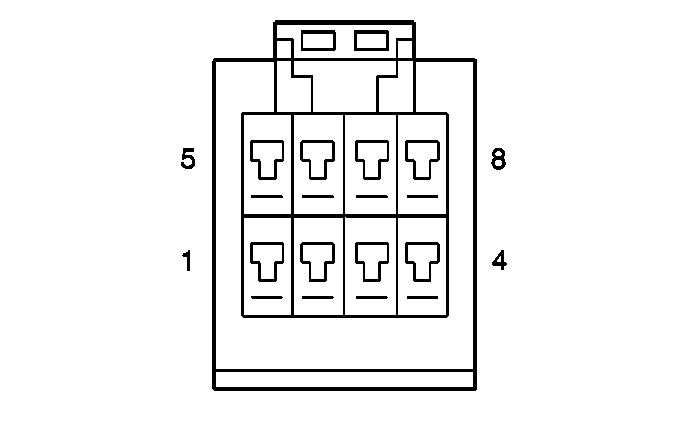

Courtesy of GENERAL MOTORS COMPANY Door Control Module- Passenger X4
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 L-GN |
889 |
Right Mirror Motor Down Control |
| 2 |
0.35 YE |
1498 |
Right Mirror Motor Up Control |
| 3 |
0.35 YE |
5004 |
Right Folding Mirror Motor Extend Control (DL7) |
| 4 |
0.35 L-BU |
5023 |
Right Folding Mirror Motor Retract Control (DL7) |
| 5 |
0.35 L-BU |
90 |
Right Mirror Motor Left Control |
| 6 |
0.35 BK |
607 |
Right Mirror Heating Element Supply Voltage |
| 7 |
0.35 GY |
5862 |
LED Signal (UFT) |
| 8 |
0.35 BK |
628 |
Low Reference |
Connector Part Information
- Harness Type: Outside Rearview Mirror - Passenger
- OEM Connector: 1759642
- Service Connector: Service by Harness- See Part Catalog
- Description: 8-Way (BK)
|
Terminal Part Information
- Terminated Lead: Service by Harness- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
