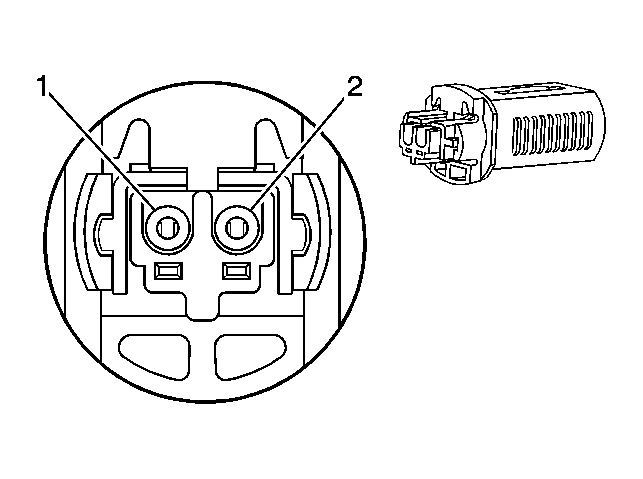

Inflatable Restraint Roof Rail Module- Left
Courtesy of GENERAL MOTORS COMPANY Inflatable Restraint Roof Rail Module- Left
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 PU/WH |
5019 |
Left Front Head Curtain Module High Control |
| 2 |
0.5 PK |
5020 |
Left Front Head Curtain Module Low Control |
Connector Part Information
- Harness Type: Body
- OEM Connector: 252912053
- Service Connector: 88988280
- Description: 2-Way F (YE/PU)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
