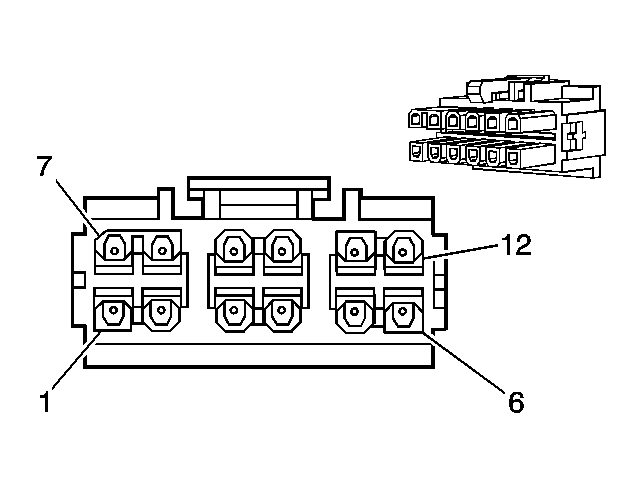

Seat Climate Control Module X2 (KA1 or KB6)
Courtesy of GENERAL MOTORS COMPANY Seat Climate Control Module X2 (KA1 or KB6)
| Pin |
Wire |
Circuit |
Function |
| 1-2 |
- |
- |
Not Used |
| 3 |
0.35 BN |
41 |
Run Ignition 3 Voltage |
| 4 |
- |
- |
Not Used |
| 5 |
0.35 PK |
2435 |
Low Reference |
| 6 |
0.8 BK |
650 |
Ground |
| 7 |
0.35 GY |
791 |
PWM Serial Data |
| 8 |
0.35 WH |
790 |
PWM Serial Data |
| 9 |
0.35 WH |
5915 |
Passenger Seat Fan Speed Control (KB6) |
| 10 |
0.35 YE/BK |
2079 |
Driver Heated Seat NTC Signal |
| 11 |
0.35 GY |
2434 |
Passenger Heated Seat NTC Signal |
| 12 |
0.35 OG |
5919 |
Driver Seat Fan Speed Control (KB6) |
Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 15-97-5121
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way F Mini-Fit Series (BK)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-560
- Diagnostic Test Probe: J-35616-12 (BU)
- Terminal/Tray: 39-00-0038/23
- Core/Insulation Crimp: K/K
|
