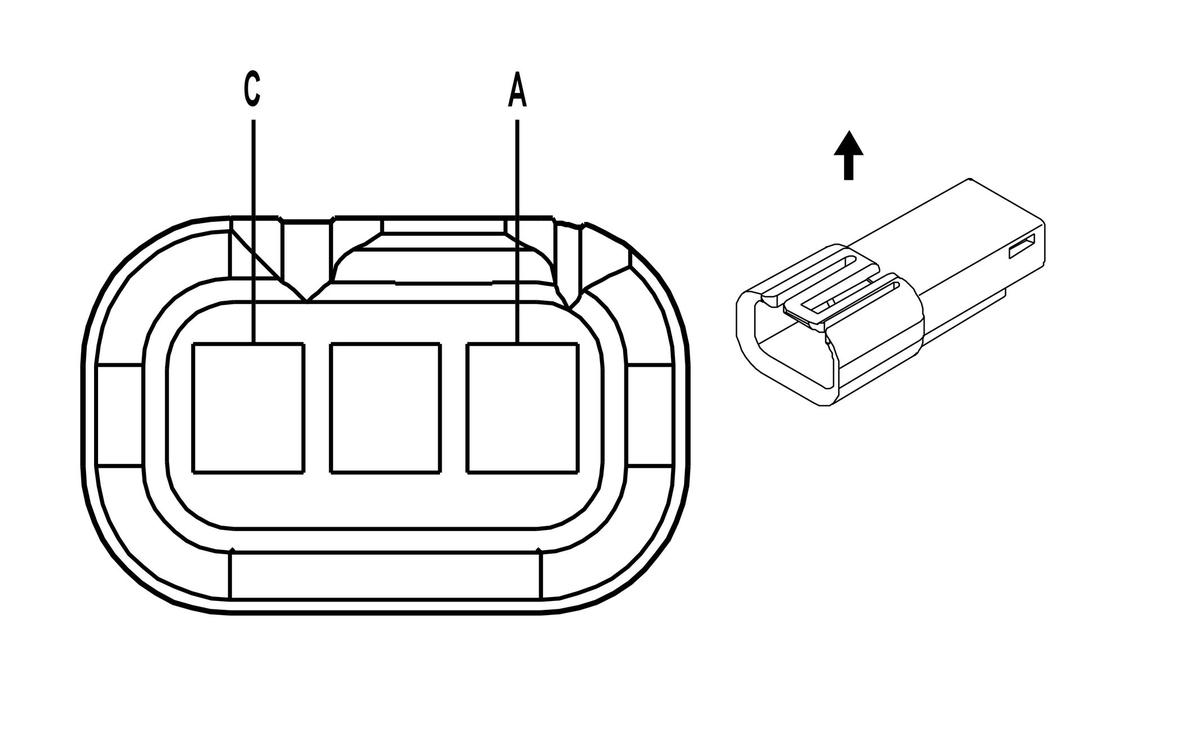

Steering Column Telescope Position Sensor (A45)
Courtesy of GENERAL MOTORS COMPANY Steering Column Telescope Position Sensor (A45)
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 TN |
782 |
Low Reference |
| B |
0.35 GY |
788 |
Memory Mirror Position Sensor 5-Volt Reference |
| C |
0.35 OG |
2153 |
Steering Column Telescope Motor Signal |
Connector Part Information
- Harness Type: Steering Column
- OEM Connector: 12047782
- Service Connector: 12117371
- Description: 3-Way M Metri-Pack 150 Series (BK)
|
Terminal Part Information
- Terminated Lead: 13505668
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 12047581/2
- Core/Insulation Crimp: E/C
|
