Steering Wheel Secondary/Configurable Control Wiring Schematic

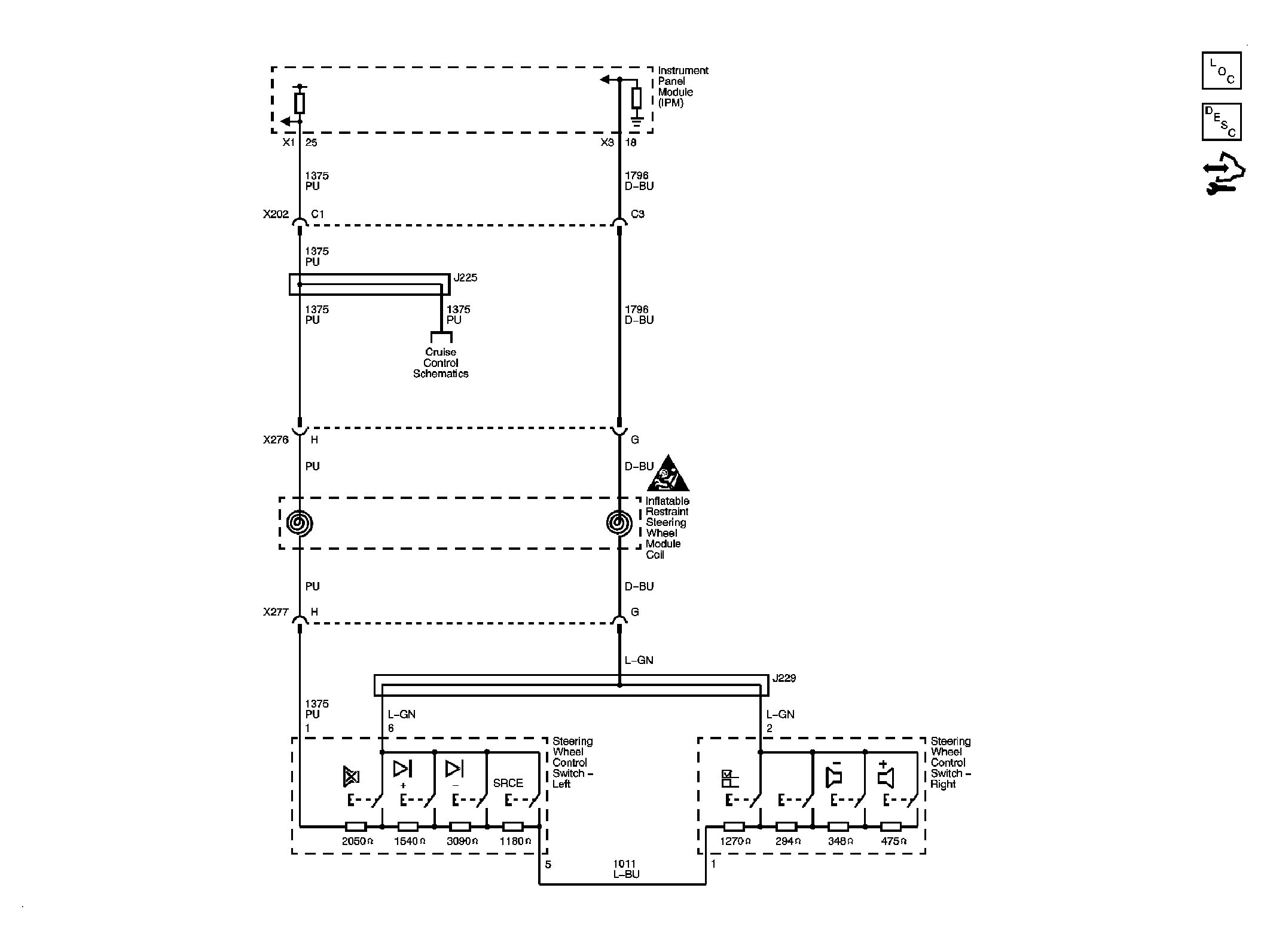

Fig 1: Steering Wheel Secondary/Configurable Control Wiring Schematic
GM2411168Courtesy of GENERAL MOTORS COMPANY
