Installation Procedure

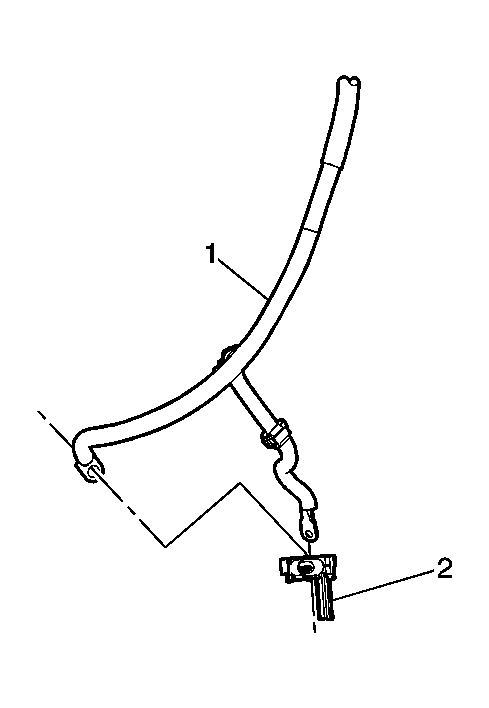

Fig 1: Negative Battery Cable & Battery Current Sensor

Courtesy of GENERAL MOTORS COMPANY

IMPORTANT:

Ensure that the tape tab is pointing away from the battery prior to installation.

Squeeze the negative battery cable branches together, while sliding the NEW battery current sensor (2) up onto the negative battery cable (1).
Using NEW tie straps and electrical tape, attach the battery current sensor to the negative battery cable.
Install the negative battery cable. Refer to Battery Negative Cable Replacement (LLT With Side Post) , Battery Negative Cable Replacement (LLT With Top Post) .
