Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
IPM Input and Outputs (1 of 3)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
IPM Input and Outputs (1 of 3)

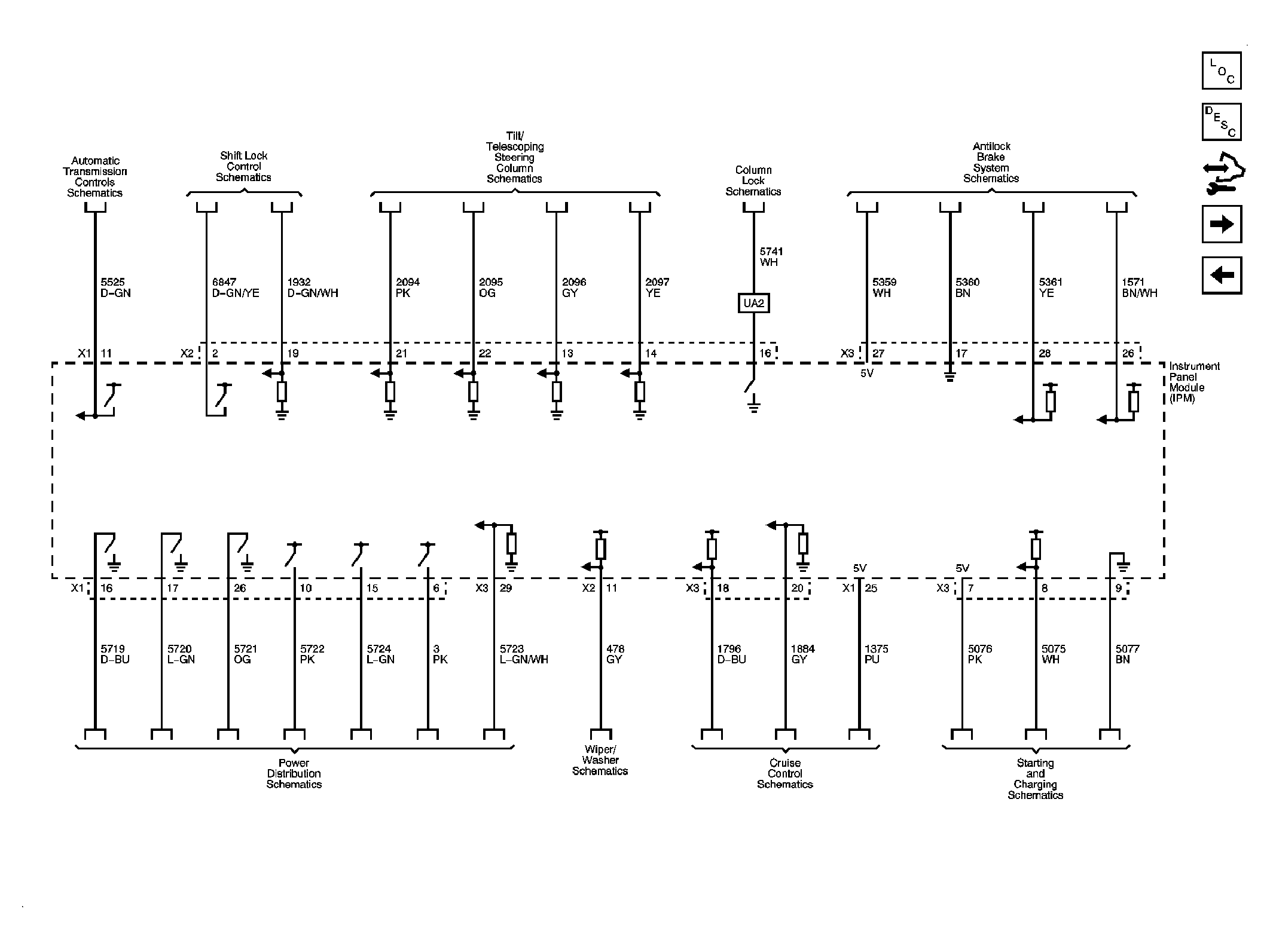

Fig 1: IPM Input and Outputs Wiring Schematic (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
